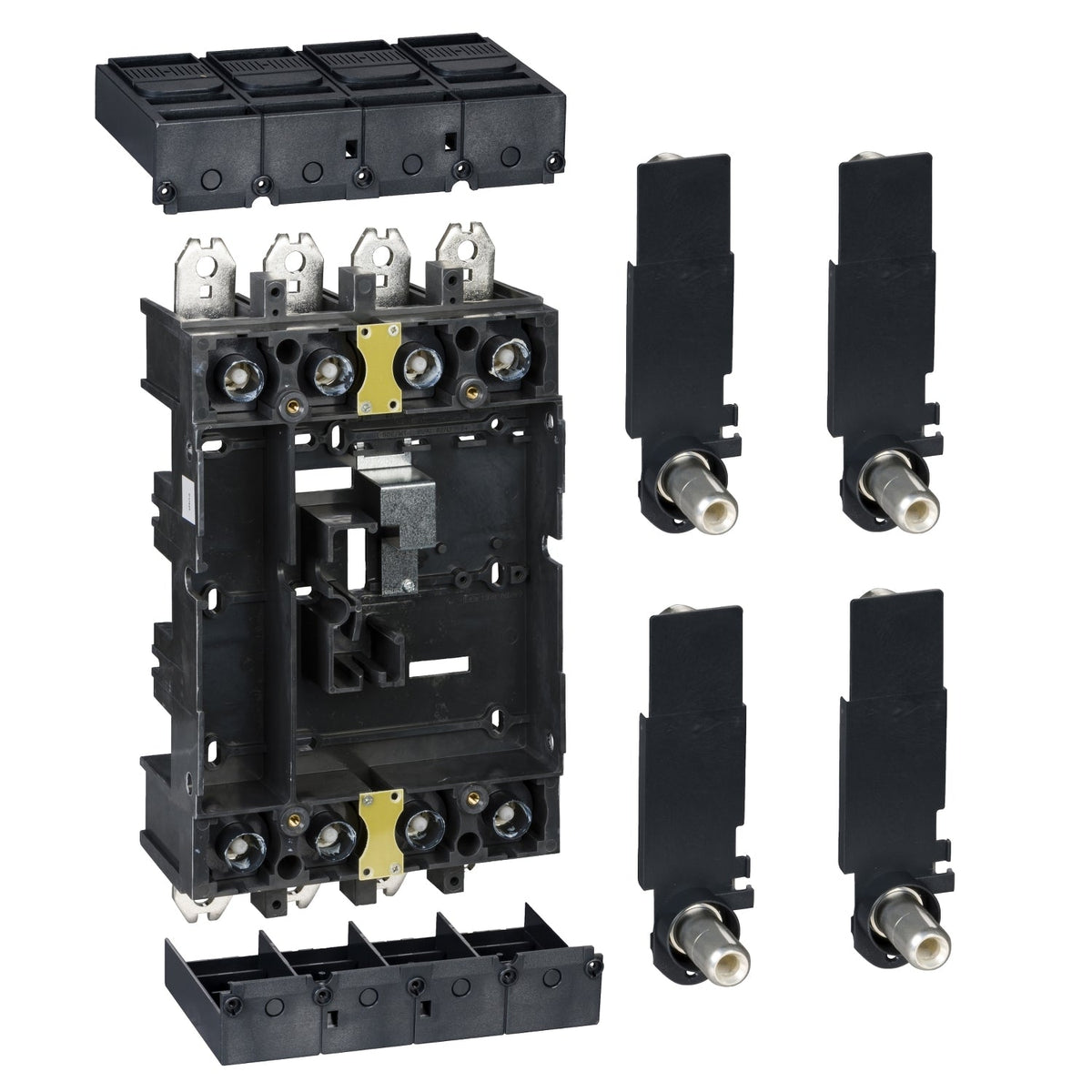

The Schneider Electric LV432539 is a 4-pole plug-in kit rated 630 A for fixed ComPacT NSX400 and NSX630 circuit breakers. It converts a fixed breaker into a plug-in configuration that can be installed or extracted without connecting or disconnecting the power circuit. The kit bundles a plug-in base, power connections, two short terminal shields and a safety trip interlock.
Specify this 4P kit for 4-pole fixed NSX400/630 breakers; choose the 3P kit (LV432538) instead for 3-pole devices. The included safety trip interlock (LV432520) is mandatory and already part of the set, so no separate interlock needs to be ordered alongside the kit.
| Product or component type | Plug-in kit |
|---|---|
| Accessory / separate part category | Mounting accessory |
| Range compatibility | ComPact ComPact NSX400, ComPact ComPact NSX630, ComPact Compact NSX400 DC, ComPact Compact NSX630 DC |
| Poles description | 4P |
| Mounting mode | Plug-in |
|---|---|
| [In] rated current | 630 A |
| Earth-leakage protection | Without |
| Warranty (in months) | 18 |
|---|
| Part number | LV432539 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 15.0 cm |
| Package 1 Width | 30.0 cm |
| Package 1 Length | 40.0 cm |
| Package 1 Weight | 4.911 kg |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 2 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 40.0 cm |
| Package 2 Length | 60.0 cm |
| Package 2 Weight | 10.766 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 8 |
| Package 3 Height | 50.0 cm |
| Package 3 Width | 80.0 cm |
| Package 3 Length | 120.0 cm |
| Package 3 Weight | 55.064 kg |
| Shipping weight | 4.911 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for LV432539 is 853890.
LV432539 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
