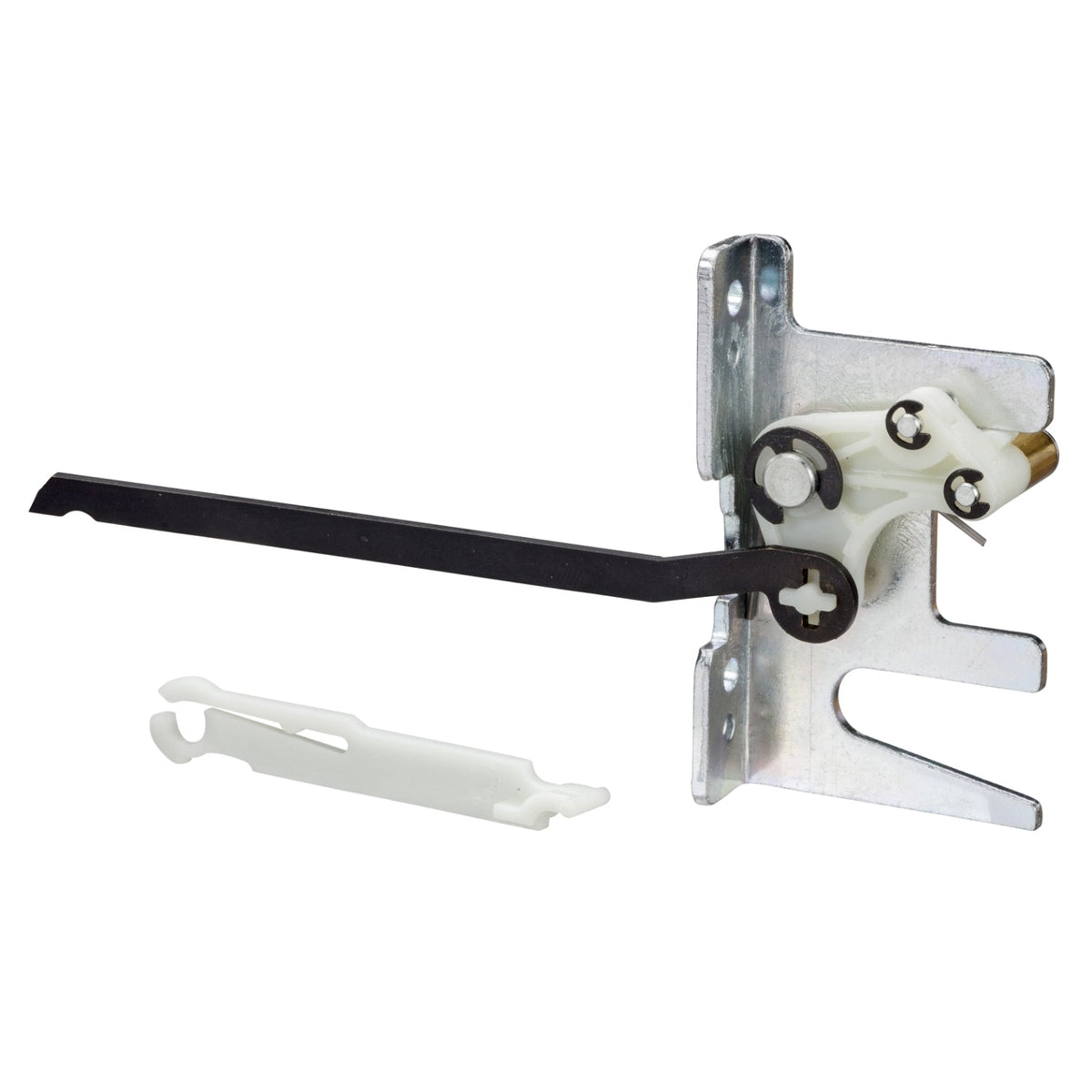

The Schneider Electric LV432520 is a safety trip interlock for 3 or 4-pole ComPacT NSX400 and NSX630 plug-in breakers. It forces automatic tripping before the device is engaged or withdrawn, so power circuits can never be connected or disconnected under load. The interlock is installed directly on the breaker and is a mandatory component of the NSX400-630 plug-in configuration.
This interlock is a required part of the NSX400-630 plug-in kit (LV432538 3P / LV432539 4P); it must be installed on the device whenever a fixed breaker is converted to plug-in configuration. For the smaller NSX100-250 frame, use LV429270 instead, since the two interlocks are frame-specific and not interchangeable between breaker sizes or poles.
| Range compatibility | ComPact ComPact NSX100, ComPact ComPact NSX160, ComPact ComPact NSX250, ComPact Compact NSX100 DC, ComPact Compact NSX160 DC, ComPact Compact NSX250 DC |
|---|---|
| Product or Component Type | Safety trip interlock |
| Accessory / separate part category | Interlocking accessory |
| Poles description | 4P, 3P |
| Warranty (in months) | 18 |
|---|
| Part number | LV432520 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606480021701 |
| Country of origin | PL |
|---|---|
| Shipping weight | 0.054 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for LV432520 is 853890.
The EAN (GTIN) of LV432520 is 3606480021701.
LV432520 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
