Schneider Electric LV431542 ComPacT NSX250 Standard Motor Mechanism MT250 380-415 V AC Accessory

% $-357.26

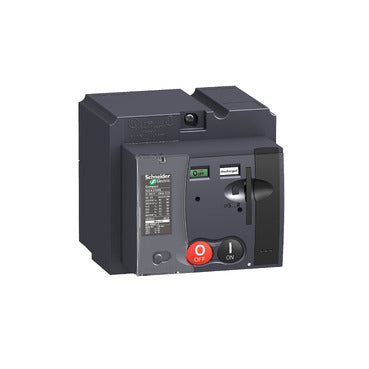

Schneider Electric LV431542 standard motor mechanism MT250 for ComPacT NSX250
Schneider Electric LV431542 standard motor mechanism MT250 for ComPacT NSX250

Schneider Electric LV431542 ComPacT NSX250 Standard Motor Mechanism MT250 380-415 V AC Accessory

Brand: Schneider Electric
Reference No: LV431542
Tariff Code (HS): 85362090
Rated Voltage: 380-415 V AC / 440-480 V AC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$357.26

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LV431542 is a standard motor mechanism (MT250) for fixed ComPacT NSX250 and PowerPact J-frame circuit breakers, supplied at 380-415 V AC (50/60 Hz) or 440-480 V AC (60 Hz). It automates spring-charging for high mechanical endurance opening and closing. It responds to an open command in under 700 ms and a close command in under 80 ms, up to 4 operations per minute.

Technical Specifications

Reference LV431542
GTIN 3606480020094
Brand Schneider Electric
Device Short Name MT250
Range Compatibility ComPacT NSX250, NSX250 DC
Device Application Automatic spring charging
Control Type Standard
[Uc] Control Circuit Voltage 380-415 V AC 50/60 Hz, 440-480 V AC 60 Hz
Circuit Breaker Mounting Mode Fixed
Compatible Frame Current 250 A
Control Signal Type Maintained, impulse
Response Time Open < 700 ms, close < 80 ms
Max. Power Consumption 500 VA (opening and closing)
Provided Equipment SDE adaptor

Selection Notes

Pick this standard MT250 mechanism when only local automatic spring-charging is needed on a fixed NSX250 breaker; for remote open/close control from a supervisory system, use the communicating MTc250 (LV431549) instead.

Technical Details

Short Description
The Schneider Electric LV431542 is a standard motor mechanism (MT250) for fixed ComPacT NSX250 and PowerPact J-frame circuit breakers, supplied at...
Rated Voltage (VAC)
380-415 V AC / 440-480 V AC
Mounting Type
Fixed, on-device
Delivery Date (Days)
30 days
Model Number
Standard Motor Mechanism MT250
Tariff Code
85362090
