Schneider Electric LV430563 ComPacT NSX160-250 Neutral Current Transformer 150-250 A Accessory

% $-221.52

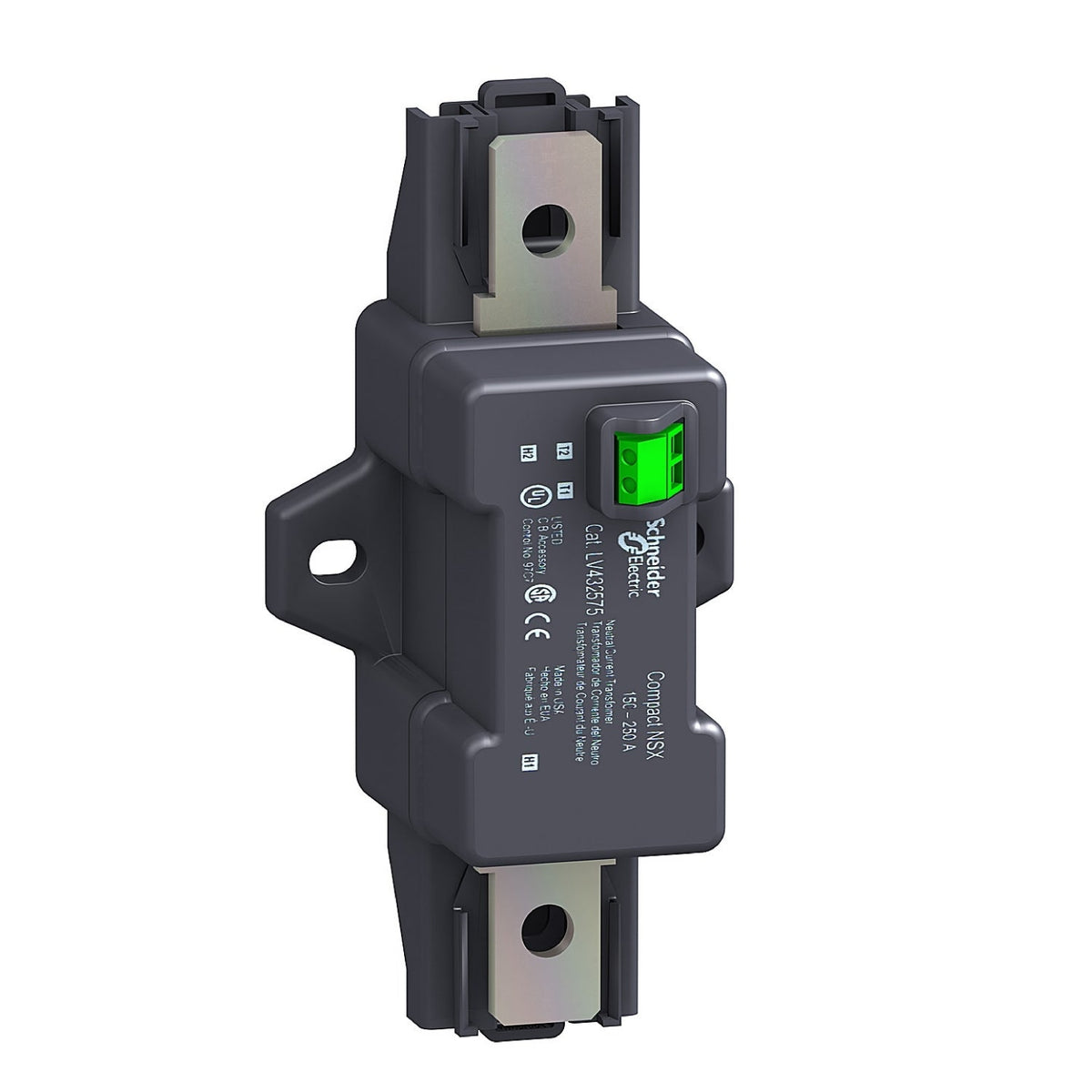

Schneider Electric LV430563 external neutral current transformer for ComPacT NSX160-250, 150-250 A
Schneider Electric LV430563 external neutral current transformer for ComPacT NSX160-250, 150-250 A

Schneider Electric LV430563 ComPacT NSX160-250 Neutral Current Transformer 150-250 A Accessory

Brand: Schneider Electric
Reference No: LV430563
Catalog No: LV430563
Tariff Code (HS): 853890
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$221.52

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LV430563 is an external neutral current transformer (ENCT) for 3-pole ComPacT NSX160 and NSX250 breakers fitted with a MicroLogic 5 or 6 trip unit. It protects the distributed neutral of the installation, sensing from 150 A to 250 A. The sensor connects to the trip unit by a shielded twisted pair, up to 10 m long, with a 0.4-1.5 mm² cross-section.

Technical Specifications

Reference LV430563
GTIN 785901321903
Brand Schneider Electric
Component Type Neutral sensor
Device Application Power supply (neutral protection)
Range Compatibility ComPacT NSX160, NSX250
Compatible Trip Unit MicroLogic 5, MicroLogic 6
Line Rated Current 150-250 A
Wiring to Trip Unit Shielded twisted pair, max. 10 m, 0.4-1.5 mm²
Country of Origin United States

Selection Notes

Install this 150-250 A sensor on 3-pole NSX160/250 breakers; for the lower NSX100 current band, use LV429521 (25-100 A) instead, and for NSX400/630 use LV432575 (400-630 A). All three sensors share the same MicroLogic 5/6 wiring method, so only the current band differs.

Technical Details

Short Description
The Schneider Electric LV430563 is an external neutral current transformer (ENCT) for 3-pole ComPacT NSX160 and NSX250 breakers fitted with a...
Mounting Type
External, on-cable
Catalog No
LV430563
Delivery Date (Days)
30 days
Model Number
External Neutral Current Transformer
Tariff Code
853890
