Schneider Electric LV429532 ComPacT NSX SDx Module 2 Static Outputs MicroLogic Circuit Breaker Accessory

% $-210.41

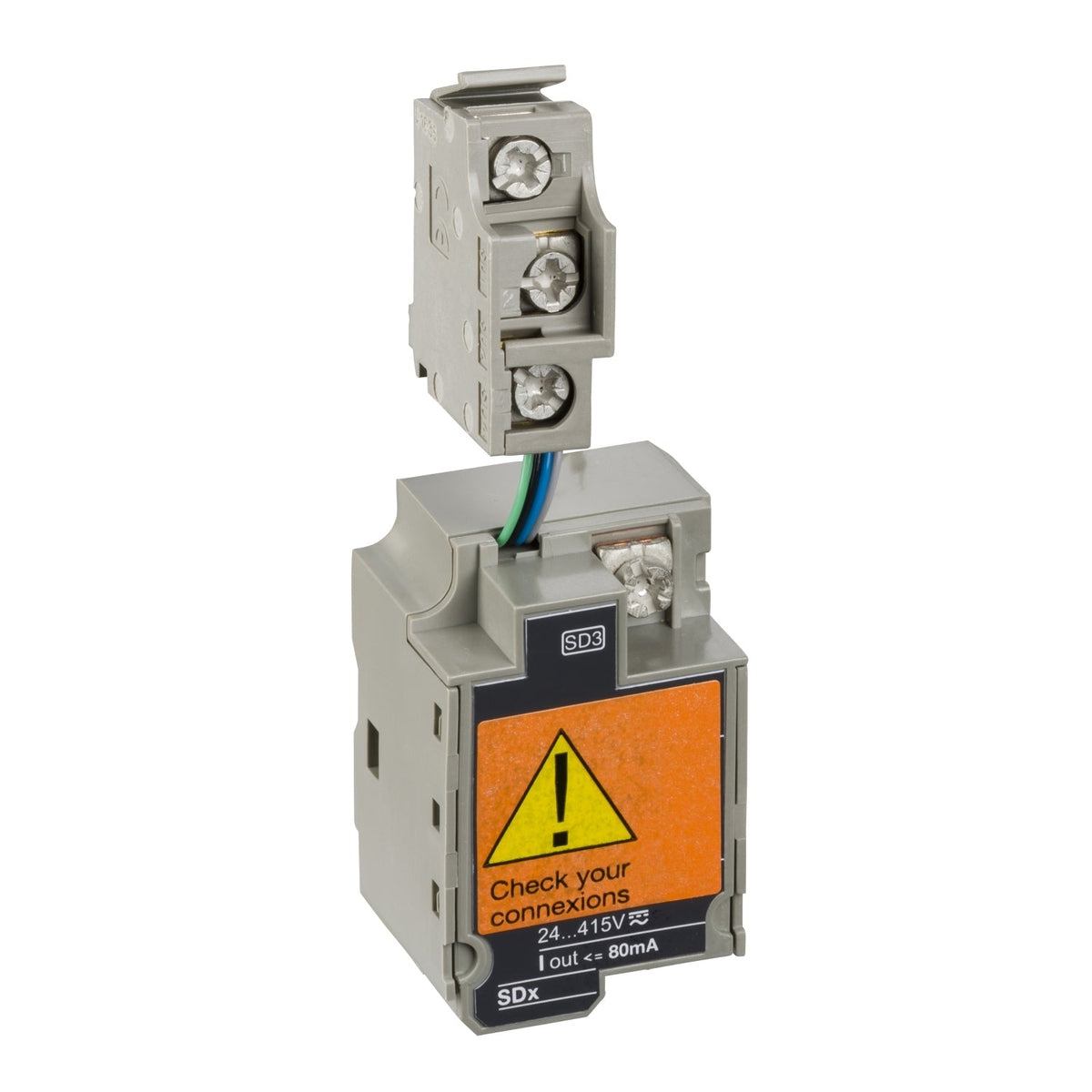

Schneider Electric LV429532 ComPacT NSX SDx output module - 2 static outputs
Schneider Electric LV429532 ComPacT NSX SDx output module - 2 static outputs

Schneider Electric LV429532 ComPacT NSX SDx Module 2 Static Outputs MicroLogic Circuit Breaker Accessory

Brand: Schneider Electric
Reference No: LV429532
Catalog No: LV429532
Series: ComPact NSX400...630 | ComPact NSX100...250
Tariff Code (HS): 853890
Communication: ULP cord to MicroLogic trip unit
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$210.41

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LV429532 is an SDx output module for ComPacT NSX100-630 circuit breakers fitted with MicroLogic 2.0, 5.0 or 6.0 trip units, providing 2 static outputs for remote alarm and control wiring. It connects by ULP cord and draws power directly from the trip unit, with no extra software or settings to commission.

Technical Specifications

Reference LV429532
Brand Schneider Electric
Range of Product ComPacT NSX100-250, NSX400-630
Device Short Name SDX output modules
Product or Component Type SDX output module
Device Application Control
Range Compatibility ComPacT NSX
Accessory / Separate Part Category Relay accessory
Compatible Trip Units MicroLogic 2.2, 2.3, 4.2, 4.3, 5.2 A/E, 5.3 A/E, 6.2 A/E, 6.3 A/E, 7.2 E, 7.3 E
Maximum [In] Rated Current 0.08 A
[Us] Rated Supply Voltage 24-415 V AC 50/60 Hz, 24-415 V DC

Selection Notes

LV429532 uses the sensors and processing power already built into the breaker's MicroLogic trip unit rather than adding its own intelligence, so it is immediately operational once plugged in by ULP cord. The 2 static outputs give remote alarm or control signalling and can be combined with an I/O application module, motor mechanism module, or circuit breaker communication module on the same breaker for a fuller monitoring and control setup. It only fits MicroLogic-equipped breakers, not TM or MA trip units.

Technical Details

Short Description
SDx output module, 2 static outputs, for ComPacT NSX100-630 with MicroLogic 2.0/5.0/6.0.
Mounting Type
ULP cord connection to breaker
Catalog No
LV429532
Delivery Date (Days)
30 days
Model Number
SDX output module
Tariff Code
853890
