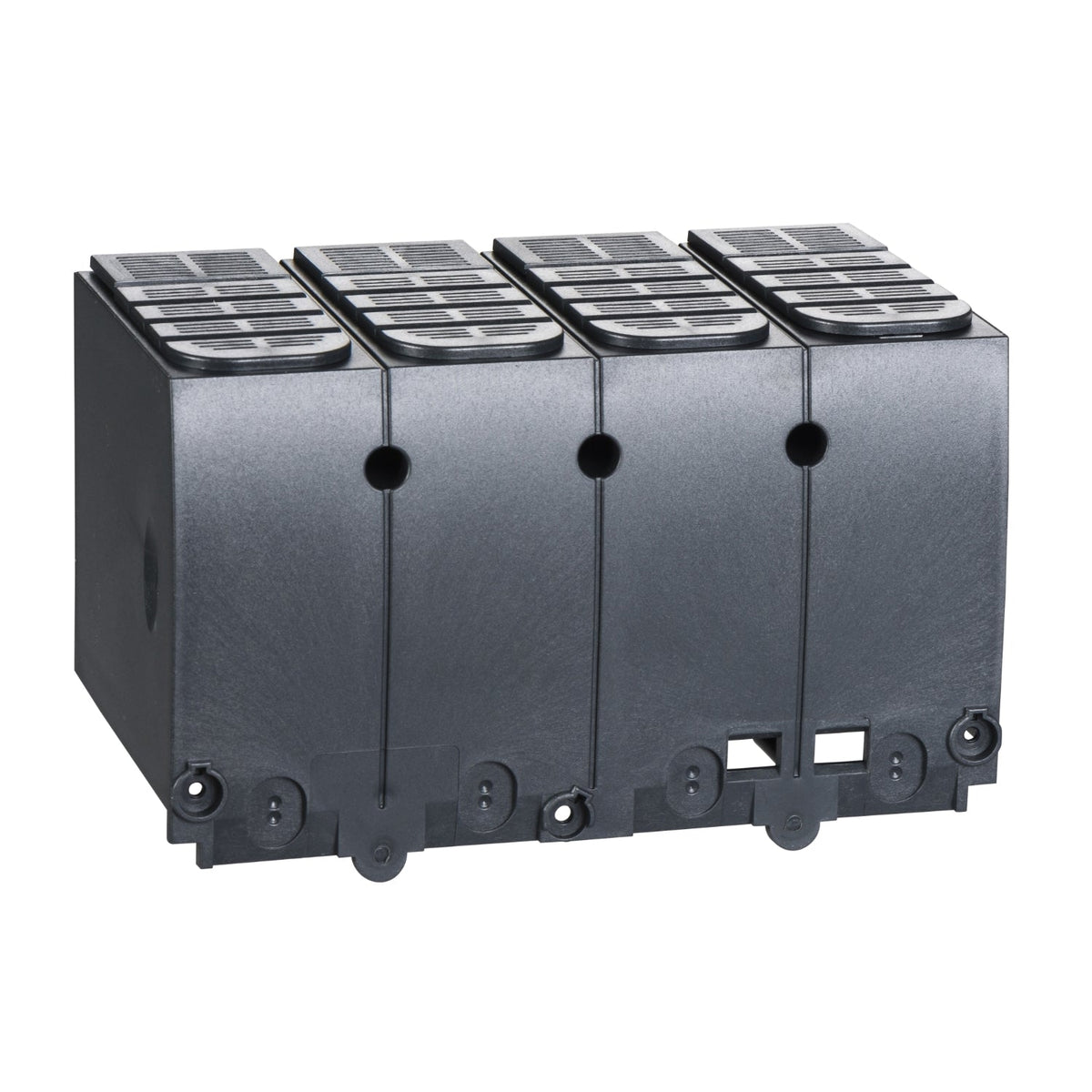

The Schneider Electric LV429518 is a long terminal shield for 4-pole ComPacT NSX100, NSX160, NSX250, EasyPact CVS100-250, ComPacT INS250 and ComPacT INV100-250 devices, with a 35 mm connection pitch for front cable or busbar connection, reaching IP40, IK07. It fits fixed, plug-in and withdrawable mounting and can be installed upstream or downstream of the device.
Specify this long shield for front cable or insulated-bar connection on 4-pole NSX100-250, CVS100-250 or INS/INV breakers; it covers fixed, plug-in and withdrawable mounting. For the 3-pole equivalent, use LV429515 instead; both share the same 35 mm pitch and IP40 rating.
| Product or Component Type | Long terminal shield |
|---|---|
| Range compatibility | ComPacT ComPacT NSX100, ComPacT ComPacT NSX160, ComPacT ComPacT NSX250, ComPact ComPact NSX100, ComPact ComPact NSX160, ComPact ComPact NSX250, ComPacT ComPacT NSX DC NSX100 DC, ComPacT ComPacT NSX DC NSX160 DC, ComPacT ComPacT NSX DC NSX250 DC, ComPact Compact NSX100 DC, ComPact Compact NSX160 DC, ComPact Compact NSX250 DC, EasyPact EasyPact CVS100, EasyPact EasyPact CVS160, EasyPact EasyPact CVS250, ComPact INS250, ComPact Compact INV100...250 |
| Accessory / Separate Part Type | Insulation accessories |
| Poles description | 4P |
| Quantity per Set | 1 |
| Connection pitch | 1.4 in (35 mm) |
|---|---|
| IP degree of protection | IP40 conforming to IEC 60529 |
| Product Compatibility | Circuit-breaker, Plug-in base |
| Warranty (in months) | 18 |
|---|
| Part number | LV429518 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606480019920 |
| Country of origin | FR |
|---|---|
| Shipping weight | 0.195 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for LV429518 is 853890.
The EAN (GTIN) of LV429518 is 3606480019920.
LV429518 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
