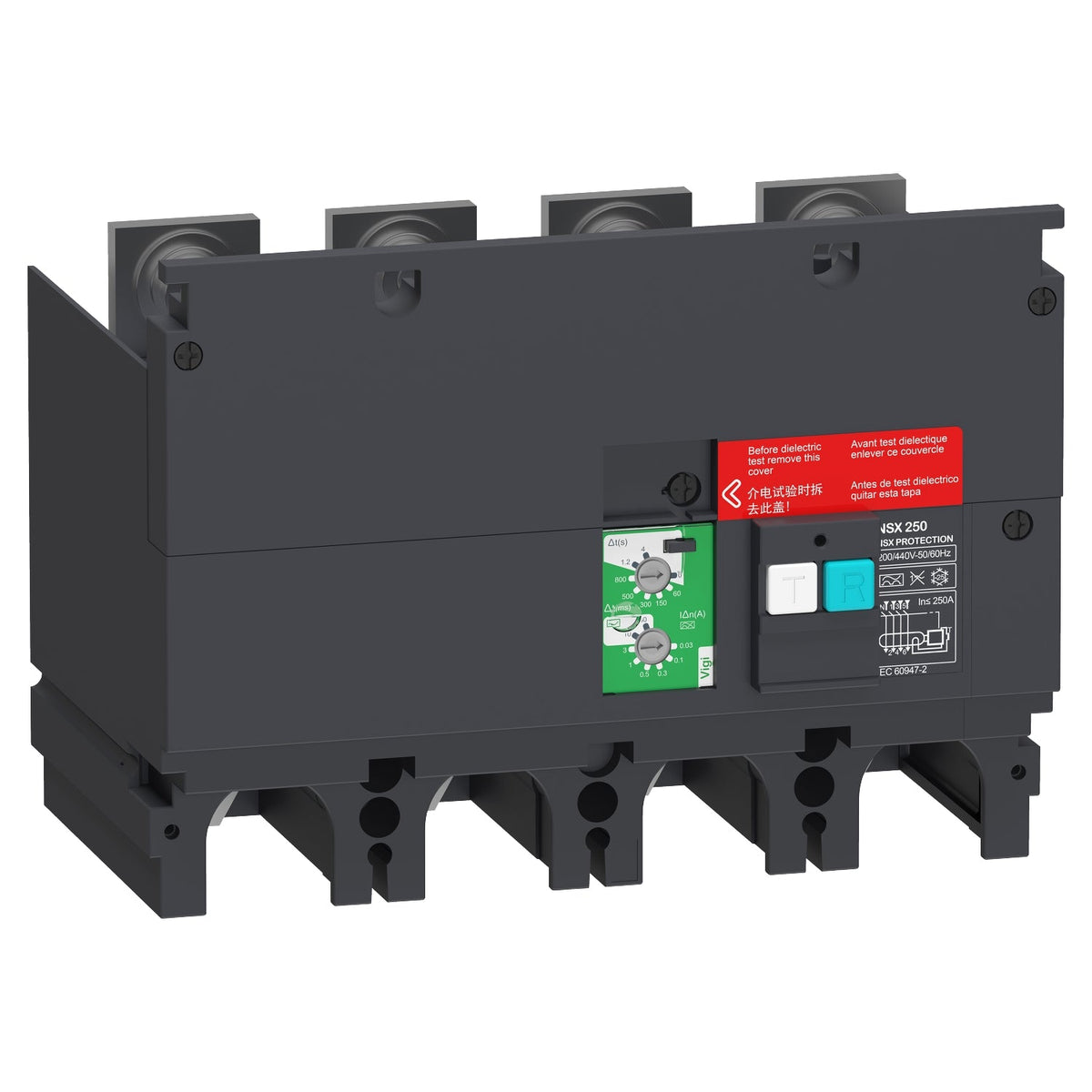

The Schneider Electric LV429493 is a VigiPacT earth-leakage add-on module for 4-pole ComPacT/ComPact NSX250 circuit breakers, rated 200 to 440 V AC. It mounts directly on the breaker terminals, is self-powered from the distribution-system voltage even on 2 phases, and directly actuates the breaker's trip unit when the earth-leakage sensitivity, adjustable from 30 mA to 30 A, is exceeded.
This is the 4-pole version sized for the NSX250 frame, for circuits where the neutral conductor must also be monitored for earth leakage; use the 3-pole version instead where the neutral is not switched. The dual class A/AC sensitivity range in one module covers both standard AC earth faults (class AC, 10-30 A) and pulsating DC faults from rectified loads (class A, down to 30 mA) without a separate sensor.
| Range of Product | ComPacT NSX100...250, ComPact NSX100...250 |
|---|---|
| Device short name | VigiPacT |
| Product or Component Type | Vigi add-on |
| Device Application | Wiring |
| Range compatibility | ComPacT ComPacT NSX250 circuit breaker, ComPact ComPact NSX250 circuit breaker |
| Poles description | 4P |
| Line Rated Current | 250 A |
| Earth-leakage protection class | Class A, Class AC |
| Residual earth-leakage sensitity adjustment type | Adjustable |
| Earth-leakage sensitivity | 0.03 A class A, 0.1 A class A, 0.3 A class A, 0.5 A class A, 1 A class A, 3 A class A, 10 A class AC, 30 A class AC |
| Residual earth-leakage time delay adjustment type | Adjustable |
| [Δt] residual earth-leakage time delay adjustment | 0 ms, 60 ms, 150 ms, 300 ms, 500 ms, 800 ms, 1.2 s, 4 s |
| Network type | AC |
|---|---|
| Network Frequency | 50/60 Hz |
| [Ue] rated operational voltage | 200...440 V AC 50/60 Hz IEC 60947-2 |
| Earth-leakage protection | With |
| Maximum breaking time | 800 ms |
| Overvoltage category | IV |
| Electrical shock protection class | Class II |
|---|---|
| Standards | IEC 60947-2 |
| Part number | LV429493 |
|---|---|
| Type designation | VigiPacT |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 03606481298591 |
| Warranty (in months) | 18 |
|---|
| Country of origin | IT |
|---|---|
| Shipping weight | 1.291 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe rated operational voltage of VigiPacT is 200–440 V AC.
The tariff (HS) code on file for VigiPacT is 853890.
The EAN (GTIN) of VigiPacT is 03606481298591.
VigiPacT ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
