Schneider Electric LV429492 ComPacT NSX250 VigiPacT Earth-Leakage 3P 0.03-30 A Circuit Breaker Accessory

% $-590.50

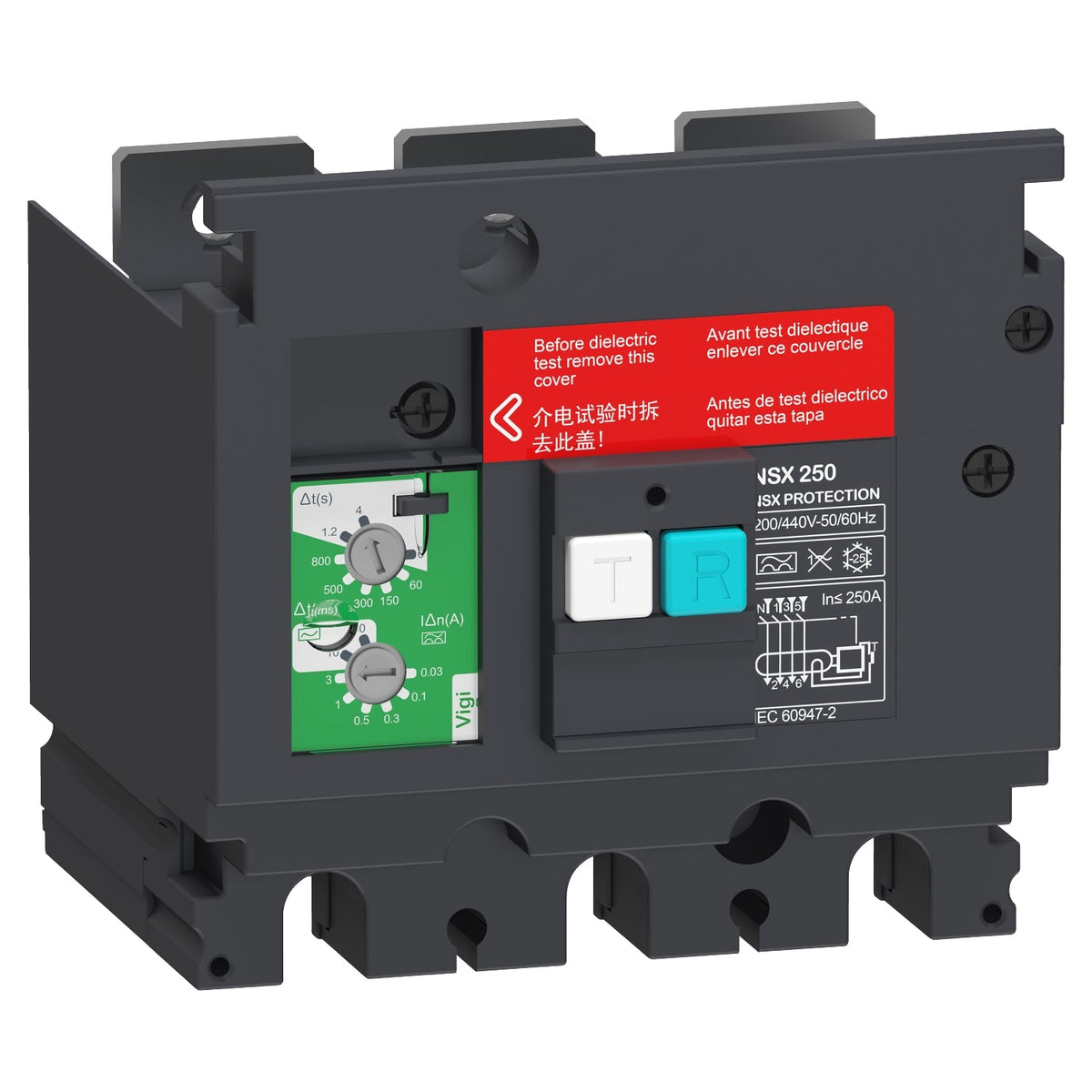

Schneider Electric LV429492 VigiPacT earth-leakage add-on for ComPacT NSX250 - 3P
Schneider Electric LV429492 VigiPacT earth-leakage add-on for ComPacT NSX250 - 3P

Schneider Electric LV429492 ComPacT NSX250 VigiPacT Earth-Leakage 3P 0.03-30 A Circuit Breaker Accessory

Brand: Schneider Electric
Reference No: LV429492
Catalog No: LV429492
Series: ComPacT NSX100...250 | ComPact NSX100...250
Tariff Code (HS): 853890
Rated Voltage: 200-440 V AC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$590.50

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LV429492 is a VigiPacT earth-leakage add-on module for 3-pole ComPacT/ComPact NSX250 circuit breakers, rated 200 to 440 V AC. It mounts directly on the breaker terminals, is self-powered from the distribution-system voltage even on 2 phases, and directly actuates the breaker's trip unit when the earth-leakage sensitivity, adjustable from 30 mA to 30 A, is exceeded.

Technical Specifications

SKU LV429492
Brand Schneider Electric
GTIN 3606481298584
Range ComPacT/ComPact NSX100...250
Product type Vigi add-on
Range compatibility ComPacT/ComPact NSX250 circuit breaker
Poles 3P
Compatible breaker line current 250 A
Earth-leakage protection class Class A, Class AC
Earth-leakage sensitivity 0.03, 0.1, 0.3, 0.5, 1, 3 A (class A); 10, 30 A (class AC)
[Δt] Residual earth-leakage time delay 0, 60, 150, 300, 500, 800 ms; 1.2, 4 s
[Ue] Rated operational voltage 200-440 V AC 50/60 Hz, IEC 60947-2
Network type AC, 50/60 Hz
Maximum breaking time 800 ms
Overvoltage category IV
Electrical shock protection class Class II

Certifications & Standards

  • IEC 60947-2

Selection Notes

This is the 3-pole version sized for the NSX250 frame only; the NSX100/160 and NSX400/630 frames each use their own dedicated add-on since the module's mechanical interface is frame-specific. The dual class A/AC sensitivity range in one module covers both standard AC earth faults (class AC, 10-30 A) and pulsating DC faults from rectified loads (class A, down to 30 mA) without a separate sensor.

Technical Details

Short Description
VigiPacT earth-leakage add-on, ComPacT NSX250, 3P, 200-440 V AC, 30 mA-30 A.
Rated Voltage (VAC)
200-440 V AC
Mounting Type
Direct mount on breaker terminals
Catalog No
LV429492
Delivery Date (Days)
30 days
Model Number
VigiPacT
Tariff Code
853890
