Part number
LV429489
Model no
VigiPacT
$490.19 On request Dispatch — · From TürkiyeGet a Quote
Schneider ComPacT NSX

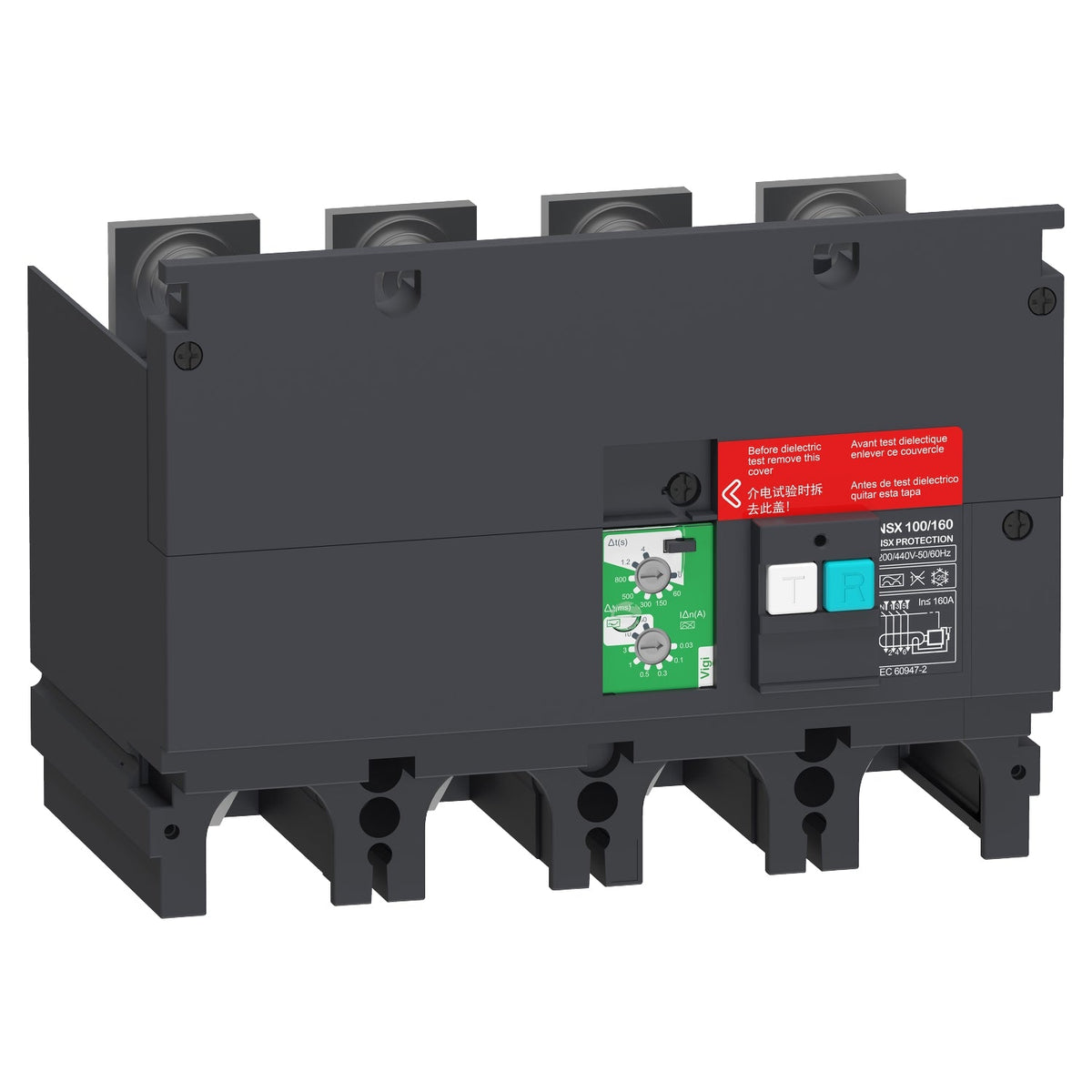

Schneider Electric LV429489 ComPacT NSX100/160 VigiPacT Earth-Leakage 4P 0.03-30 A Circuit Breaker Accessory

VigiPacT earth-leakage add-on, ComPacT NSX100/160, 4P, 200-440 V AC, 30 mA-30 A.

Rated operational voltage
200–440 V AC
EAN
3606481298553
Description

About the VigiPacT

The Schneider Electric LV429489 is a VigiPacT earth-leakage add-on module for 4-pole ComPacT/ComPact NSX100 and NSX160 circuit breakers, rated 200 to 440 V AC. It mounts directly on the breaker terminals, is self-powered from the distribution-system voltage even on 2 phases, and directly actuates the breaker's trip unit when the earth-leakage sensitivity, adjustable from 30 mA to 30 A, is exceeded.

Certifications & Standards

  • IEC 60947-2

Selection Notes

This is the 4-pole version sized for the NSX100/160 frame, for circuits where the neutral conductor must also be monitored for earth leakage; use the 3-pole version instead where the neutral is not switched. The dual class A/AC sensitivity range in one module covers both standard AC earth faults (class AC, 10-30 A) and pulsating DC faults from rectified loads (class A, down to 30 mA) without a separate sensor.

Specification

Full specification

34 values · Last verified 30 Oct 2026

Main 12

Range of Product ComPacT NSX100...250, ComPact NSX100...250
Device short name VigiPacT
Product or Component Type Vigi add-on
Device Application Wiring
Range compatibility ComPacT ComPacT NSX100 circuit breaker, ComPacT ComPacT NSX160 circuit breaker, ComPact ComPact NSX100 circuit breaker, ComPact ComPact NSX160 circuit breaker
Poles description 4P
Line Rated Current 100 A, 160 A
Earth-leakage protection class Class A, Class AC
Residual earth-leakage sensitity adjustment type Adjustable
Earth-leakage sensitivity 0.03 A class A, 0.1 A class A, 0.3 A class A, 0.5 A class A, 1 A class A, 3 A class A, 10 A class AC, 30 A class AC
Residual earth-leakage time delay adjustment type Adjustable
[Δt] residual earth-leakage time delay adjustment 0 ms, 60 ms, 150 ms, 300 ms, 500 ms, 800 ms, 1.2 s, 4 s

Complementary 6

Network type AC
Network Frequency 50/60 Hz
[Ue] rated operational voltage 200...440 V AC 50/60 Hz IEC 60947-2
Earth-leakage protection With
Maximum breaking time 800 ms
Overvoltage category IV

Environment 2

Electrical shock protection class Class II
Standards IEC 60947-2
Show all 34 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number LV429489
Type designation VigiPacT
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606481298553

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin IT
Shipping weight 1.299 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for LV429489

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • IEC 60947-2
Quick answers

Questions about the VigiPacT

Which supply voltage is VigiPacT rated for?

The rated operational voltage of VigiPacT is 200–440 V AC.

What is the HS code of VigiPacT for customs?

The tariff (HS) code on file for VigiPacT is 853890.

What is the EAN of VigiPacT?

The EAN (GTIN) of VigiPacT is 3606481298553.

Where does VigiPacT ship from, and how fast?

VigiPacT ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
