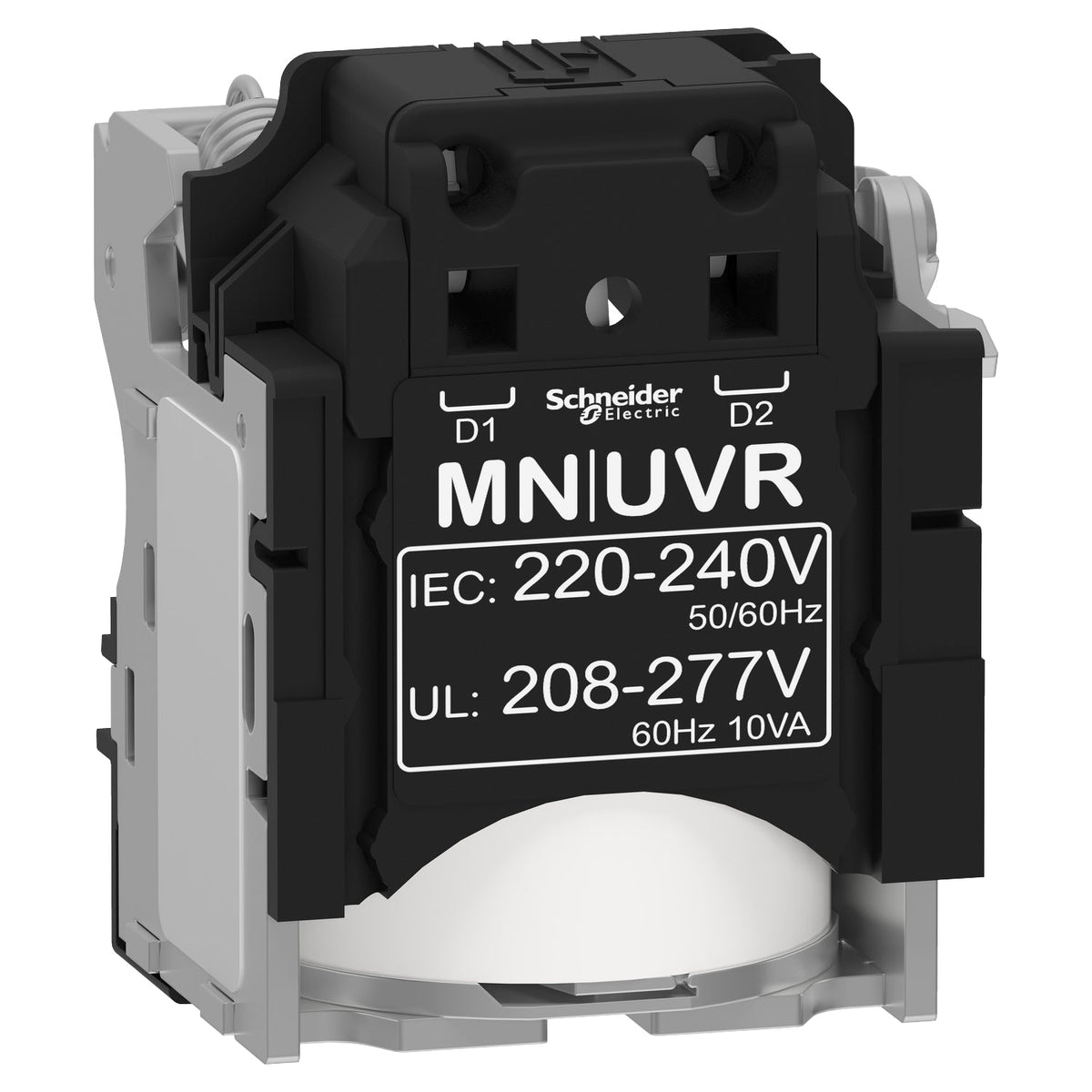

The Schneider Electric LV429407 is an MN undervoltage release for ComPacT NSX100-630, PowerPact Multistandard and EasyPact CVS moulded case circuit breakers, rated 220-240 V AC 50/60 Hz (also 208-277 V AC 60 Hz). It opens the breaker automatically when the control voltage drops below 35% of its rated value Un, with a 50 ms response time and screwless spring terminal connections.
LV429407 fits ComPacT NSX, EasyPact CVS and PowerPact Multistandard breakers on 220-240 V AC 50/60 Hz control circuits (the same reference also covers 208-277 V AC 60 Hz). It is the fail-safe counterpart to an MX shunt trip: the breaker trips automatically if its control supply is lost or sags below 35% Un, so it suits circuits where loss of control power must open the breaker rather than leave it closed. For 380/415 V AC or 440/480 V AC control supplies, choose the higher-voltage undervoltage release instead. Each breaker chassis accepts either one MX or one MN auxiliary, never both.
| Range | ComPacT |
|---|---|
| Range of Product | ComPact NSX100...250, ComPacT NSX100...250, ComPact NSX400...630, ComPacT NSX400...630, ComPact NSX100...250 DC, ComPacT NSX100...250 DC, ComPact NSX100...250 DC PV, ComPacT NSX100...250 DC PV, ComPact NSX400...630 DC, ComPacT NSX400...630 DC, ComPact NSX400...630 DC PV, ComPacT NSX400...630 DC PV |
| Device short name | MN |
| Product or Component Type | Voltage release |
| Device Application | Control |
| Voltage release type | Opening coil, Undervoltage release |
| [Uc] control circuit voltage | 220...240 V AC 50/60 Hz, 208...277 V AC 60 Hz |
| Range compatibility | ComPacT ComPacT NSX, ComPacT ComPacT NSX DC, ComPact ComPact NSX, ComPact ComPact NSX DC, EasyPact EasyPact CVS, PowerPact PowerPact Multistandard |
| Operating threshold | 0.35...0.7 x Un opening, 0.85 x Un closing |
|---|---|
| Response time | 50 ms |
| Supply holding power | 5 VA |
| Supply inrush power | 10 VA |
| Auxiliary connection terminal | spring 0.0008…0.002 in² (0.5…1.5 mm²) 20 AWG...16 AWG) |
| Wire stripping length | 0.3 in (7 mm) |
| Warranty (in months) | 18 |
|---|
| Part number | LV429407 |
|---|---|
| Type designation | MN |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606480018961 |
| Country of origin | PL |
|---|---|
| Shipping weight | 0.119 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe rated operational voltage of MN is 220–240 V AC.
The tariff (HS) code on file for MN is 853890.
The EAN (GTIN) of MN is 3606480018961.
MN ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
