Schneider Electric LV429388 ComPacT NSX100-630 MX Shunt Trip Release 380-415 V AC Circuit Breaker Accessory

% $-55.29
Schneider Electric LV429388 ComPacT NSX MX shunt trip release - 380-415 V AC
Schneider Electric LV429388 ComPacT NSX MX shunt trip release - 380-415 V AC

Schneider Electric LV429388 ComPacT NSX100-630 MX Shunt Trip Release 380-415 V AC Circuit Breaker Accessory

Brand: Schneider Electric
Reference No: LV429388
Catalog No: LV429388
Series: ComPact NSX100...250 | ComPacT NSX100...250 | ComPact NSX400...630 | ComPacT NSX400...630 | ComPact NSX100...250 DC | ComPacT NSX100...250 DC | ComPact NSX100...250 DC PV | ComPacT NSX100...250 DC PV | ComPact NSX400...630 DC | ComPacT NSX400...630 DC | ComPact NSX400...630 DC PV | ComPacT NSX400...630 DC PV
Tariff Code (HS): 853890
Rated Voltage: 380-415 V AC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$55.29

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

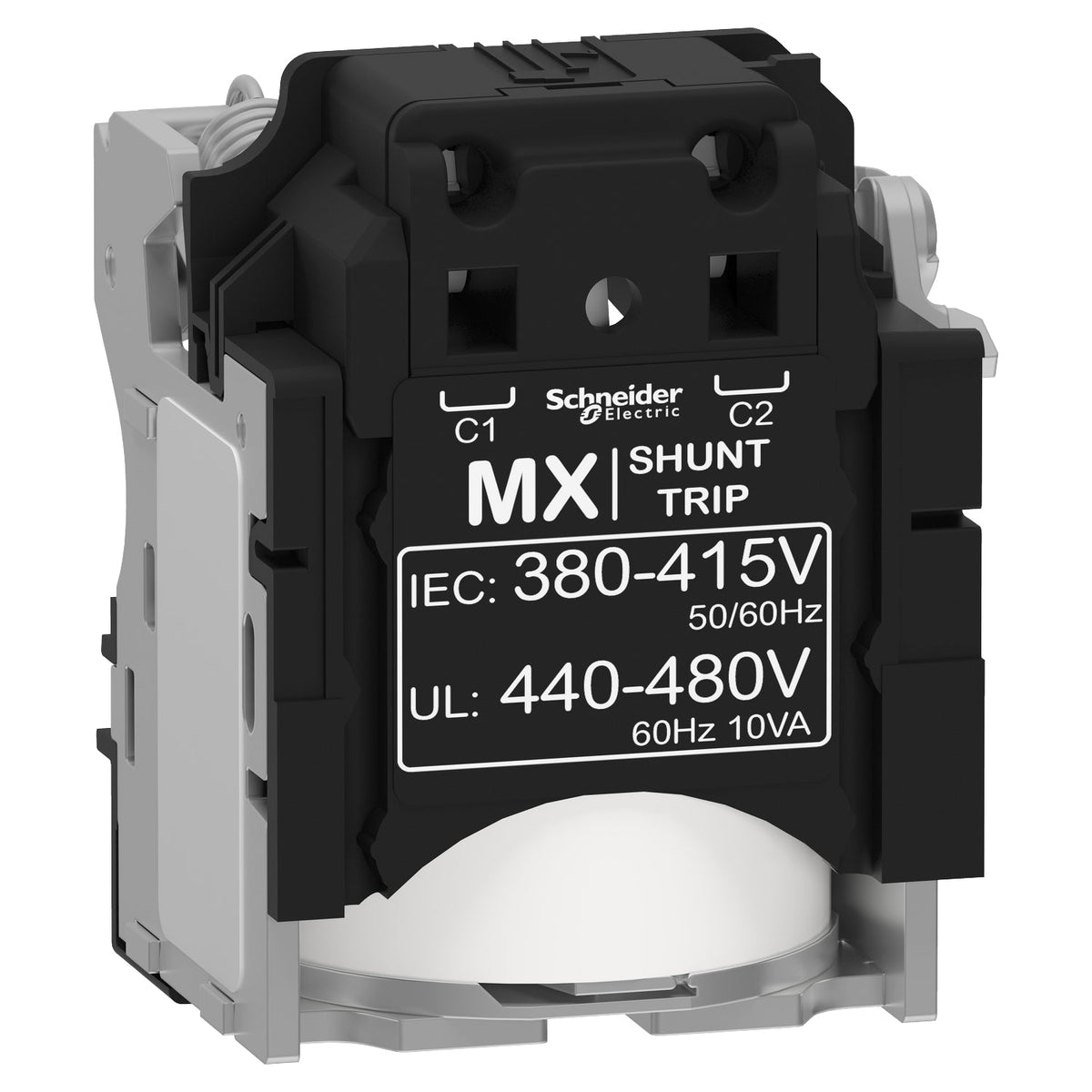

The Schneider Electric LV429388 is an MX shunt trip release for ComPacT NSX100-630, PowerPact Multistandard and EasyPact CVS moulded case circuit breakers, rated 380-415 V AC 50/60 Hz (also 440-480 V AC 60 Hz). It opens the breaker for emergency-off or remote-opening duty once the control voltage Un rises above 70% of its rated value, with a 50 ms response time and screwless spring terminal connections.

Technical Specifications

Reference LV429388
Brand Schneider Electric
Range of Product ComPacT NSX100-250 / NSX400-630 (also DC and DC PV variants)
Device Short Name MX
Product or Component Type Voltage release
Device Application Control
Voltage Release Type Opening coil / shunt trip release
Control Circuit Voltage [Uc] 380-415 V AC 50 Hz, 440-480 V AC 60 Hz
Range Compatibility ComPacT NSX, ComPacT NSX DC, EasyPact CVS, PowerPact Multistandard
Operating Threshold 0.7-1.1 x Un opening
Response Time 50 ms
Control Signal Type Maintained or impulse (≥ 20 ms)
Supply Inrush Power 10 VA
Auxiliary Connection Terminal Spring, 0.5-1.5 mm² (20-16 AWG), 7 mm strip length
GTIN 3606480019104

Selection Notes

LV429388 fits ComPacT NSX, EasyPact CVS and PowerPact Multistandard breakers on 380-415 V AC 50/60 Hz control circuits (the same reference also covers 440-480 V AC 60 Hz). For breakers wired to 220/240 V AC control supplies, choose the lower-voltage shunt trip variant instead. The screwless spring terminals cut installation time versus a screw-terminal release, and each breaker chassis accepts either one MX or one MN auxiliary, never both.

Technical Details

Short Description
MX shunt trip release for ComPacT NSX100-630, 380-415 V AC 50/60 Hz, spring terminal connections.
Rated Voltage (VAC)
380-415 V AC
Mounting Type
Front-face, spring terminal
Catalog No
LV429388
Delivery Date (Days)
30 days
Model Number
MX
Tariff Code
853890
