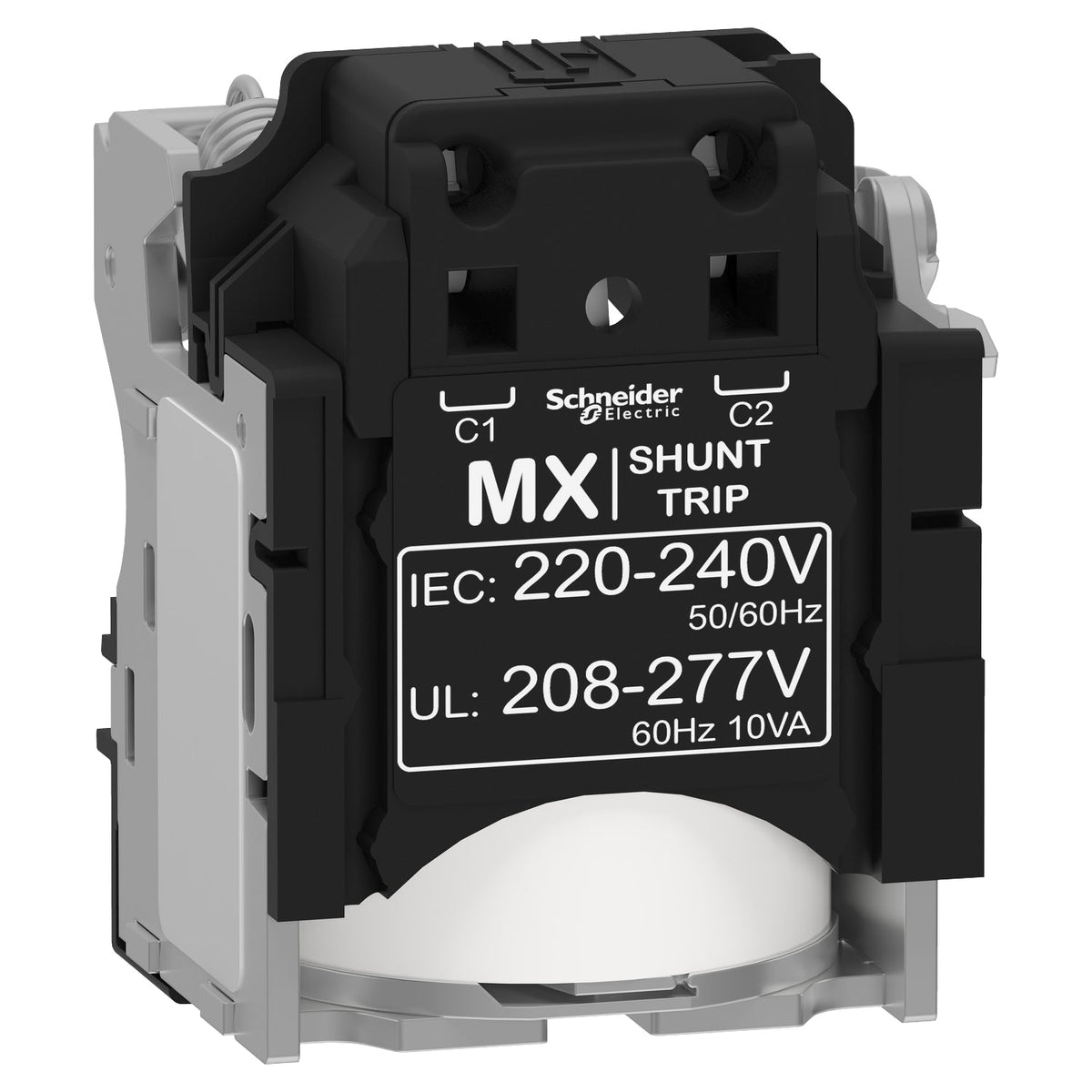

The Schneider Electric LV429387 is an MX shunt trip release for ComPacT NSX100-630, PowerPact Multistandard and EasyPact CVS moulded case circuit breakers, rated 220-240 V AC 50/60 Hz (also 208-277 V AC 60 Hz). It opens the breaker for emergency-off or remote-opening duty once the control voltage Un rises above 70% of its rated value, with a 50 ms response time and screwless spring terminal connections.
LV429387 fits ComPacT NSX, EasyPact CVS and PowerPact Multistandard breakers on 220-240 V AC 50/60 Hz control circuits (the same reference also covers 208-277 V AC 60 Hz). For breakers wired to 380/415 V AC or 440/480 V AC control supplies, choose the higher-voltage shunt trip variant instead. The screwless spring terminals cut installation time versus a screw-terminal release, and each breaker chassis accepts either one MX or one MN auxiliary, never both.
| Range | ComPacT |
|---|---|
| Range of Product | ComPact NSX100...250, ComPacT NSX100...250, ComPact NSX400...630, ComPacT NSX400...630, ComPact NSX100...250 DC, ComPacT NSX100...250 DC, ComPact NSX100...250 DC PV, ComPacT NSX100...250 DC PV, ComPact NSX400...630 DC, ComPacT NSX400...630 DC, ComPact NSX400...630 DC PV, ComPacT NSX400...630 DC PV |
| Device short name | MX |
| Product or Component Type | Voltage release |
| Device Application | Control |
| Voltage release type | Opening coil, Shunt trip release |
| [Uc] control circuit voltage | 220...240 V AC 50/60 Hz, 208...277 V AC 60 Hz |
| Range compatibility | ComPacT ComPacT NSX, ComPacT ComPacT NSX DC, ComPact ComPact NSX, ComPact ComPact NSX DC, EasyPact EasyPact CVS, PowerPact PowerPact Multistandard |
| Operating threshold | 0.7...1.1 x Un opening |
|---|---|
| Response time | 50 ms |
| Control signal type | Impulse, Maintained |
| Impulse duration | >= 20 ms |
| Supply inrush power | 10 VA |
| Auxiliary connection terminal | spring 0.0008…0.002 in² (0.5…1.5 mm²) 20 AWG...16 AWG) |
| Wire stripping length | 0.3 in (7 mm) |
| Warranty (in months) | 18 |
|---|
| Part number | LV429387 |
|---|---|
| Type designation | MX |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606480019098 |
| Country of origin | PL |
|---|---|
| Shipping weight | 0.118 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
