Schneider Electric LV429354T ComPacT NSX100-250 Mechanical Interlock Toggle 2-Device Circuit Breaker Accessory

% $-141.92

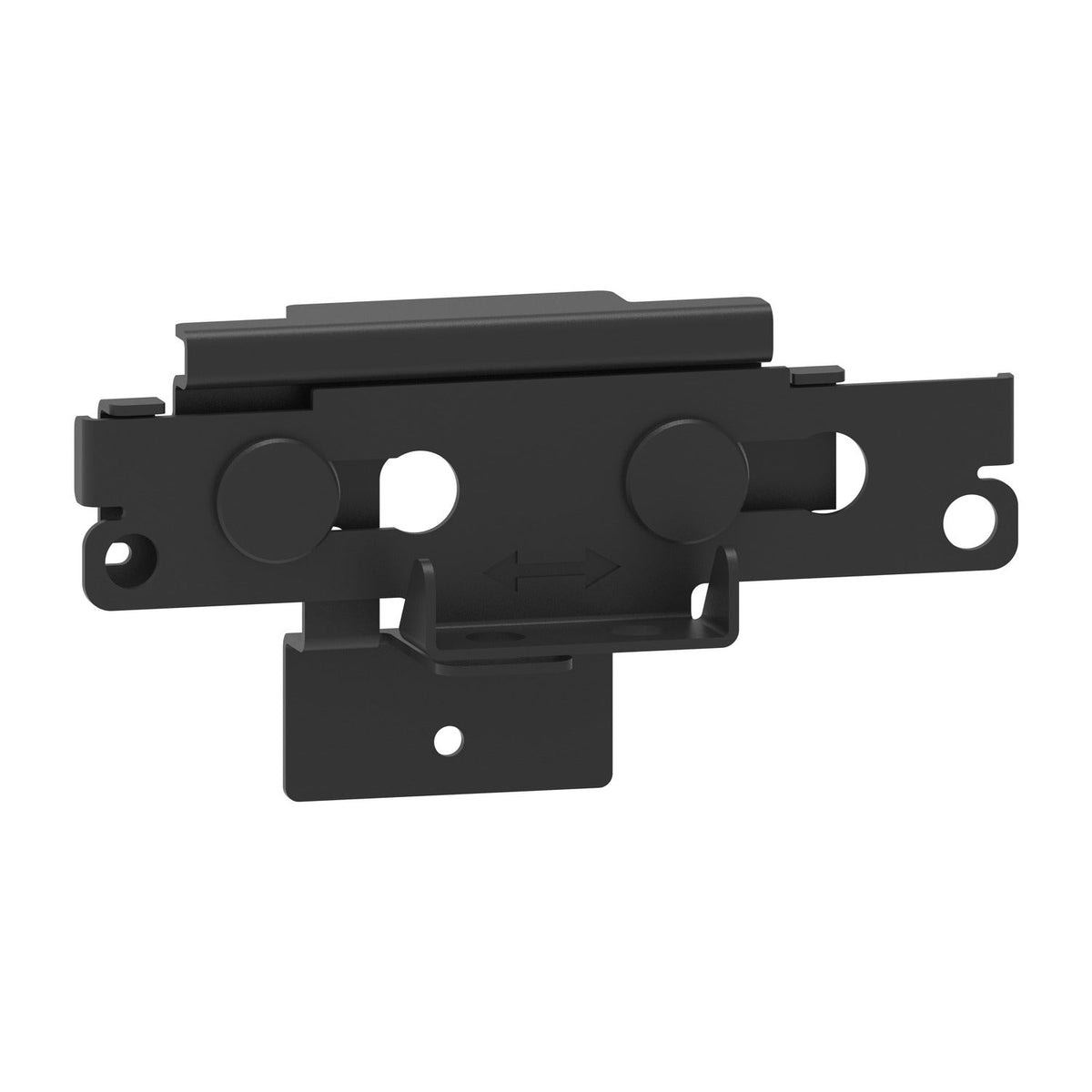

Schneider Electric LV429354T mechanical interlock for toggle ComPacT NSX100-250 devices
Schneider Electric LV429354T mechanical interlock for toggle ComPacT NSX100-250 devices

Schneider Electric LV429354T ComPacT NSX100-250 Mechanical Interlock Toggle 2-Device Circuit Breaker Accessory

Brand: Schneider Electric
Reference No: LV429354T
Catalog No: LV429354T
Tariff Code (HS): 853890
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$141.92

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LV429354T is a mechanical interlocking system for toggle-operated ComPacT NSX100, NSX160 and NSX250 devices. It only allows one breaker ON with the other OFF, or both OFF, and locks with one or two padlocks. The system is fixed-mounted between the two breakers and does not require a plug-in or withdrawable configuration to operate.

Technical Specifications

Reference LV429354T
Brand Schneider Electric
Range Compatibility ComPacT NSX, ComPacT NSX DC
Component Type Mechanical interlock
Accessory Category Interlocking accessory
Mounting Mode Fixed
Source-Changeover Interlock Mechanical interlocking
Control Type Toggle
Authorized Positions One ON/one OFF, or both OFF
Padlocking 1 or 2 padlocks, 5-8 mm shackle

Selection Notes

This is the toggle interlock reference for the NSX100-250 range; two identical units installed side by side extend the interlock to three devices. It applies to toggle-operated breakers only, not rotary-handle or motor-mechanism-fitted devices, and both devices must share the same fixed mounting mode for the interlock to engage correctly.

Technical Details

Short Description
The Schneider Electric LV429354T is a mechanical interlocking system for toggle-operated ComPacT NSX100, NSX160 and NSX250 devices.
Mounting Type
Fixed
Catalog No
LV429354T
Delivery Date (Days)
30 days
Model Number
Mechanical Interlock
Tariff Code
853890
