Schneider Electric LV429354 ComPacT NSX100-250 Mechanical Interlock Toggle 2-Device Circuit Breaker Accessory

% $-144.39

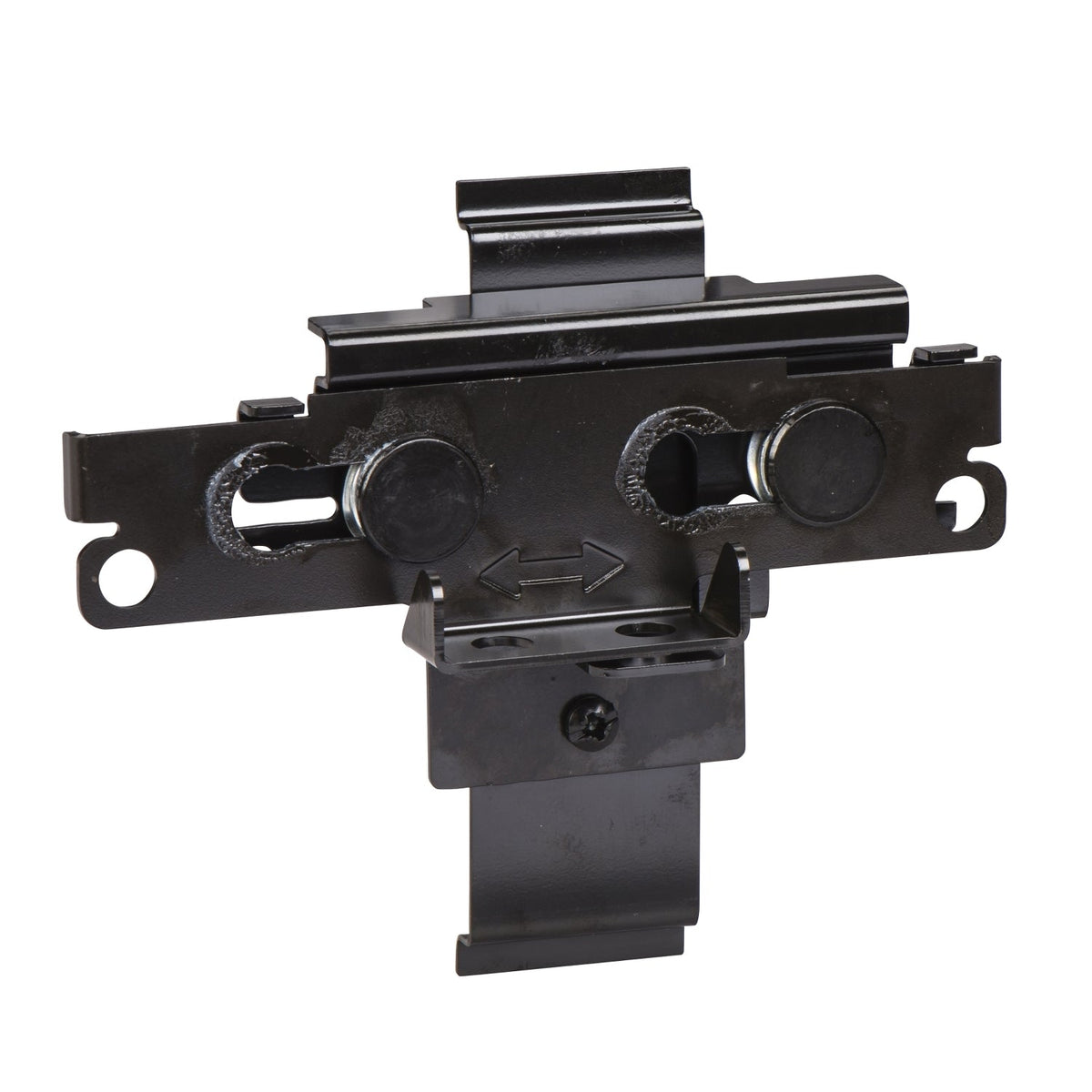

Schneider Electric LV429354 mechanical interlock with toggles for two ComPacT NSX100-250 devices
Schneider Electric LV429354 mechanical interlock with toggles for two ComPacT NSX100-250 devices

Schneider Electric LV429354 ComPacT NSX100-250 Mechanical Interlock Toggle 2-Device Circuit Breaker Accessory

Brand: Schneider Electric
Reference No: LV429354
Catalog No: LV429354
Tariff Code (HS): 853890
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$144.39

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LV429354 is a mechanical interlocking system for two toggle-operated ComPacT NSX100, NSX160, NSX250 or EasyPact CVS100-250 devices. It only allows one breaker ON with the other OFF, or both OFF, and locks with one or two padlocks. The system is fixed-mounted between the two breakers and does not require a plug-in or withdrawable configuration to operate.

Technical Specifications

Reference LV429354
Brand Schneider Electric
Range Compatibility ComPacT NSX100, NSX160, NSX250, NSX100 DC, NSX160 DC, NSX250 DC, EasyPact CVS100, CVS160, CVS250
Component Type Mechanical interlock
Accessory Category Interlocking accessory
Mounting Mode Fixed
Source-Changeover Interlock Mechanical interlocking
Control Type Toggle
Authorized Positions One ON/one OFF, or both OFF
Padlocking 1 or 2 padlocks, 5-8 mm shackle

Selection Notes

Use two identical LV429354 interlocking systems to cover three toggle-operated devices installed side by side. This reference only interlocks toggle controls; for devices fitted with direct rotary handles, use the equivalent rotary-handle interlock instead.

Technical Details

Short Description
The Schneider Electric LV429354 is a mechanical interlocking system for two toggle-operated ComPacT NSX100, NSX160, NSX250 or EasyPact CVS100-250...
Mounting Type
Fixed
Catalog No
LV429354
Delivery Date (Days)
30 days
Model Number
Mechanical Interlock
Tariff Code
853890
