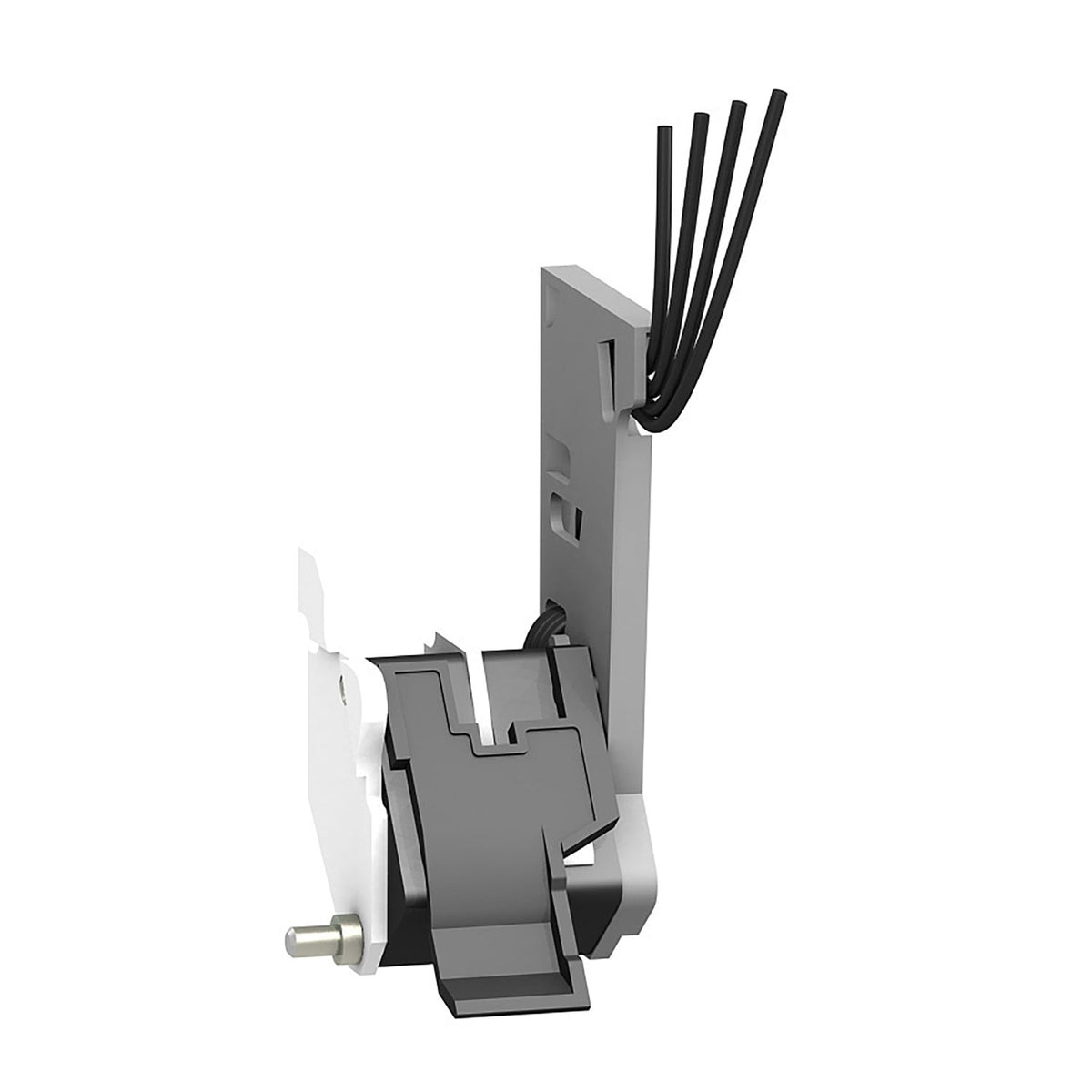

The Schneider Electric LV429346 is a double early-make auxiliary contact (CAM) for ComPact NSX100-630 and PowerPact Multistandard H/J/L moulded case circuit breakers, used with a rotary handle to anticipate device closing. It fits inside the rotary handle unit as two common-point changeover contacts rated 6 A AC-12, with a minimum load of 100 mA at 24 V DC.
LV429346 anticipates breaker closing: wired alongside a rotary handle on ComPact NSX100-630 or PowerPact H/J/L, the two early-make changeover contacts switch before the main poles close, which lets interlock or sequencing logic act ahead of the power circuit. The 6 A AC-12 rating and 100 mA/24 V DC minimum load cover both relay-coil and low-level PLC input wiring on the same contact block. It complies with IEC 60947-5-1.
| Range of product | ComPact NSX100...250, ComPact NSX100...250 DC, ComPact NSX400...630, ComPact NSX400...630 DC |
|---|---|
| Range | ComPact |
| Device short name | 2 early-make contacts |
| Product or component type | Auxiliary contact |
| Device application | Control |
| Range compatibility | ComPact ComPact NSX, ComPact ComPact NSX DC, PowerPact PowerPact H, PowerPact PowerPact J, PowerPact PowerPact L |
| Auxiliary contacts type | Standard |
|---|---|
| Auxiliary contacts operation | Early-make |
| Mounting mode | Drawout |
| [Ith] conventional free air thermal current | 6 A |
| [Ie] rated operational current | AC-12: 6 A at 110 V AC 50/60 Hz, AC-12: 6 A at 220/240 V AC 50/60 Hz, AC-12: 6 A at 24 V AC 50/60 Hz, AC-12: 6 A at 380/440 V AC 50/60 Hz, AC-12: 6 A at 48 V AC 50/60 Hz, AC-12: 6 A at 480 V AC 50/60 Hz, AC-12: 6 A at 660/690 V AC 50/60 Hz, AC-15: 0.1 A at 660/690 V AC 50/60 Hz, AC-15: 1.5 A at 480 V AC 50/60 Hz, AC-15: 2 A at 380/440 V AC 50/60 Hz, AC-15: 4 A at 220/240 V AC 50/60 Hz, AC-15: 5 A at 110 V AC 50/60 Hz, AC-15: 6 A at 24 V AC 50/60 Hz, AC-15: 6 A at 48 V AC 50/60 Hz, DC-12: 0.3 A at 250 V DC, DC-12: 0.6 A at 110 V DC, DC-12: 2.5 A at 48 V DC, DC-12: 6 A at 24 V DC, DC-14: 0.03 A at 250 V DC, DC-14: 0.05 A at 110 V DC, DC-14: 0.2 A at 48 V DC, DC-14: 1 A at 24 V DC |
| Minimum load | 100 mA at 24 V DC |
| Warranty (in months) | 18 |
|---|
| Part number | LV429346 |
|---|---|
| Type designation | 2 early-make contacts |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.000 cm |
| Package 1 Width | 6.500 cm |
| Package 1 Length | 8.200 cm |
| Package 1 Weight | 68.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 45 |
| Package 2 Height | 30 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 3.460 kg |
| Shipping weight | 0.068 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
