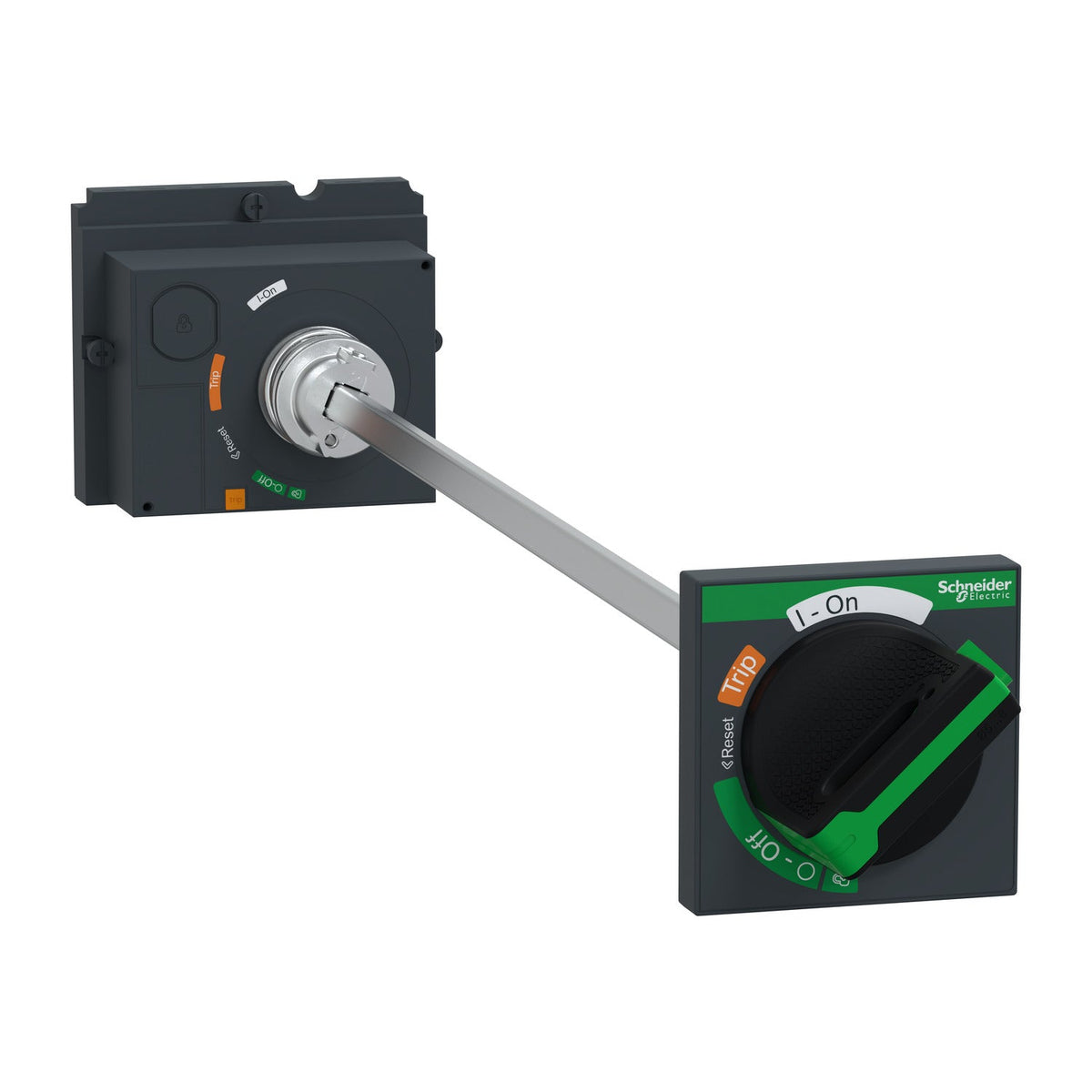

The Schneider Electric LV429338T is a black extended rotary handle for ComPacT/ComPact NSX100, NSX160 and NSX250 circuit breakers (also fitting PowerPact Multistandard and Galaxy VS), rated IP55. It operates the breaker from the switchboard door at a distance of 185 to 600 mm from the breaker, keeping access to the trip-unit settings and push-to-trip button and indicating the O (OFF), I (ON) and tripped positions.
The extended handle is for breakers mounted at the back of a switchboard, operated from the front door across a 185-600 mm gap; where the breaker is directly accessible, the direct rotary handle (IP40) is the simpler and lower-cost alternative. The higher IP55 rating reflects the shaft penetrating the switchboard door, which the direct handle does not need to seal. A Ronis or Profalux keylock can be fitted on the handle base for the same lockout function as a padlock.
| Range of Product | ComPacT NSX100...250 |
|---|---|
| Product or Component Type | Rotary handle |
| Range compatibility | ComPacT NSX100...250, Galaxy VS, PowerPact Multistandard |
| Accessory / Separate Part Type | Control accessories |
| Handle front plate colour | Black |
| Handle colour | Black |
| Rotary handle mounting style | Extended |
| Rotary handle padlocking | Padlock in OFF position, 1 to 3 padlocks |
|---|---|
| Rotary handle mounting location | Front |
| IP Degree of Protection | IP55 |
|---|
| Part number | LV429338T |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606482003903 |
| Warranty (in months) | 18 |
|---|
| Country of origin | IN |
|---|---|
| Shipping weight | 0.658 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for LV429338T is 853890.
The EAN (GTIN) of LV429338T is 3606482003903.
LV429338T ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
