Schneider Electric LV429338 EasyPact CVS100-250 Extended Rotary Handle 185-600 mm Circuit Breaker Accessory

% $-44.80

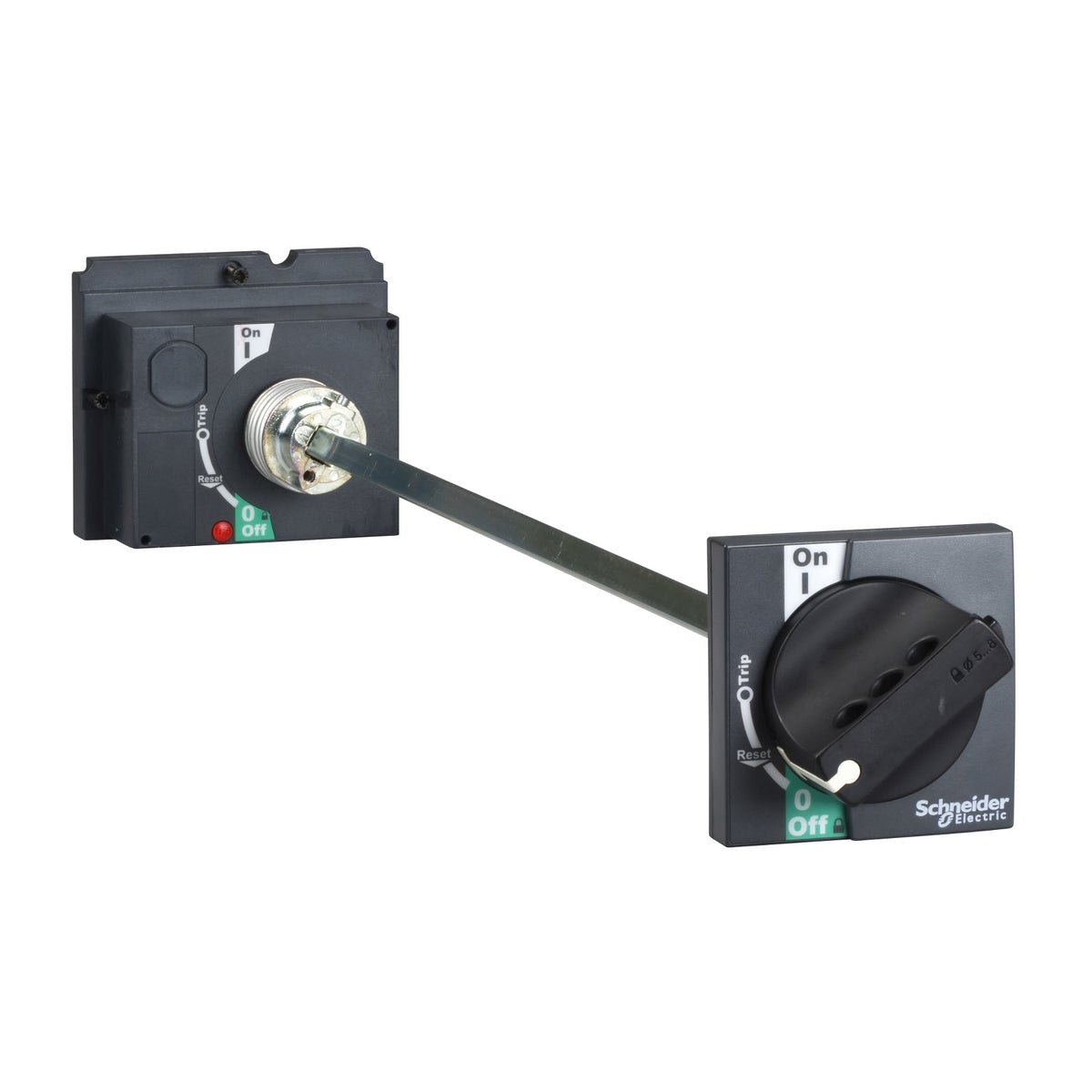

Schneider Electric LV429338 EasyPact CVS extended rotary handle - black IP55
Schneider Electric LV429338 EasyPact CVS extended rotary handle - black IP55

Schneider Electric LV429338 EasyPact CVS100-250 Extended Rotary Handle 185-600 mm Circuit Breaker Accessory

Brand: Schneider Electric
Reference No: LV429338
Catalog No: LV429338
Series: EasyPact CVS100...250
Tariff Code (HS): 853890
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$44.80

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LV429338 is an extended rotary handle for EasyPact CVS100/160/250, ComPact NSX100/160/250 and PowerPact Multistandard H/J moulded case circuit breakers, with a shaft that reaches a breaker mounted 185-600 mm behind the switchboard door. It shows the O/I/tripped positions, keeps the IP55/IK08 degree of protection, and leaves trip unit settings and the push-to-trip button accessible.

Technical Specifications

Reference LV429338
Brand Schneider Electric
Range of Product EasyPact CVS100-250
Product or Component Type Rotary handle
Range Compatibility EasyPact CVS100-250
Accessory / Separate Part Type Control accessories
Rotary Handle Mounting Style Extended
Rotary Handle Mounting Location Front
Shaft Length Range 185-600 mm
Handle Colour Black
Handle Front Plate Colour Black
Rotary Handle Padlocking Padlock in OFF position, 1 to 3 padlocks (5-8 mm shackle, not supplied)
IP Degree of Protection IP55
GTIN 3606480020292

Selection Notes

LV429338 lets the breaker be operated from the switchboard door when the device itself sits 185-600 mm back inside the enclosure, which the direct-mount handle cannot reach. The higher IP55/IK08 rating (versus IP40/IK07 on a direct handle) suits doors exposed to washdown or dust. It padlocks in the OFF position with up to 3 padlocks, and a Ronis or Profalux keylock can be fitted on the handle base as an alternative to a padlock.

Technical Details

Short Description
Extended rotary handle for EasyPact CVS100/160/250, 185-600 mm shaft, black, IP55.
Mounting Type
Extended shaft, front face, 185-600 mm
Protection Type
IP55
Catalog No
LV429338
Delivery Date (Days)
30 days
Model Number
Extended rotary handle
Tariff Code
853890
