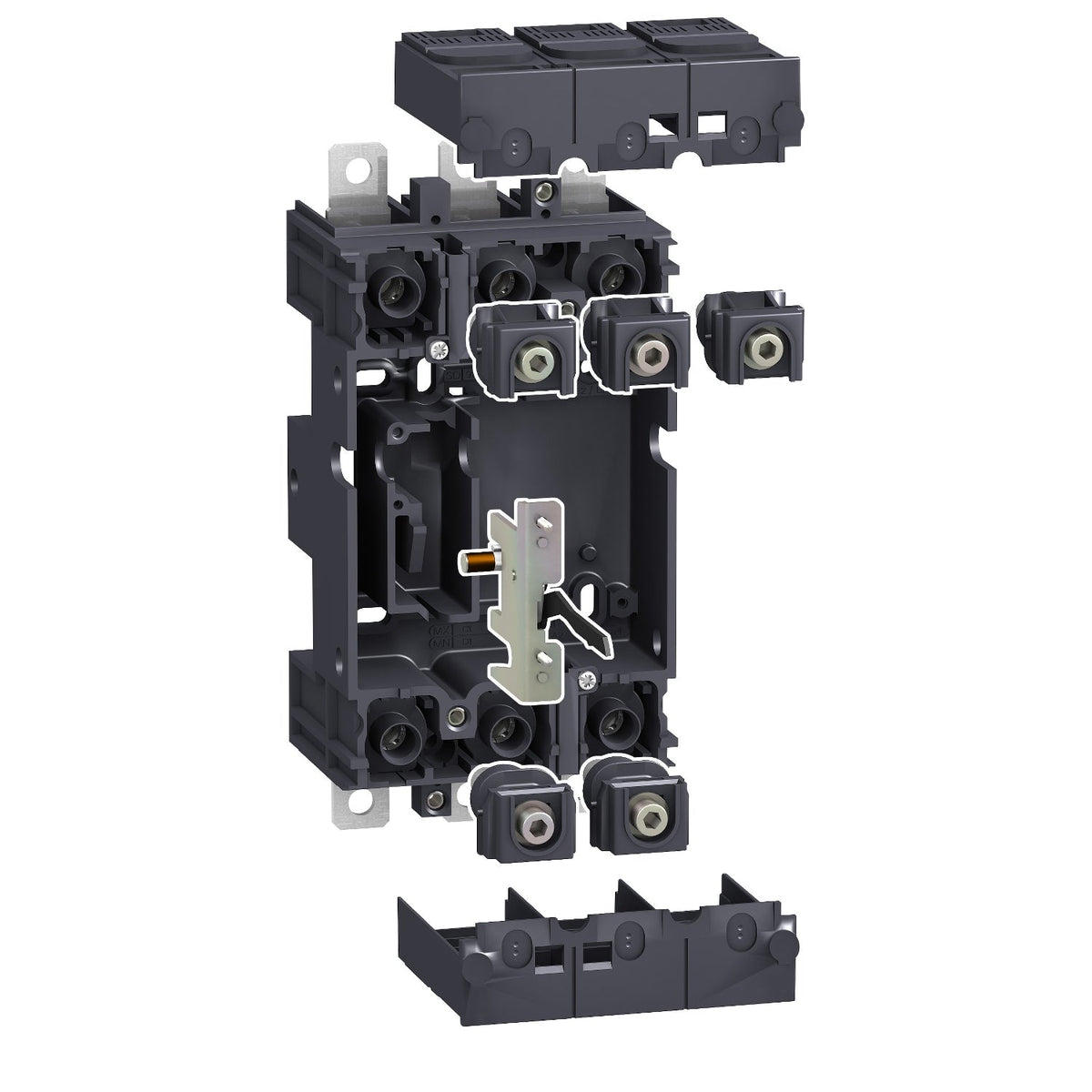

The Schneider Electric LV429289 is a 3-pole plug-in kit rated 250 A for fixed ComPacT NSX100, NSX160 and NSX250 circuit breakers. It converts a fixed breaker into a plug-in configuration that can be installed or extracted without connecting or disconnecting the power circuit. The kit bundles a plug-in base, power connections, two short terminal shields and a safety trip interlock.
Specify this 3P kit for 3-pole fixed NSX100-250 breakers that need rapid withdrawal for maintenance; choose the 4P kit (LV429290) instead for 4-pole devices. The included safety trip interlock (LV429270) is mandatory and already part of the set.
| Product or Component Type | Plug-in kit |
|---|---|
| Accessory / separate part category | Mounting accessory |
| Range compatibility | ComPact ComPact NSX100, ComPact ComPact NSX160, ComPact ComPact NSX250, ComPact Compact NSX100 DC, ComPact Compact NSX160 DC, ComPact Compact NSX250 DC |
| Poles description | 3P |
| Mounting Mode | Plug-in |
|---|---|
| Line Rated Current | 250 A |
| Earth-leakage protection | Without |
| Warranty (in months) | 18 |
|---|
| Part number | LV429289 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606480020940 |
| Country of origin | FR |
|---|---|
| Shipping weight | 1.722 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for LV429289 is 853890.
The EAN (GTIN) of LV429289 is 3606480020940.
LV429289 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
