Schneider ComPacT NSX

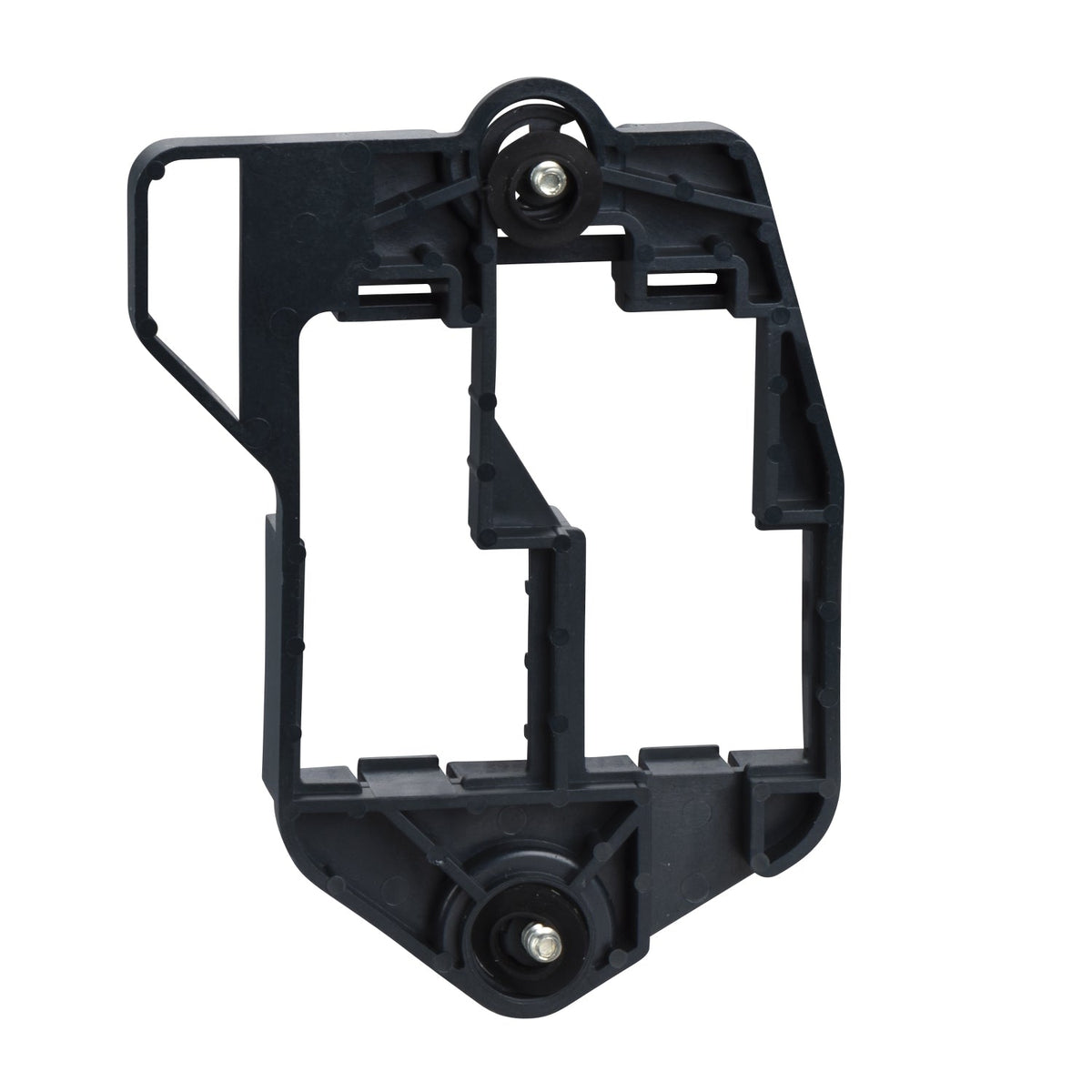

Schneider Electric LV429275 ComPacT NSX100-250 Auxiliary Connector Support 2 Circuit Breaker Accessory

ComPacT NSX100-250 automatic auxiliary connector support, accepts 2 moving connectors.

Range of Product
ComPacT NSX100...250, ComPacT NSX100...250 DC, ComPact NSX100...250, ComPact NSX100...250 DC
Device short name
support
Product or Component Type
Support
Device Application
Wiring
Range compatibility
ComPacT ComPacT NSX100, ComPacT ComPacT NSX160, ComPacT ComPacT NSX250, ComPact ComPact NSX100, ComPact ComPact NSX160, ComPact ComPact NSX250, ComPacT ComPacT NSX DC NSX100 DC, ComPacT ComPacT NSX DC NSX160 DC, ComPacT ComPacT NSX DC NSX250 DC, ComPact Compact NSX100 DC, ComPact Compact NSX160 DC, ComPact Compact NSX250 DC
EAN
3606480021596
Description

About the support

The Schneider Electric LV429275 is the support for the moving part of the automatic auxiliary connector used on ComPacT/ComPact NSX100, NSX160 and NSX250 circuit breakers. It fits plug-in or withdrawable breaker installations and accepts up to 2 moving connectors with 9 wires each, so it completes the auxiliary-wiring path between the breaker and the switchboard.

Selection Notes

This support is the fixed, plug-in-base side of the auxiliary connector; it must be paired with the matching moving-part connector (sold separately) mounted on the breaker to complete the wiring path. It is sized for NSX100/160/250 frames only — NSX400/630 breakers use the equivalent support rated for 3 moving connectors instead.

Specification

Full specification

19 values · Last verified 30 Oct 2026

Main 5

Range of Product ComPacT NSX100...250, ComPacT NSX100...250 DC, ComPact NSX100...250, ComPact NSX100...250 DC
Device short name support
Product or Component Type Support
Device Application Wiring
Range compatibility ComPacT ComPacT NSX100, ComPacT ComPacT NSX160, ComPacT ComPacT NSX250, ComPact ComPact NSX100, ComPact ComPact NSX160, ComPact ComPact NSX250, ComPacT ComPacT NSX DC NSX100 DC, ComPacT ComPacT NSX DC NSX160 DC, ComPacT ComPacT NSX DC NSX250 DC, ComPact Compact NSX100 DC, ComPact Compact NSX160 DC, ComPact Compact NSX250 DC

Contractual warranty 1

Warranty (in months) 18
Show all 19 specifications ↓ Show less ↑13 more values in Identification, Logistics.

Identification 8

Part number LV429275
Type designation support
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606480021596

Logistics 5

Country of origin FR
Shipping weight 0.029 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for LV429275

No documents are on file for this part yet.

Ask us for the datasheet
Quick answers

Questions about the support

What is the HS code of support for customs?

The tariff (HS) code on file for support is 853890.

What is the EAN of support?

The EAN (GTIN) of support is 3606480021596.

Where does support ship from, and how fast?

support ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
