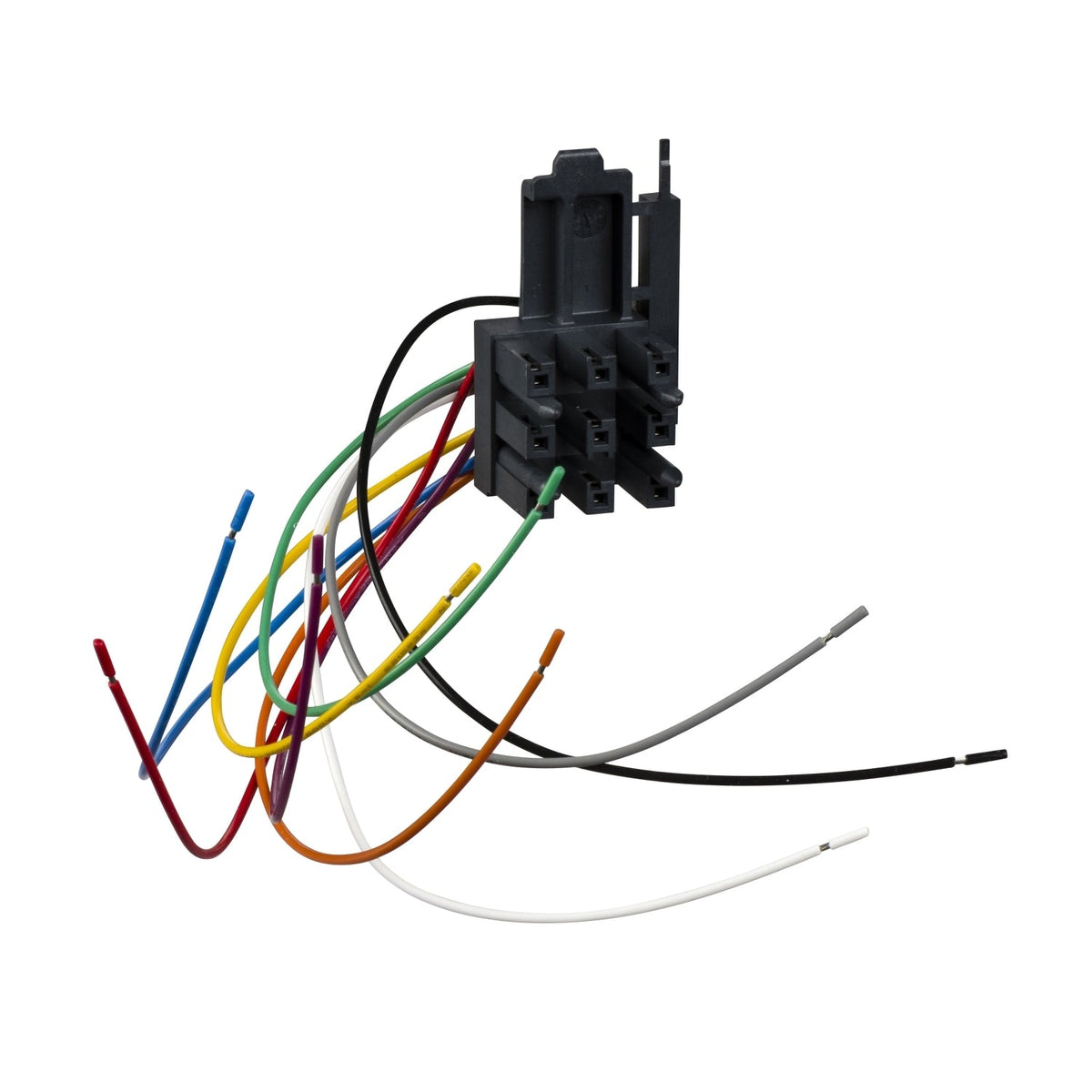

The Schneider Electric LV429274 is the moving part of an automatic auxiliary connector for ComPacT/ComPact NSX100, NSX160 and NSX250 circuit breakers, carrying up to 9 wires. It mounts on plug-in or withdrawable breakers and mates with a dedicated support to connect the breaker's indication contacts, voltage releases, motor mechanisms and MicroLogic trip-unit options without individual wiring at each racking cycle.
This is the breaker-side moving part only; it requires the matching fixed support (mounted on the plug-in base) to complete the auxiliary connection, and NSX100/160/250 breakers accept up to 2 of these 9-wire connectors for a maximum of 18 auxiliary wires. For NSX400/630 frames, use the equivalent moving part sized for that frame instead.
| Range of Product | ComPacT NSX100...250, ComPacT NSX100...250 DC, ComPact NSX100...250, ComPact NSX100...250 DC |
|---|---|
| Device short name | 9-wire moving connector |
| Product or Component Type | Connector kit |
| Device Application | Wiring |
| Range compatibility | ComPacT ComPacT NSX100, ComPacT ComPacT NSX160, ComPacT ComPacT NSX250, ComPact ComPact NSX100, ComPact ComPact NSX160, ComPact ComPact NSX250, ComPacT ComPacT NSX DC NSX100 DC, ComPacT ComPacT NSX DC NSX160 DC, ComPacT ComPacT NSX DC NSX250 DC, ComPact Compact NSX100 DC, ComPact Compact NSX160 DC, ComPact Compact NSX250 DC |
| Total number of wires | 9 |
|---|
| Warranty (in months) | 18 |
|---|
| Part number | LV429274 |
|---|---|
| Type designation | 9-wire moving connector |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606480021589 |
| Country of origin | HK |
|---|---|
| Shipping weight | 0.056 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
