Part number
LV429273
Model no
9-wire fixed connector
$30.43 On request Dispatch — · From TürkiyeGet a Quote
Schneider ComPacT NSX

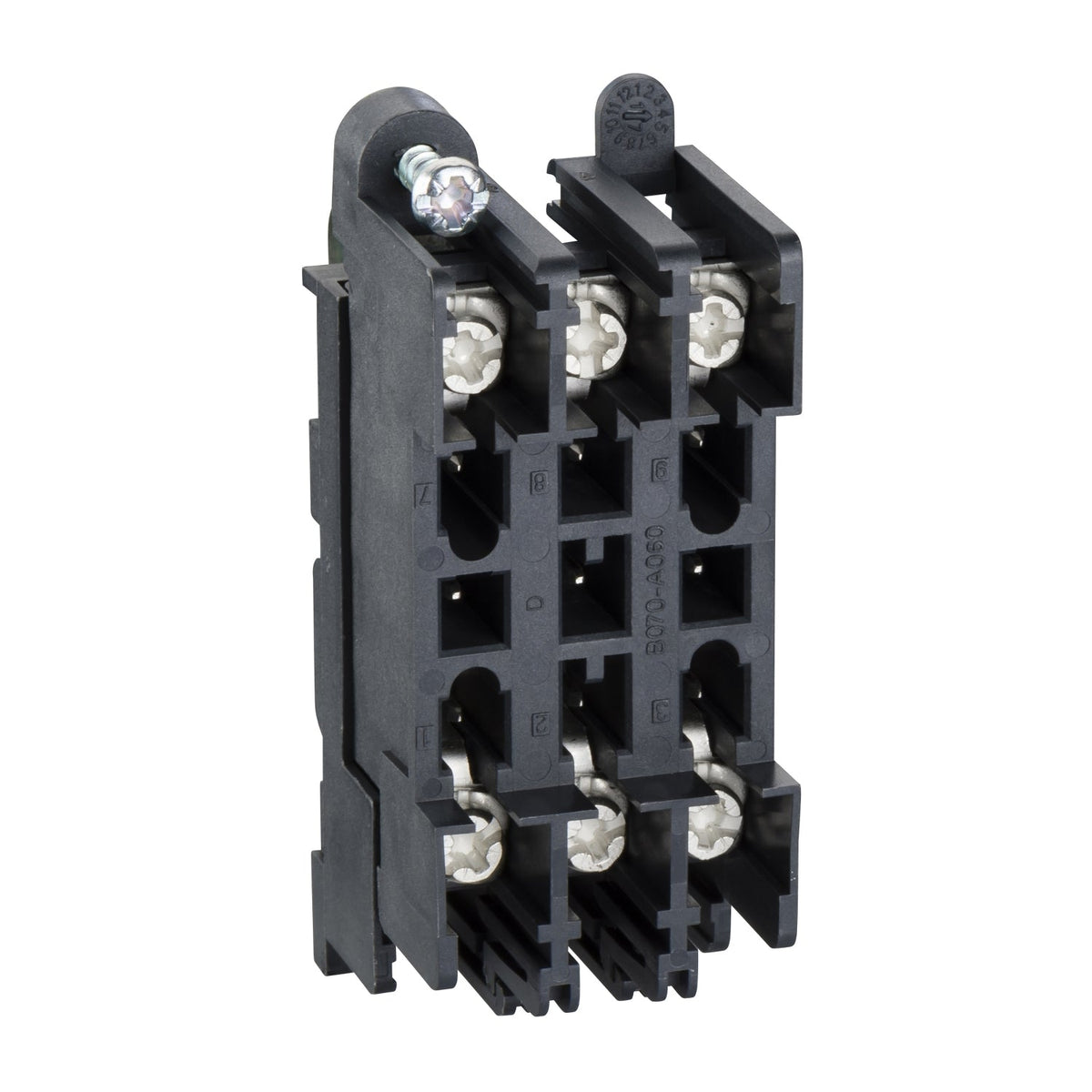

Schneider Electric LV429273 ComPacT NSX100-630 Auxiliary Connector Fixed Part 9-Wire Circuit Breaker Accessory

ComPacT NSX100-630 automatic auxiliary connector, fixed part, 9 wires, for plug-in base.

Range of Product
ComPacT NSX100...250, ComPacT NSX400...630, ComPacT NSX100...250 DC, ComPacT NSX400...630 DC, ComPact NSX100...250, ComPact NSX400...630, ComPact NSX100...250 DC, ComPact NSX400...630 DC
Device short name
9-wire fixed connector
Product or Component Type
Connector kit
Device Application
Wiring
Range compatibility
ComPacT ComPacT NSX, ComPacT ComPacT NSX DC, ComPact ComPact NSX, ComPact ComPact NSX DC
EAN
3606480021572
Description

About the 9-wire fixed connector

The Schneider Electric LV429273 is the fixed part of an automatic auxiliary connector covering the full ComPacT/ComPact NSX100 to NSX630 range, carrying up to 9 wires. It mounts on the plug-in base and terminates on bare cable up to 2.5 mm², wiring the breaker's indication contacts, voltage releases, motor mechanisms and MicroLogic options back to the panel.

Selection Notes

This is the fixed, plug-in-base side of the connector and requires the matching moving-part connector on the breaker to complete the wiring path. NSX100/160/250 breakers accept up to 2 of these 9-wire connectors, while NSX400/630 breakers accept up to 3, so order the quantity to match the number of auxiliary functions on the breaker rather than a single unit per breaker.

Specification

Full specification

20 values · Last verified 30 Oct 2026

Main 5

Range of Product ComPacT NSX100...250, ComPacT NSX400...630, ComPacT NSX100...250 DC, ComPacT NSX400...630 DC, ComPact NSX100...250, ComPact NSX400...630, ComPact NSX100...250 DC, ComPact NSX400...630 DC
Device short name 9-wire fixed connector
Product or Component Type Connector kit
Device Application Wiring
Range compatibility ComPacT ComPacT NSX, ComPacT ComPacT NSX DC, ComPact ComPact NSX, ComPact ComPact NSX DC

Complementary 1

Total number of wires 9

Contractual warranty 1

Warranty (in months) 18
Show all 20 specifications ↓ Show less ↑13 more values in Identification, Logistics.

Identification 8

Part number LV429273
Type designation 9-wire fixed connector
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606480021572

Logistics 5

Country of origin HK
Shipping weight 0.088 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for LV429273

No documents are on file for this part yet.

Ask us for the datasheet
Quick answers

Questions about the 9-wire fixed connector

What is the HS code of 9-wire fixed connector for customs?

The tariff (HS) code on file for 9-wire fixed connector is 853890.

What is the EAN of 9-wire fixed connector?

The EAN (GTIN) of 9-wire fixed connector is 3606480021572.

Where does 9-wire fixed connector ship from, and how fast?

9-wire fixed connector ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
