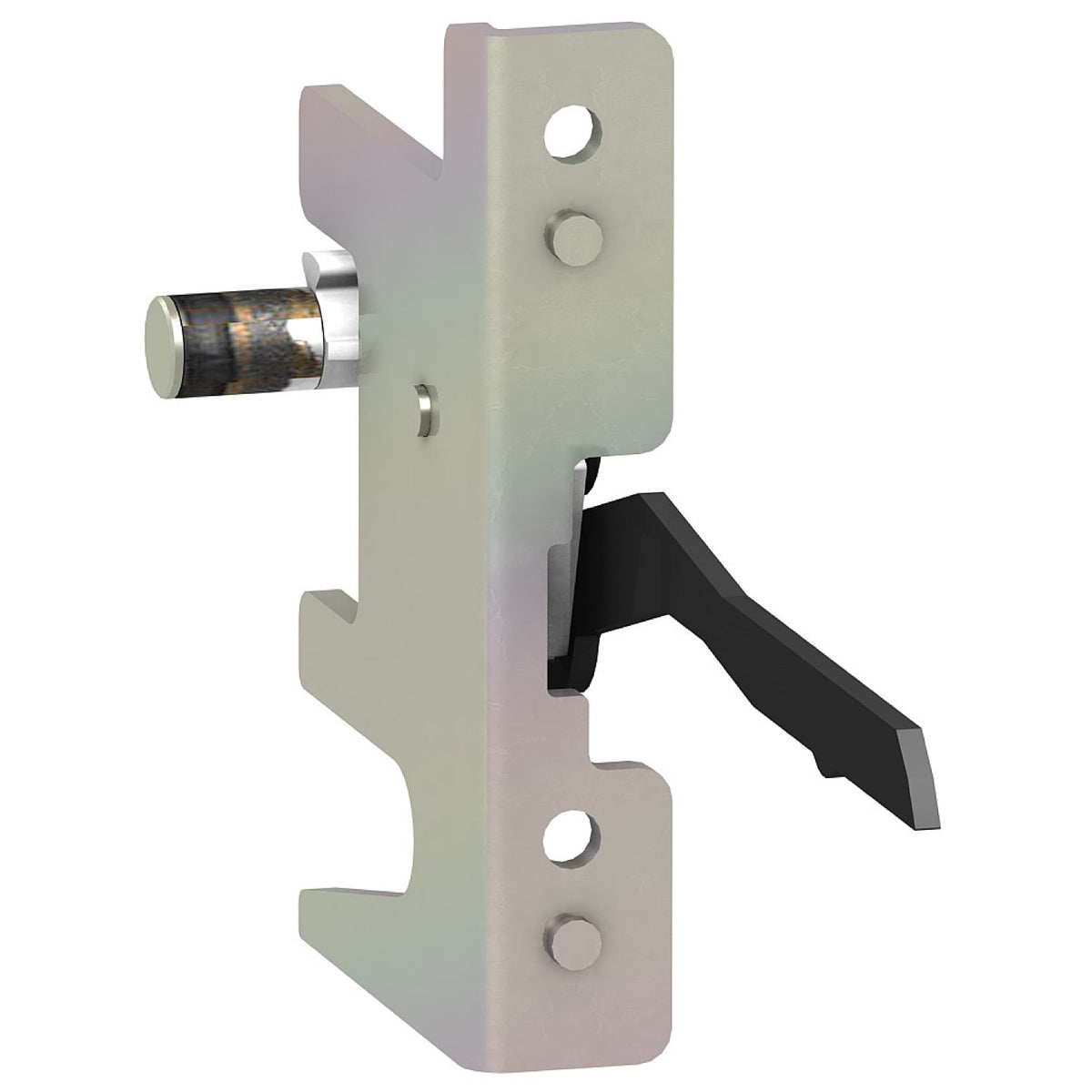

The Schneider Electric LV429270 is a safety trip interlock for 2, 3 or 4-pole ComPacT NSX100, NSX160 and NSX250 plug-in breakers. It forces automatic tripping before the device is engaged or withdrawn, so power circuits can never be connected or disconnected under load. The interlock is installed directly on the breaker and is a mandatory component of the NSX100-250 plug-in configuration.
This interlock is a required part of the NSX100-250 plug-in kit (LV429289 3P / LV429290 4P); it must be installed on the device whenever a fixed breaker is converted to plug-in configuration, not fitted as a standalone upgrade. The same reference covers 2P, 3P and 4P breakers, so one part number serves the whole NSX100-250 plug-in programme.
| Range compatibility | ComPact ComPact NSX100, ComPact ComPact NSX160, ComPact ComPact NSX250, ComPact Compact NSX100 DC, ComPact Compact NSX160 DC, ComPact Compact NSX250 DC |
|---|---|
| Product or Component Type | Safety trip interlock |
| Accessory / separate part category | Interlocking accessory |
| Poles description | 2P, 4P, 3P |
| Warranty (in months) | 18 |
|---|
| Part number | LV429270 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606480021541 |
| Country of origin | PL |
|---|---|
| Shipping weight | 0.057 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for LV429270 is 853890.
The EAN (GTIN) of LV429270 is 3606480021541.
LV429270 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
