Schneider Electric LV429214 ComPact NSX100-250 Vigi 4P/3P Connection Adaptor Circuit Breaker Accessory

% $-148.71

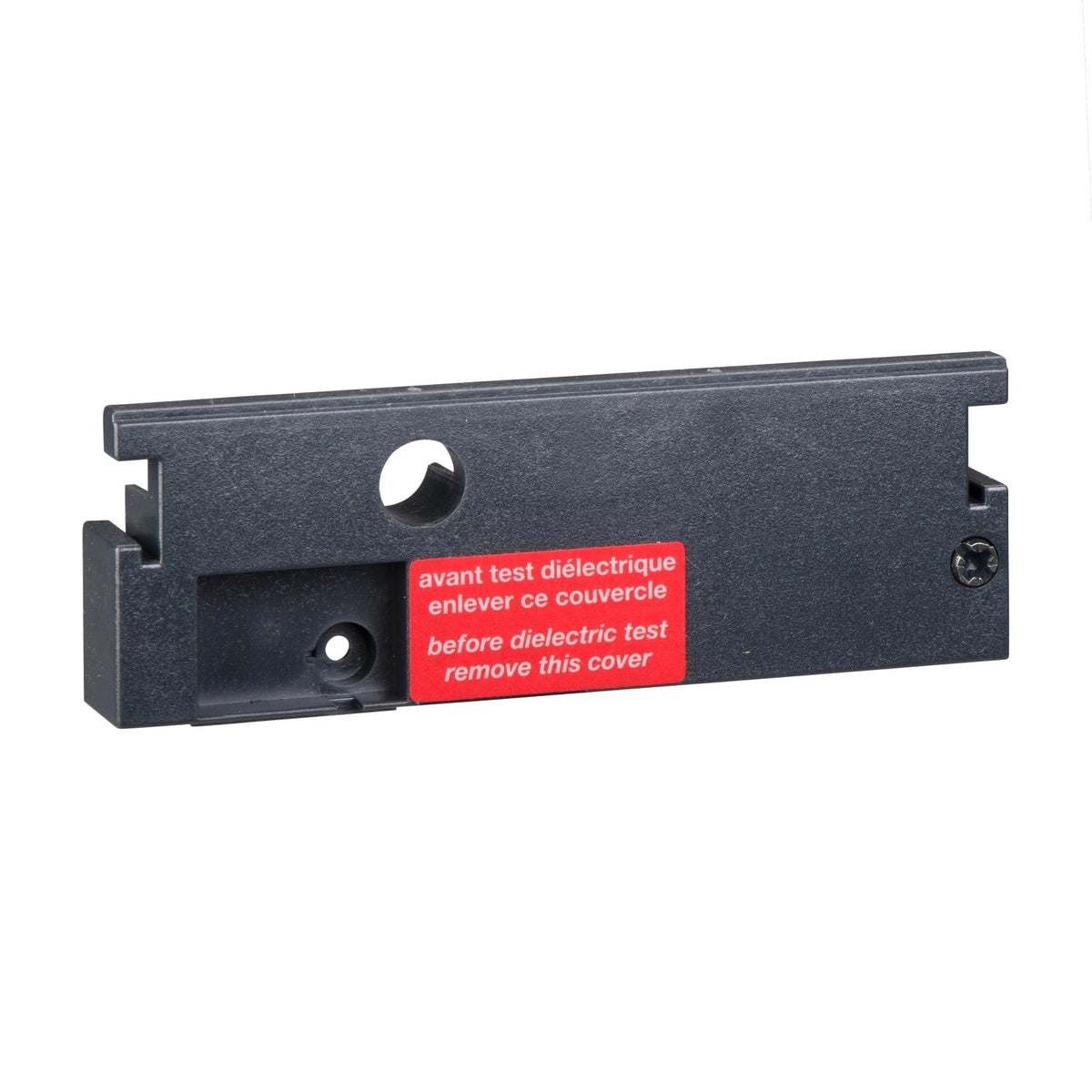

Schneider Electric LV429214 ComPact NSX Vigi 4P/3P connection adaptor
Schneider Electric LV429214 ComPact NSX Vigi 4P/3P connection adaptor

Schneider Electric LV429214 ComPact NSX100-250 Vigi 4P/3P Connection Adaptor Circuit Breaker Accessory

Brand: Schneider Electric
Reference No: LV429214
Catalog No: LV429214
Series: ComPact NSX100...250
Tariff Code (HS): 853890
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$148.71

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LV429214 is a Vigi connection adaptor that lets a 4-pole insulation monitoring module be fitted on a 3-pole ComPact NSX100/160/250 moulded case circuit breaker, rated to the breaker's 250 A frame. It mounts directly on the device terminals so the Vigi module can detect and indicate an insulation drop.

Technical Specifications

Reference LV429214
Brand Schneider Electric
Range of Product ComPact NSX100-250
Device Short Name Vigi 4P/3P adaptor
Product or Component Type Vigi adaptor
Device Application Connection
Range Compatibility ComPact NSX100, NSX160, NSX250
Accessory / Separate Part Category Adaptation accessory
Poles Description 4P module on 3P breaker
[In] Rated Current 250 A

Selection Notes

LV429214 is a mechanical adaptation part, not a Vigi module itself: it is needed only when a 4-pole insulation monitoring module is specified on a 3-pole ComPact NSX100/160/250 breaker rather than a matching 4-pole breaker. It terminates directly on the breaker connection studs with no separate wiring.

Technical Details

Short Description
Vigi 4P/3P connection adaptor for ComPact NSX100/160/250, 250 A rated current.
Mounting Type
Direct, on breaker terminals
Catalog No
LV429214
Delivery Date (Days)
30 days
Model Number
Vigi 4P/3P adaptor
Tariff Code
853890
