Part number
LV428942
Model no
rotary handle
$29.60 On request Dispatch — · From TürkiyeGet a Quote
INS40...160

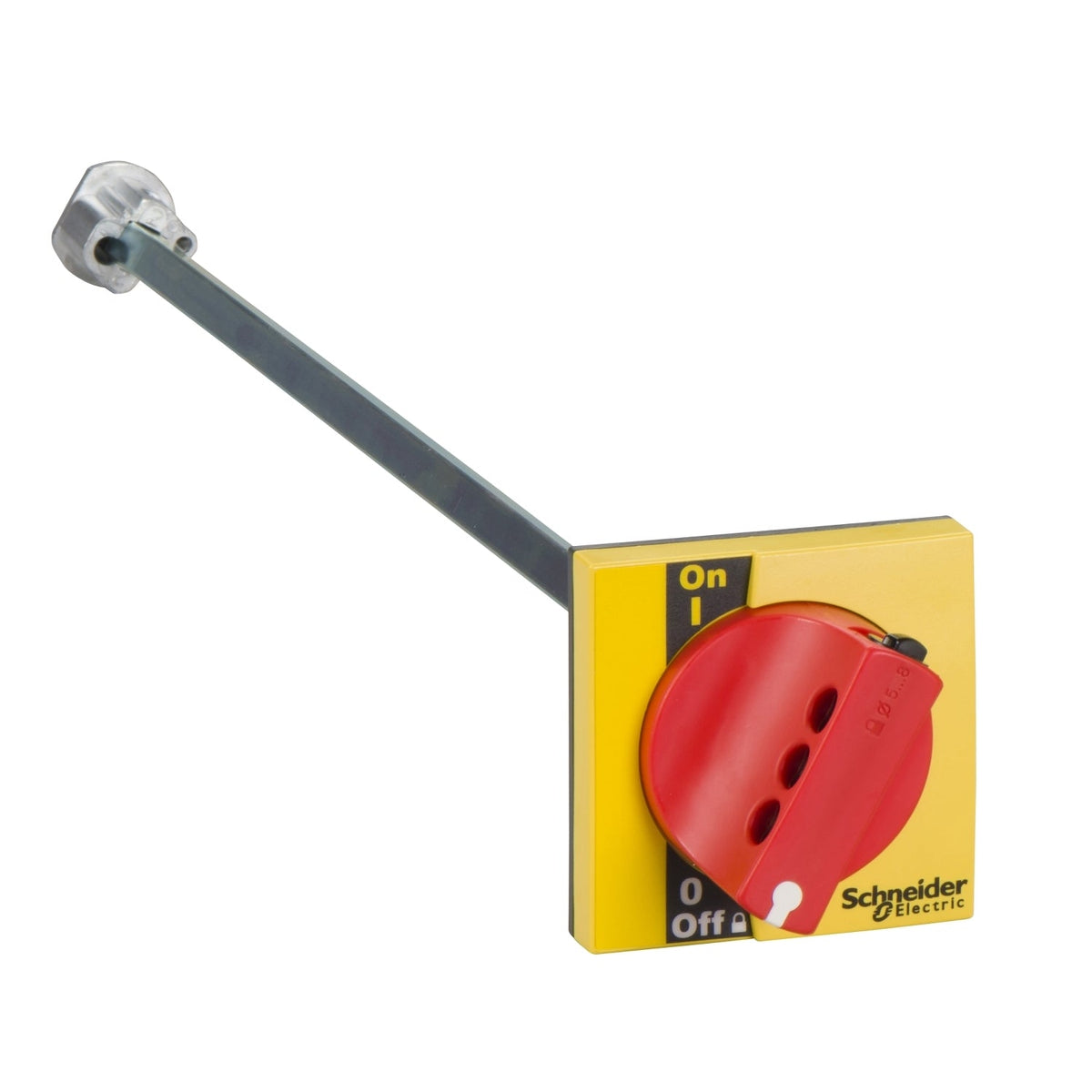

Schneider Electric LV428942 ComPacT INS40-160 Extended Rotary Handle Red/Yellow IP55 Circuit Breaker Accessory

Extended red/yellow rotary handle for ComPacT INS40-160, front control, IP55/IK08, padlockable OFF, emergency-off colour code.

Range of product
INS40...160
Device short name
rotary handle
Product or component type
Rotary handle
Accessory / separate part type
Control accessories
Handle front plate colour
Yellow
Handle colour
Red
Description

About the rotary handle

The Schneider Electric LV428942 is an extended red rotary handle on a yellow front plate for ComPacT INS40 to INS160 switch disconnectors, suitable for isolation on emergency-off applications. Mounted as a front control accessory, it brings IP55 and IK08 protection to the operator interface and can be padlocked in the OFF position.

Selection Notes

The red handle on a yellow front plate is the recognised emergency-off colour code, so this variant is the correct choice wherever the switch disconnector serves as a local emergency stop rather than routine isolation - LV428941's all-black handle covers standard isolation duty instead. The extended mounting style operates the switch disconnector from the enclosure's front panel, and IP55/IK08 keeps the operator interface sealed and impact-resistant on an externally mounted handle.

Specification

Full specification

39 values · Last verified 30 Oct 2026

Main 7

Range of product INS40...160
Device short name rotary handle
Product or component type Rotary handle
Accessory / separate part type Control accessories
Handle front plate colour Yellow
Handle colour Red
Rotary handle mounting style Extended

Complementary 2

Rotary handle padlocking Padlock in OFF position
Rotary handle mounting location Front

Contractual warranty 1

Warranty (in months) 18
Show all 39 specifications ↓ Show less ↑29 more values in Identification, Logistics.

Identification 7

Part number LV428942
Type designation rotary handle
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Logistics 22

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 9.700 cm
Package 1 Width 10.500 cm
Package 1 Length 48.600 cm
Package 1 Weight 446.000 g
Unit Type of Package 2 S04
Number of Units in Package 2 6
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 4.058 kg
Unit Type of Package 3 P12
Number of Units in Package 3 72
Package 3 Height 90.000 cm
Package 3 Width 80.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 60.696 kg
Shipping weight 0.446 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for LV428942

No documents are on file for this part yet.

Ask us for the datasheet
Quick answers

Questions about the rotary handle

What is the HS code of rotary handle for customs?

The tariff (HS) code on file for rotary handle is 853890.

Where does rotary handle ship from, and how fast?

rotary handle ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
