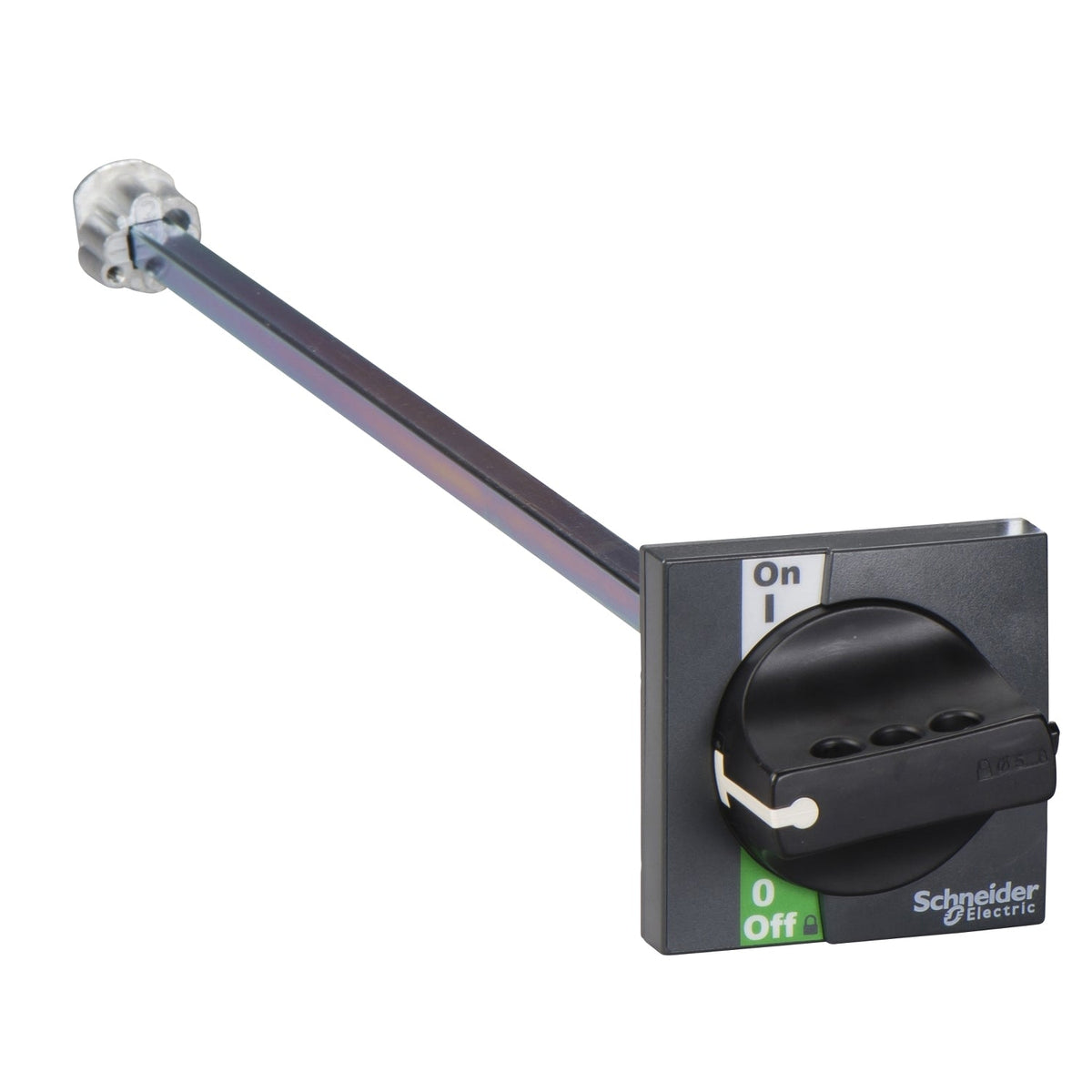

The Schneider Electric LV428941 is an extended black rotary handle for ComPacT INS40 to INS160 switch disconnectors, suitable for isolation on standard applications. Mounted as a front control accessory, it brings IP55 and IK08 protection to the operator interface and can be padlocked in the OFF position. The handle body colour matches the black front plate for a uniform appearance.
The all-black handle and front plate mark this as the standard-isolation variant rather than an emergency-off control - use LV428942's red handle on yellow front where the switch disconnector doubles as an emergency-off device. The extended mounting style operates the switch disconnector from the enclosure's front panel, and IP55/IK08 keeps the operator interface sealed and impact-resistant on an externally mounted handle.
| Range of product | INS40...160 |
|---|---|
| Device short name | rotary handle |
| Product or component type | Rotary handle |
| Accessory / separate part type | Control accessories |
| Handle front plate colour | Black |
| Handle colour | Black |
| Rotary handle mounting style | Extended |
| Rotary handle padlocking | Padlock in OFF position |
|---|---|
| Rotary handle mounting location | Front |
| Warranty (in months) | 18 |
|---|
| Part number | LV428941 |
|---|---|
| Type designation | rotary handle |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 9.700 cm |
| Package 1 Width | 10.700 cm |
| Package 1 Length | 48.700 cm |
| Package 1 Weight | 443.000 g |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 4.190 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 72 |
| Package 3 Height | 90.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 45.896 kg |
| Shipping weight | 0.443 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for rotary handle is 853890.
rotary handle ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
