Schneider ComPacT NSX

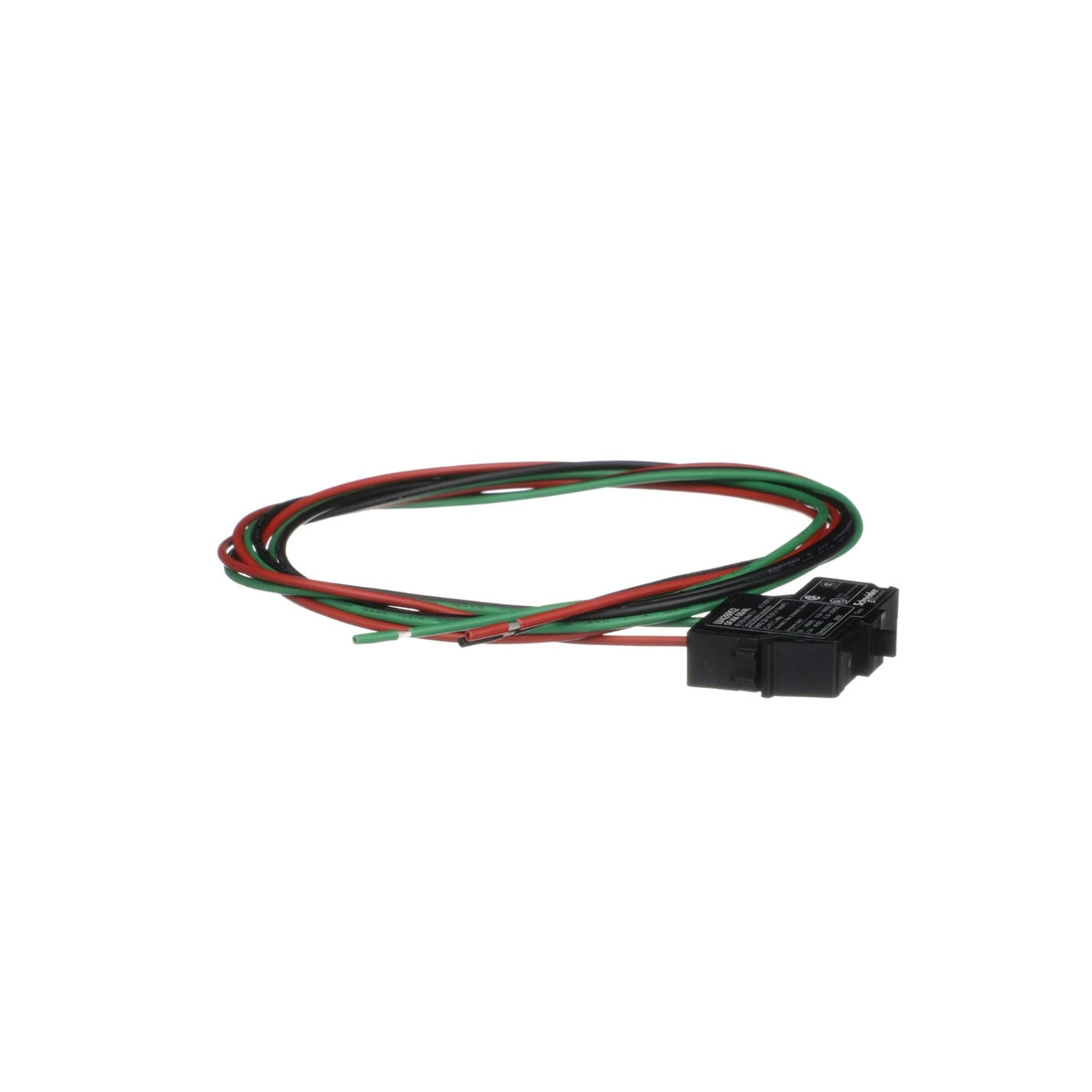

Schneider Electric LV426952 ComPacT NSXm Pre-Wired Auxiliary Contact SD 5 A Circuit Breaker Accessory

The Schneider Electric LV426952 is a pre-wired SD auxiliary contact for ComPacT NSXm and PowerPact B circuit breakers.

Rated operational voltage
24–690 V AC
EAN
3606485444239
Description

About the SD

The Schneider Electric LV426952 is a pre-wired SD auxiliary contact for ComPacT NSXm and PowerPact B circuit breakers. It reports trip status through one normally-open/normally-closed changeover contact rated 5 A, terminated with a 1 m, 18 AWG factory lead. The contact clips onto the breaker, and its presence is visible on the front face through a green flag, complying with IEC 60947-5-1.

Selection Notes

Use this pre-wired SD contact when the panel builder wants trip-status signalling without field termination; the factory-terminated 1 m lead replaces the spring-terminal LV426950 wiring step. It only carries SD (trip) status, not OF (position) status.

Specification

Full specification

45 values · Last verified 30 Oct 2026

Main 5

Product or Component Type Auxiliary contact
Device short name SD
Device Application Breaker status monitoring
Range compatibility PowerPact PowerPact B, ComPact ComPact NSXm
Signal contacts composition 1 NO/NC

Complementary 9

Fault type Overload, Short-circuit
Local signalling Trip indicator for relay trip indicator
Auxiliary contacts type Standard
Mounting Mode Clip-on
[Ith] conventional free air thermal current 5 A
Breaking capacity (A) AC-12: 5 A at 24 V AC 50/60 Hz, AC-12: 5 A at 48 V AC 50/60 Hz, AC-12: 5 A at 110...127 V AC 50/60 Hz, AC-12: 5 A at 220/240 V AC 50/60 Hz, AC-12: 5 A at 380/440 V AC 50/60 Hz, AC-12: 5 A at 660/690 V AC 50/60 Hz, AC-15: 5 A at 24 V AC 50/60 Hz, AC-15: 5 A at 48 V AC 50/60 Hz, AC-15: 4 A at 110...127 V AC 50/60 Hz, AC-15: 3 A at 220/240 V AC 50/60 Hz, AC-15: 2.5 A at 380/440 V AC 50/60 Hz, AC-15: 0.1 A at 660/690 V AC 50/60 Hz, DC-12: 5 A at 24 V DC 50/60 Hz, DC-12: 2.5 A at 48 V DC 50/60 Hz, DC-12: 0.6 A at 110 V DC 50/60 Hz, DC-12: 0.3 A at 250 V DC 50/60 Hz, DC-13: 2.5 A at 24 V DC 50/60 Hz, DC-13: 1.2 A at 48 V DC, DC-13: 0.35 A at 110 V DC, DC-13: 0.05 A at 250 V DC, DC-14: 1 A at 24 V DC, DC-14: 0.2 A at 48 V DC, DC-14: 0.05 A at 110 V DC, DC-14: 0.03 A at 250 V DC
Minimum load 2 mA 17 V DC
Auxiliary connection terminal pre-wired 0.001 in² (0.8 mm²) 18 AWG)stranded copper
Wire stripping length 0.3 in (8 mm) for front connection

Contractual warranty 1

Warranty (in months) 18
Show all 45 specifications ↓ Show less ↑30 more values in Identification, Logistics.

Identification 8

Part number LV426952
Type designation SD
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606485444239

Logistics 22

Unit Type of Package 1 PCE
Nbr. of units in pkg. 1
Package 1 Height 0.4 in (0.9 cm)
Package 1 Width 4.3 in (11 cm)
Package 1 Length 4.7 in (12 cm)
Package weight(Lbs) 1.8 oz (52 g)
Unit Type of Package 2 BB1
Number of Units in Package 2 10
Package 2 Height 2.4 in (6 cm)
Package 2 Width 5.9 in (15 cm)
Package 2 Length 10.6 in (27 cm)
Package 2 Weight 18.8 oz (532 g)
Unit Type of Package 3 S03
Number of Units in Package 3 160
Package 3 Height 11.8 in (30 cm)
Package 3 Width 11.8 in (30 cm)
Package 3 Length 15.7 in (40 cm)
Package 3 Weight 19.928 lb(US) (9.039 kg)
Shipping weight 0.052 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
