Part number
LV426950
Model no
SD, OF
$14.04 On request Dispatch — · From TürkiyeGet a Quote
Schneider ComPacT NSX

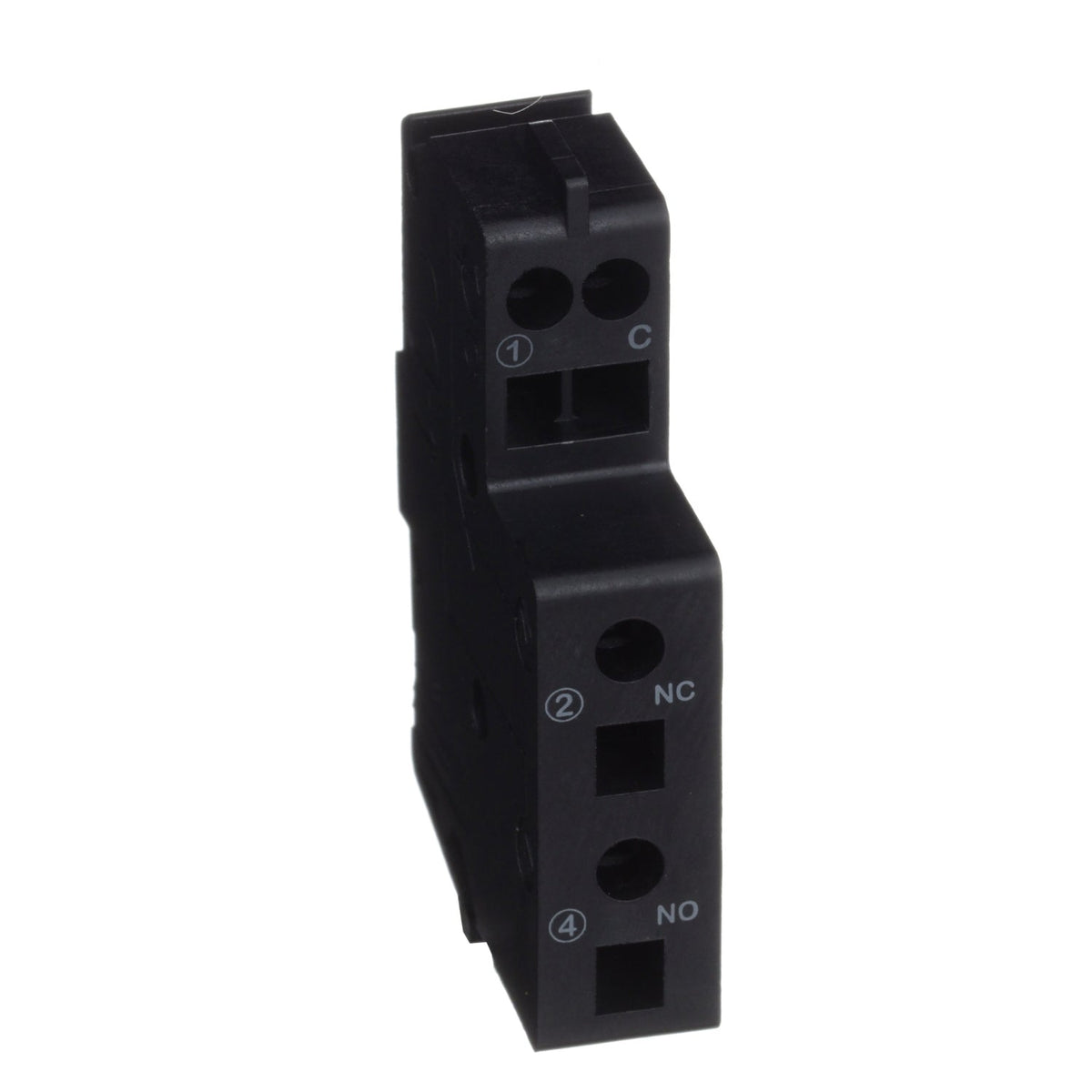

Schneider Electric LV426950 ComPacT NSXm Standard Auxiliary Contact OF/SD 5 A Circuit Breaker Accessory

The Schneider Electric LV426950 is a standard auxiliary contact for ComPacT NSXm and PowerPact B circuit breakers, reporting either OF...

Rated operational voltage
24–690 V AC
EAN
3606485444215
Description

About the SD, OF

The Schneider Electric LV426950 is a standard auxiliary contact for ComPacT NSXm and PowerPact B circuit breakers, reporting either OF (open/closed position) or SD (trip indication) status through one normally-open/normally-closed changeover contact rated 5 A. It clips onto the breaker, and its presence is visible on the front face through green flags, complying with IEC 60947-5-1.

Selection Notes

ComPacT NSXm embeds two auxiliary-contact positions, so this standard clip-on part can be set up as either OF (contact position) or SD (trip indication) depending on where it is fitted. Choose the pre-wired LV426952 instead when the application only needs SD signalling and a factory-terminated 1 m lead.

Specification

Full specification

28 values · Last verified 30 Oct 2026

Main 5

Product or Component Type Auxiliary contact
Device short name SD, OF
Device Application Breaker status monitoring
Range compatibility PowerPact PowerPact B, ComPact ComPact NSXm
Signal contacts composition 1 NO/NC

Complementary 9

Fault type Overload, Short-circuit
Local signalling ON/OFF indication for open/close, Trip indicator for relay trip indicator
Auxiliary contacts type Standard
Mounting Mode Clip-on
[Ith] conventional free air thermal current 5 A
Breaking capacity (A) AC-12: 5 A at 24 V AC 50/60 Hz, AC-12: 5 A at 48 V AC 50/60 Hz, AC-12: 5 A at 110...127 V AC 50/60 Hz, AC-12: 5 A at 220/240 V AC 50/60 Hz, AC-12: 5 A at 380/440 V AC 50/60 Hz, AC-12: 5 A at 660/690 V AC 50/60 Hz, AC-15: 5 A at 24 V AC 50/60 Hz, AC-15: 5 A at 48 V AC 50/60 Hz, AC-15: 4 A at 110...127 V AC 50/60 Hz, AC-15: 3 A at 220/240 V AC 50/60 Hz, AC-15: 2.5 A at 380/440 V AC 50/60 Hz, AC-15: 0.1 A at 660/690 V AC 50/60 Hz, DC-12: 5 A at 24 V DC 50/60 Hz, DC-12: 2.5 A at 48 V DC 50/60 Hz, DC-12: 0.6 A at 110 V DC 50/60 Hz, DC-12: 0.3 A at 250 V DC, DC-13: 2.5 A at 24 V DC, DC-13: 1.2 A at 48 V DC, DC-13: 0.35 A at 110 V DC, DC-13: 0.05 A at 250 V DC, DC-14: 1 A at 24 V DC, DC-14: 0.2 A at 48 V DC, DC-14: 0.05 A at 110 V DC, DC-14: 0.03 A at 250 V DC
Minimum load 2 mA 17 V DC
Auxiliary connection terminal spring
Wire stripping length 0.3 in (8 mm) for front connection

Contractual warranty 1

Warranty (in months) 18
Show all 28 specifications ↓ Show less ↑13 more values in Identification, Logistics.

Identification 8

Part number LV426950
Type designation SD, OF
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606485444215

Logistics 5

Country of origin CN
Shipping weight 0.025 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
