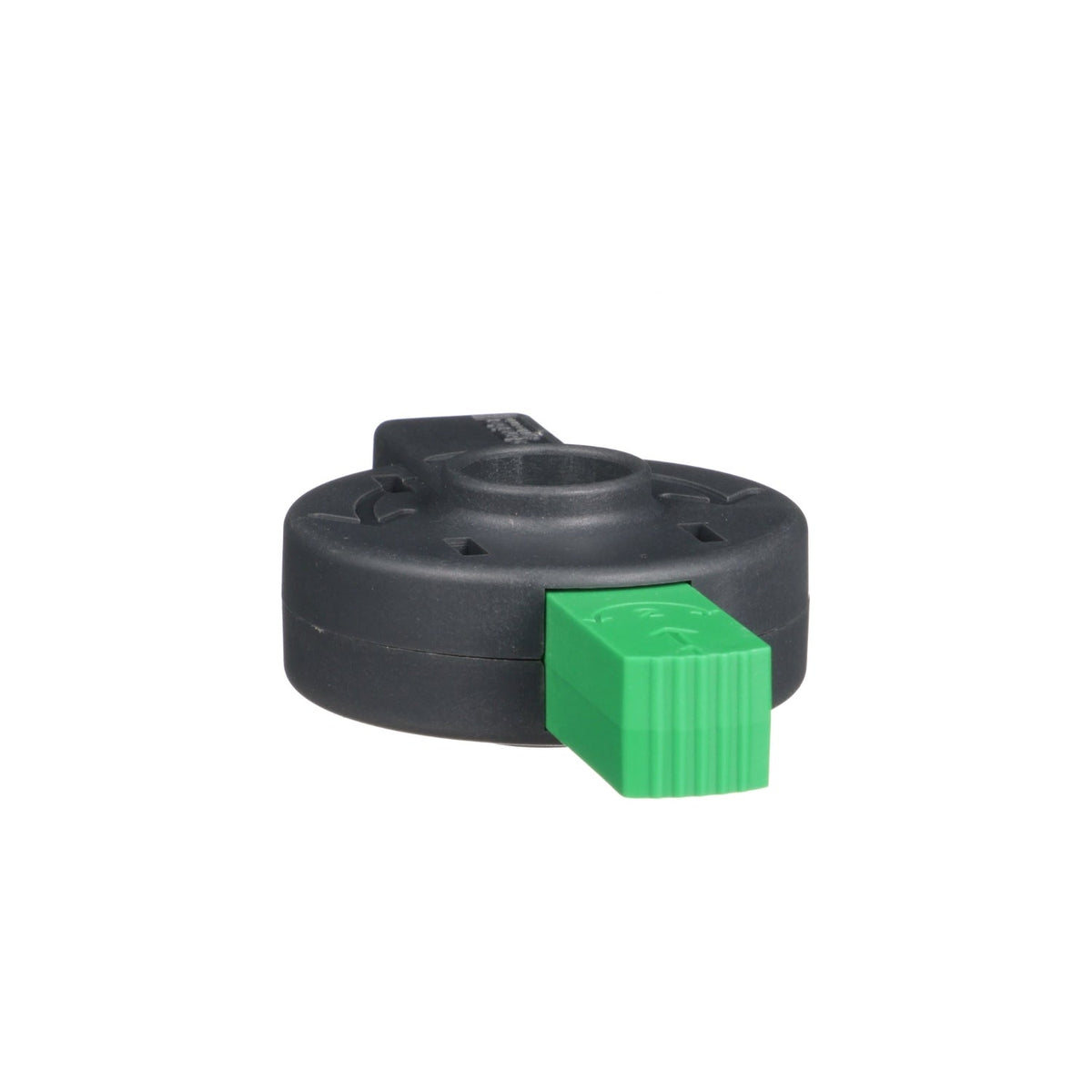

The Schneider Electric LV426937 is an open-door shaft operator for extended rotary handles on ComPacT NSXm, ComPacT NSX, PowerPact B and TeSys GV4/BV4 devices. It lets the breaker be operated through the handle while the switchboard door is open, and complies with UL 508A. The operator is a front-mounted control accessory that extends the rotary handle's reach for maintenance access.
Add this operator only when extended rotary handles are fitted and the switchboard must stay operable with the door open, for example during maintenance or UL 508A panel inspection; it is not needed with a direct-mount handle. It fits the broad NSXm/NSX/PowerPact/TeSys family listed in the compatibility data, so one reference covers several breaker lines.
| Range compatibility | PowerPact PowerPact B, ComPact ComPact NSXm, TeSys TeSys GV4, TeSys TeSys BV4, PowerPact PowerPact H, PowerPact PowerPact J, PowerPact PowerPact L, Compact NSX ComPact NSX |
|---|---|
| Product or Component Type | Open door shaft operator |
| Accessory / Separate Part Type | Control accessories |
| Enclosure mounting style | Extended |
| Product mounting position | Front |
|---|
| Standards | NFPA 79/UL 508 |
|---|
| Part number | LV426937 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606485444383 |
| Warranty (in months) | 18 |
|---|
| Country of origin | HU |
|---|---|
| Shipping weight | 0.051 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for LV426937 is 853890.
The EAN (GTIN) of LV426937 is 3606485444383.
LV426937 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
