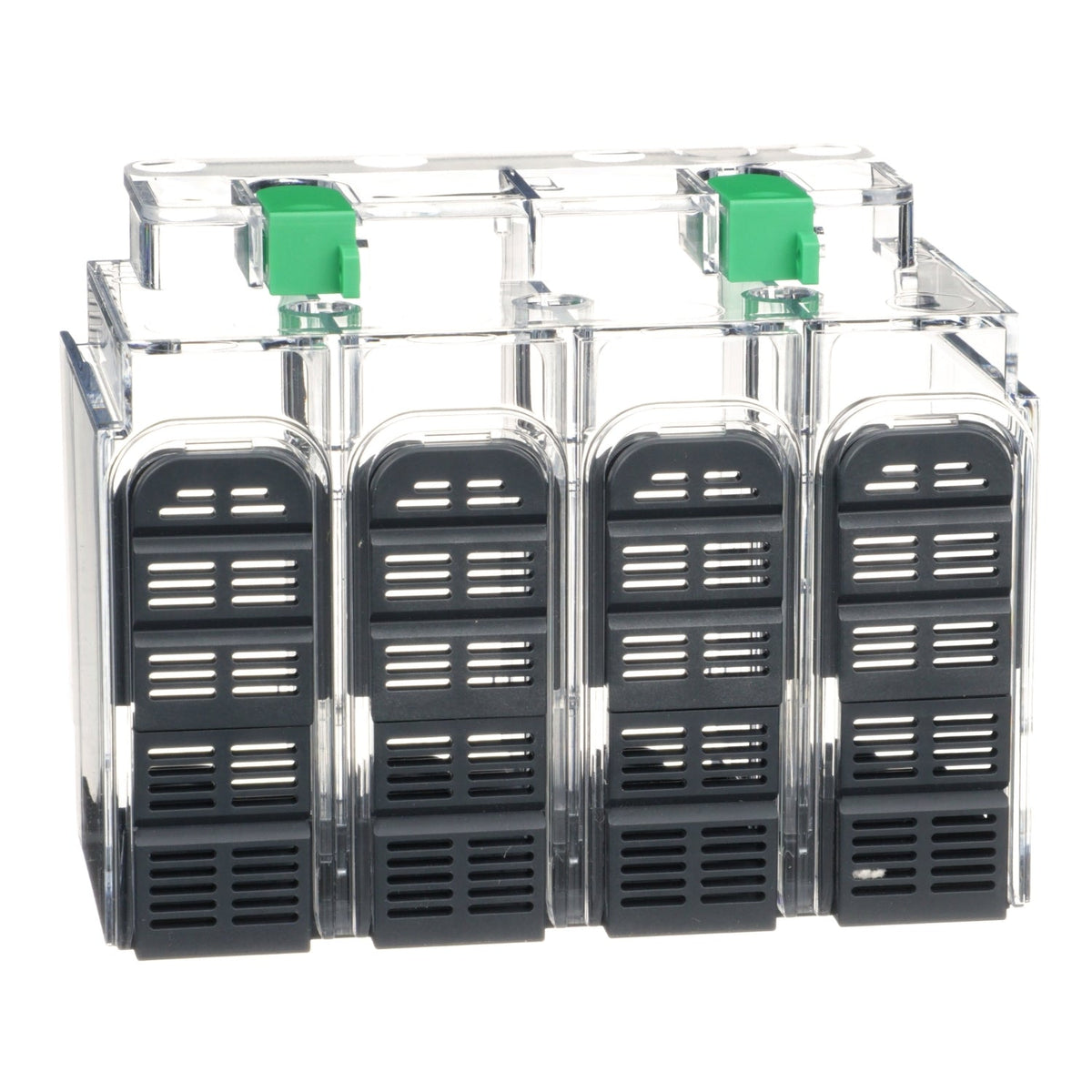

The Schneider Electric LV426913 is a long terminal shield for 4-pole ComPacT NSXm and PowerPact B circuit breakers. It covers cable or busbar connections to prevent direct contact with the power circuit and can be mounted upstream or downstream, reaching IP40. It can be fitted or removed after the breaker is installed, even with auxiliary wiring already in place, at a 35 mm connection pitch.
Use the 4P version on 4-pole NSXm/PowerPact B breakers; it can be fitted or removed after installation even with auxiliary wiring in place. Pick the 3P shield (LV426912) instead for 3-pole breakers. Both references share the same 35 mm connection pitch and IP40/IK07 insulation rating, so stock planning only needs to track pole count.
| Range compatibility | ComPact ComPact NSXm, PowerPact PowerPact B |
|---|---|
| Product or Component Type | Long terminal shield |
| Accessory / Separate Part Type | Insulation accessories |
|---|---|
| Poles description | 4P |
| Quantity per Set | Set of 1 |
| Location of connection | Upstream, Downstream |
| Connection pitch | 1.4 in (35 mm) |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Warranty (in months) | 18 |
|---|
| Part number | LV426913 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606485444277 |
| Country of origin | CN |
|---|---|
| Shipping weight | 0.13 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for LV426913 is 853890.
The EAN (GTIN) of LV426913 is 3606485444277.
LV426913 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
