Schneider Electric LV426806 ComPacT NSXm Standard Undervoltage Release MN 380-415 V Circuit Breaker Accessory

% $-72.14

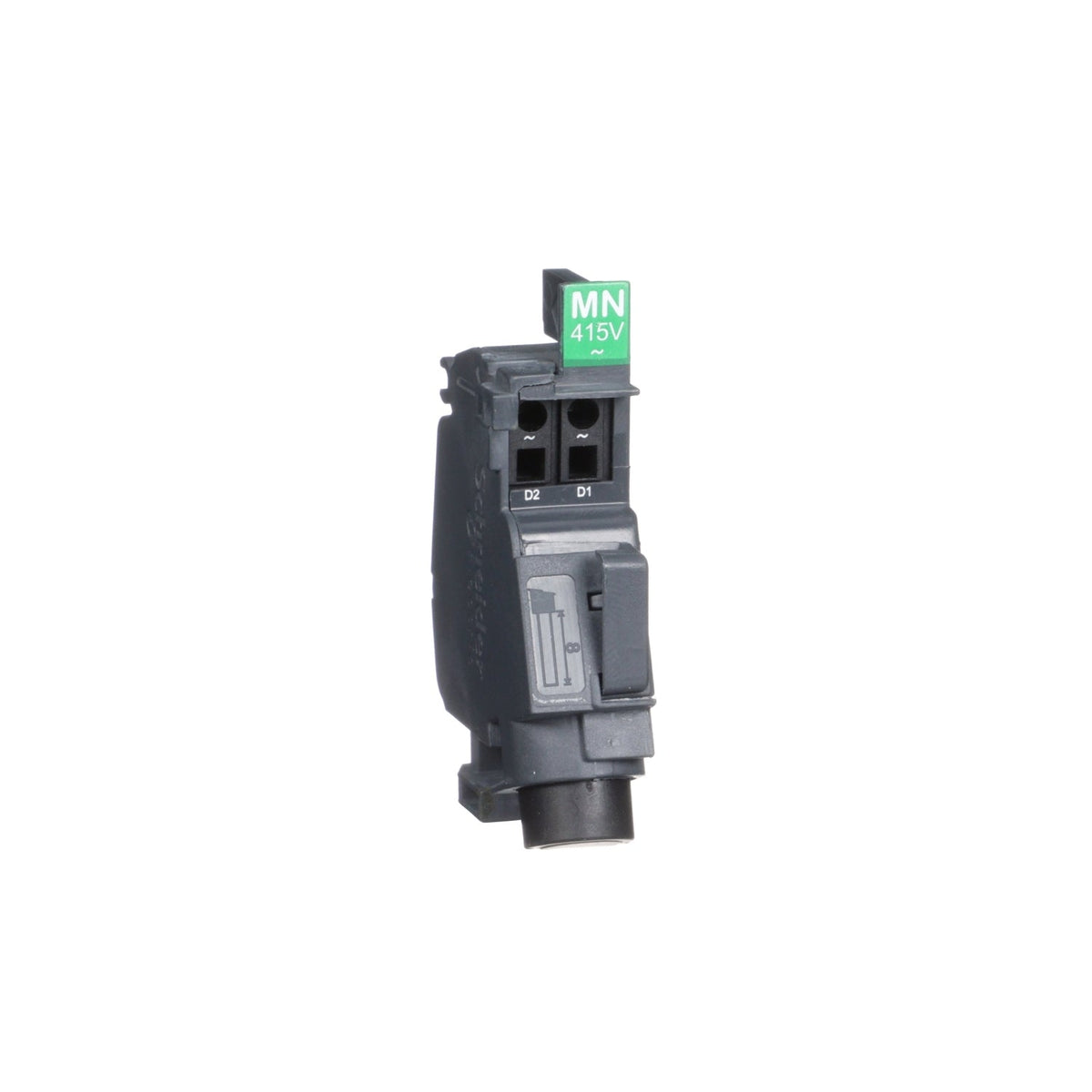

Schneider Electric LV426806 ComPacT NSXm standard undervoltage release MN - 380-415 V AC
Schneider Electric LV426806 ComPacT NSXm standard undervoltage release MN - 380-415 V AC

Schneider Electric LV426806 ComPacT NSXm Standard Undervoltage Release MN 380-415 V Circuit Breaker Accessory

Brand: Schneider Electric
Reference No: LV426806
Catalog No: LV426806
Series: ComPacT NSXm
Tariff Code (HS): 853890
Rated Voltage: 380-415 V AC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$72.14

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LV426806 is a standard MN undervoltage release for ComPacT NSXm and PowerPact B circuit breakers, rated 380/415 V AC 50 Hz. It is a one-click, spring-terminal auxiliary visible from the breaker front, used for emergency-off or failsafe remote-tripping applications, and trips the breaker when the control voltage drops below 35% of its rated value.

Technical Specifications

SKU LV426806
Brand Schneider Electric
GTIN 3606485412832
Range ComPacT NSXm
Product type Voltage release
Device application Control
Voltage release type Opening coil, undervoltage release
Control type Standard
[Uc] Control circuit voltage 380-415 V AC 50 Hz
Range compatibility ComPacT NSXm, PowerPact B
Operating threshold 0.35-0.7 x Un opening; 0.85 x Un closing
Response time < 50 ms
Auxiliary connection terminal Spring

Selection Notes

The MN release is a factory-fit, one-per-breaker option on ComPacT NSXm and PowerPact B: each breaker embeds either an MN undervoltage coil or an MX shunt coil, never both, so confirm which function the application needs before ordering. This 380/415 V AC 50 Hz coil suits a three-phase line-to-line control supply; the 220/240 V AC (or 208/240 V AC 60 Hz) variant covers single-phase control voltages instead.

Technical Details

Short Description
ComPacT NSXm standard undervoltage release MN, 380/415 V AC 50 Hz.
Rated Voltage (VAC)
380-415 V AC
Mounting Type
Internal, breaker-mounted
Catalog No
LV426806
Delivery Date (Days)
30 days
Model Number
MN
Tariff Code
853890
