Part number
LV426804
Model no
MN
$153.07 On request Dispatch — · From TürkiyeGet a Quote
Schneider ComPacT NSX

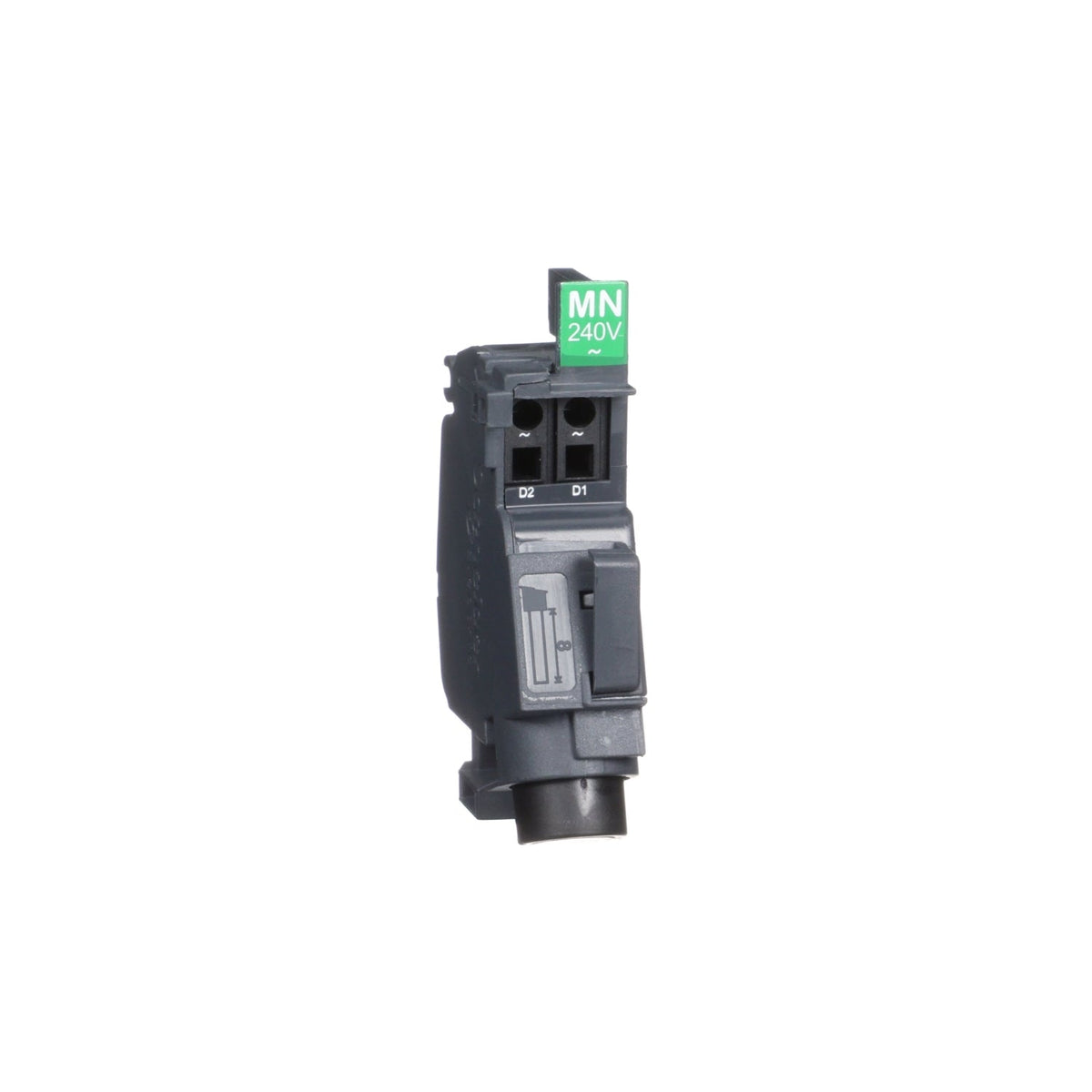

Schneider Electric LV426804 ComPacT NSXm Standard Undervoltage Release MN 220-240 V Circuit Breaker Accessory

ComPacT NSXm standard undervoltage release MN, 220/240 V AC 50 Hz or 208/240 V AC 60 Hz.

Rated operational voltage
220–240 V AC
EAN
3606485412818
Description

About the MN

The Schneider Electric LV426804 is a standard MN undervoltage release for ComPacT NSXm and PowerPact B circuit breakers, rated 220/240 V AC 50 Hz or 208/240 V AC 60 Hz. It is a one-click, spring-terminal auxiliary visible from the breaker front, used for emergency-off or failsafe remote-tripping applications, and trips the breaker when the control voltage drops below 35% of its rated value.

Selection Notes

The MN release is a factory-fit, one-per-breaker option on ComPacT NSXm and PowerPact B: each breaker embeds either an MN undervoltage coil or an MX shunt coil, never both, so confirm which function the application needs before ordering. This 220/240 V AC 50 Hz (or 208/240 V AC 60 Hz) coil suits standard single-phase European or split North American control supplies; the 380/415 V AC variant covers three-phase line-to-line control voltages instead.

Specification

Full specification

43 values · Last verified 30 Oct 2026

Main 9

Range ComPact
Range of Product ComPacT NSXm
Device short name MN
Product or Component Type Voltage release
Device Application Control
Voltage release type Opening coil, Undervoltage release
Control Type Standard
[Uc] control circuit voltage 220...240 V AC 50 Hz, 208...240 V AC 60 Hz
Range compatibility ComPact ComPacT NSXm, ComPact ComPact NSXm, PowerPact PowerPact B

Complementary 3

Operating threshold 0.35...0.7 x Un opening, 0.85 x Un closing
Response time < 50 ms
Auxiliary connection terminal spring

Contractual warranty 1

Warranty (in months) 18
Show all 43 specifications ↓ Show less ↑30 more values in Identification, Logistics.

Identification 8

Part number LV426804
Type designation MN
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606485412818

Logistics 22

Unit Type of Package 1 PCE
Nbr. of units in pkg. 1
Package 1 Height 1.378 in (3.500 cm)
Package 1 Width 2.362 in (6.000 cm)
Package 1 Length 3.346 in (8.500 cm)
Package weight(Lbs) 2.145 oz (60.800 g)
Unit Type of Package 2 BB1
Number of Units in Package 2 10
Package 2 Height 3.543 in (9.000 cm)
Package 2 Width 5.118 in (13.000 cm)
Package 2 Length 7.283 in (18.500 cm)
Package 2 Weight 23.069 oz (654.000 g)
Unit Type of Package 3 S03
Number of Units in Package 3 40
Package 3 Height 11.811 in (30.000 cm)
Package 3 Width 11.811 in (30.000 cm)
Package 3 Length 15.748 in (40.000 cm)
Package 3 Weight 6.349 lb(US) (2.880 kg)
Shipping weight 0.061 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for LV426804

No documents are on file for this part yet.

Ask us for the datasheet
Quick answers

Questions about the MN

Which supply voltage is MN rated for?

The rated operational voltage of MN is 220–240 V AC.

What is the HS code of MN for customs?

The tariff (HS) code on file for MN is 853890.

What is the EAN of MN?

The EAN (GTIN) of MN is 3606485412818.

Where does MN ship from, and how fast?

MN ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
