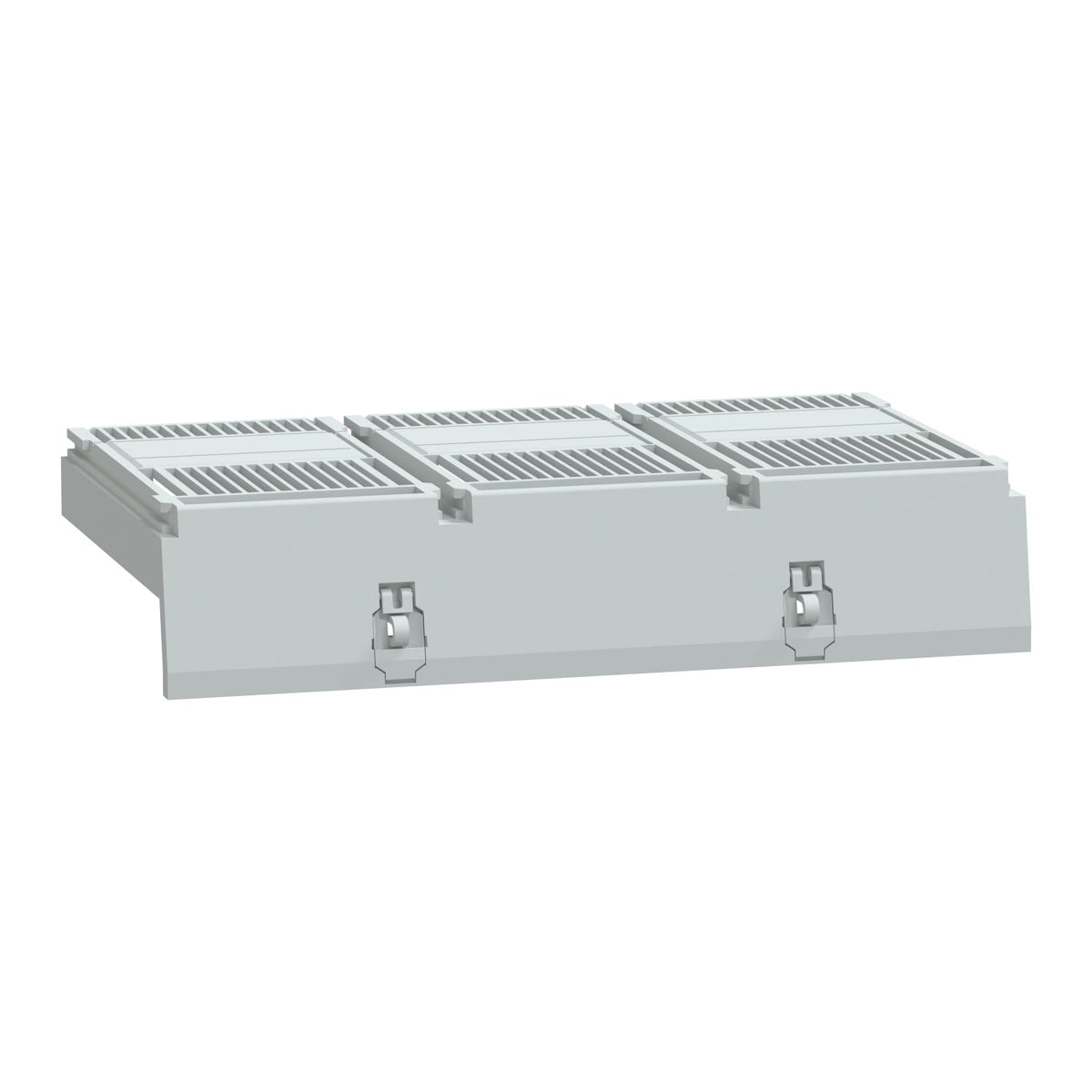

The Schneider Electric G80STSHD3P is a 3P short terminal shield for the GoPact MCCB 800 moulded case circuit breaker, giving IP40 protection against direct contact at the power terminals to IEC 60529. It is sized for fixed or plug-in versions fitted with rear connectors, and is classified as a spare-part insulation accessory.
This 'short' shield fits a breaker wired with rear connectors, where the terminal reach is shorter than on a spreader or bare-cable-connector build - use the long terminal shield instead on those configurations. It mounts on either the upstream or downstream terminal set, so one kit (quantity 2) covers one side of the 3P GoPact MCCB 800; fit a second kit for the opposite side.
| Range of product | GoPact MCCB |
|---|---|
| Product or component type | Short terminal shield |
| Device application | Insulation |
| Range compatibility | GoPact MCCB 800 |
| Poles description | 3P |
| Quantity | 2 |
| Localisation on device | Upstream, Downstream |
|---|---|
| IP degree of protection | IP40 conforming to IEC 60529 |
| Warranty (in months) | 18 |
|---|
| Part number | G80STSHD3P |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 9.1 cm |
| Package 1 Width | 17.1 cm |
| Package 1 Length | 28.1 cm |
| Package 1 Weight | 0.35 kg |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 30 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 2.7 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 72 |
| Package 3 Height | 149 cm |
| Package 3 Width | 60 cm |
| Package 3 Length | 80 cm |
| Package 3 Weight | 41 kg |
| Shipping weight | 0.35 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for G80STSHD3P is 853890.
G80STSHD3P ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
