Schneider Electric G80SPDR4P630 GoPact MCCB 800 Terminal Extension Spreader 4P 630 A Circuit Breaker Accessory

% $-164.13

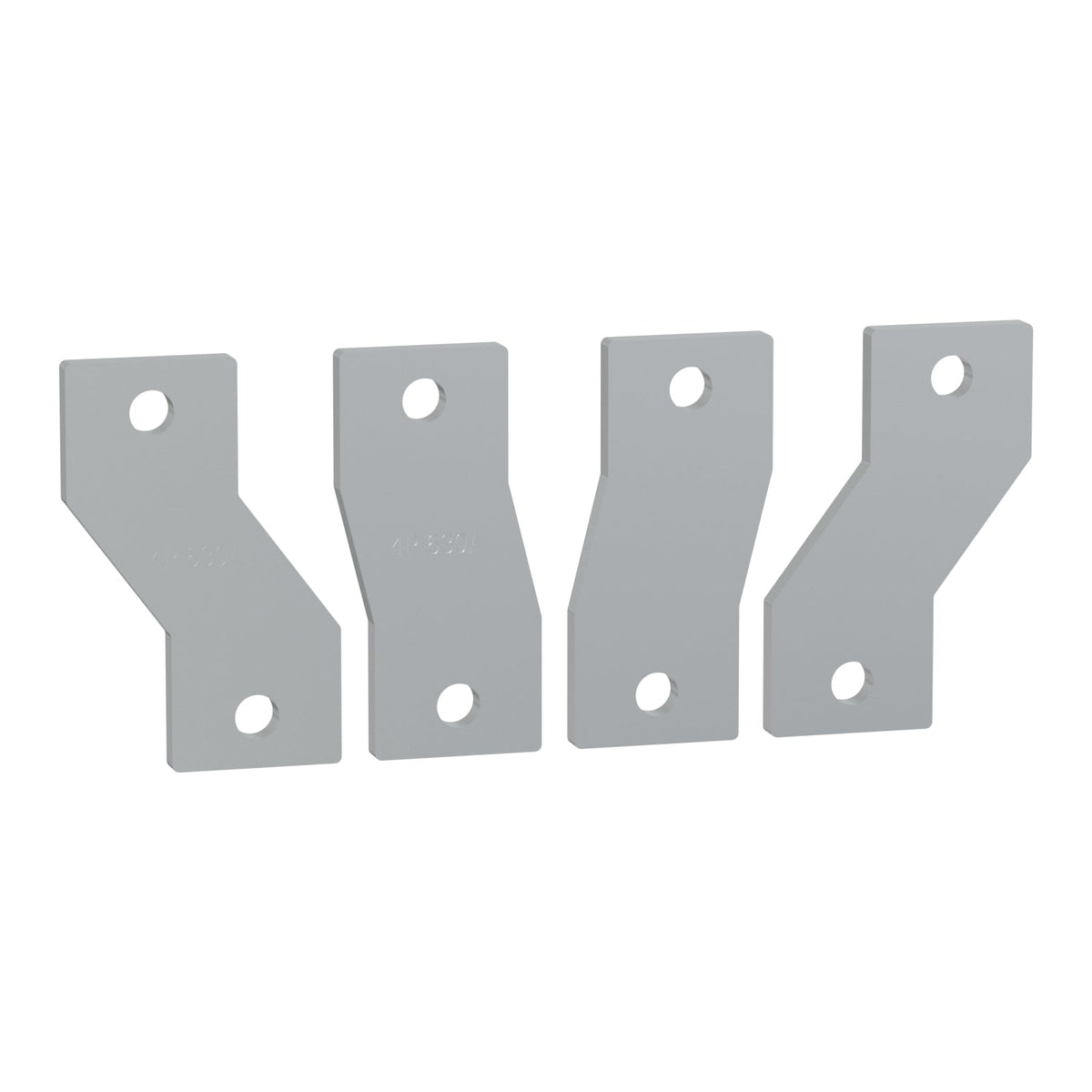

Schneider Electric G80SPDR4P630 GoPact MCCB 800 spreader 4P 630 A 80 mm pitch
Schneider Electric G80SPDR4P630 GoPact MCCB 800 spreader 4P 630 A 80 mm pitch

Schneider Electric G80SPDR4P630 GoPact MCCB 800 Terminal Extension Spreader 4P 630 A Circuit Breaker Accessory

Brand: Schneider Electric
Reference No: G80SPDR4P630
Catalog No: G80SPDR4P630
Series: GoPact MCCB
Tariff Code (HS): 853890
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$164.13

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric G80SPDR4P630 is a 4P set of terminal extension spreaders for the GoPact MCCB 800 moulded case circuit breaker, rated 630 A. Made from ETP grade copper, they attach to the standard terminals and increase the connection pitch from 60 mm to 80 mm. They mount in a straight position on either the upstream or downstream terminal set.

Technical Specifications

Reference G80SPDR4P630
Brand Schneider Electric
Range GoPact MCCB
Product type Terminal extension (spreader)
Device application Connection
Range compatibility GoPact MCCB 800
Poles description 4P
Quantity 2
Mounting position Straight
Localisation on device Upstream, downstream
[In] rated current 630 A
Connection pitch 80 mm
Conductor material Copper (ETP grade)

Selection Notes

Widening the pitch from 60 mm to 80 mm gives clearance for larger busbars, parallel cables or insulated boots that would not fit on the standard terminal spacing of the 4P GoPact MCCB 800. Confirm the 630 A current rating matches the breaker's trip setting before ordering - the 800 frame spreaders are sold separately at 630 A and 800 A pitches.

Technical Details

Short Description
ETP copper terminal extension spreaders for GoPact MCCB 800, 4P, 630 A, widens connection pitch to 80 mm.
Catalog No
G80SPDR4P630
Delivery Date (Days)
30 days
Model Number
Terminal Extension Spreader
Tariff Code
853890
