Part number
G80SPDR3P630
$151.17 On request Dispatch — · From TürkiyeGet a Quote
Schneider GoPact

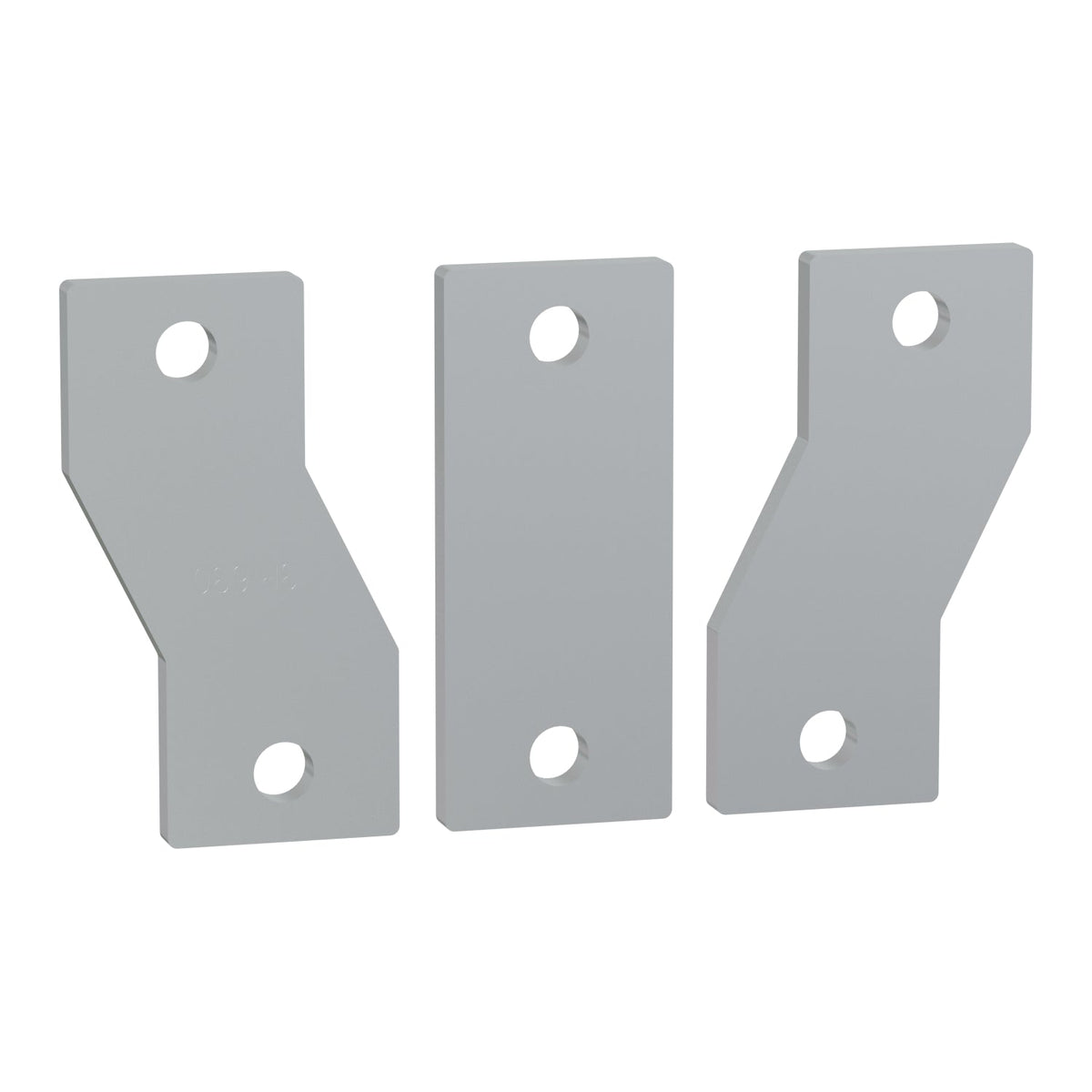

Schneider Electric G80SPDR3P630 GoPact MCCB 800 Terminal Extension Spreader 3P 630 A Circuit Breaker Accessory

ETP copper terminal extension spreaders for GoPact MCCB 800, 3P, 630 A, widens connection pitch to 80 mm.

Range of product
GoPact MCCB
Product or component type
Terminal extension
Device application
Connection
Range compatibility
GoPact MCCB 800
Poles description
3P
Quantity
6
Description

About the G80SPDR3P630

The Schneider Electric G80SPDR3P630 is a 3P set of terminal extension spreaders for the GoPact MCCB 800 moulded case circuit breaker, rated 630 A. Made from ETP grade copper, they attach to the standard terminals and increase the connection pitch from 60 mm to 80 mm. They mount in a straight position on either the upstream or downstream terminal set.

Selection Notes

Widening the pitch from 60 mm to 80 mm gives clearance for larger busbars, parallel cables or insulated boots that would not fit on the standard terminal spacing of the 3P GoPact MCCB 800. Confirm the 630 A current rating matches the breaker's trip setting before ordering - the 800 frame spreaders are sold separately at 630 A and 800 A pitches.

Specification

Full specification

40 values · Last verified 30 Oct 2026

Main 7

Range of product GoPact MCCB
Product or component type Terminal extension
Device application Connection
Range compatibility GoPact MCCB 800
Poles description 3P
Quantity 6
Mounting position Straight

Complementary 4

Localisation on device Upstream, Downstream
[In] rated current 630 A
Connection pitch 80 mm
Conductor material Copper

Contractual warranty 1

Warranty (in months) 18
Show all 40 specifications ↓ Show less ↑28 more values in Identification, Logistics.

Identification 6

Part number G80SPDR3P630
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Logistics 22

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 10.5 cm
Package 1 Width 12.8 cm
Package 1 Length 17.5 cm
Package 1 Weight 3.2 kg
Unit Type of Package 2 S02
Number of Units in Package 2 2
Package 2 Height 15 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 6.8 kg
Unit Type of Package 3 P06
Number of Units in Package 3 32
Package 3 Height 149 cm
Package 3 Width 60 cm
Package 3 Length 80 cm
Package 3 Weight 117.4 kg
Shipping weight 3.2 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for G80SPDR3P630

No documents are on file for this part yet.

Ask us for the datasheet
Quick answers

Questions about the G80SPDR3P630

What is the HS code of G80SPDR3P630 for customs?

The tariff (HS) code on file for G80SPDR3P630 is 853890.

Where does G80SPDR3P630 ship from, and how fast?

G80SPDR3P630 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
