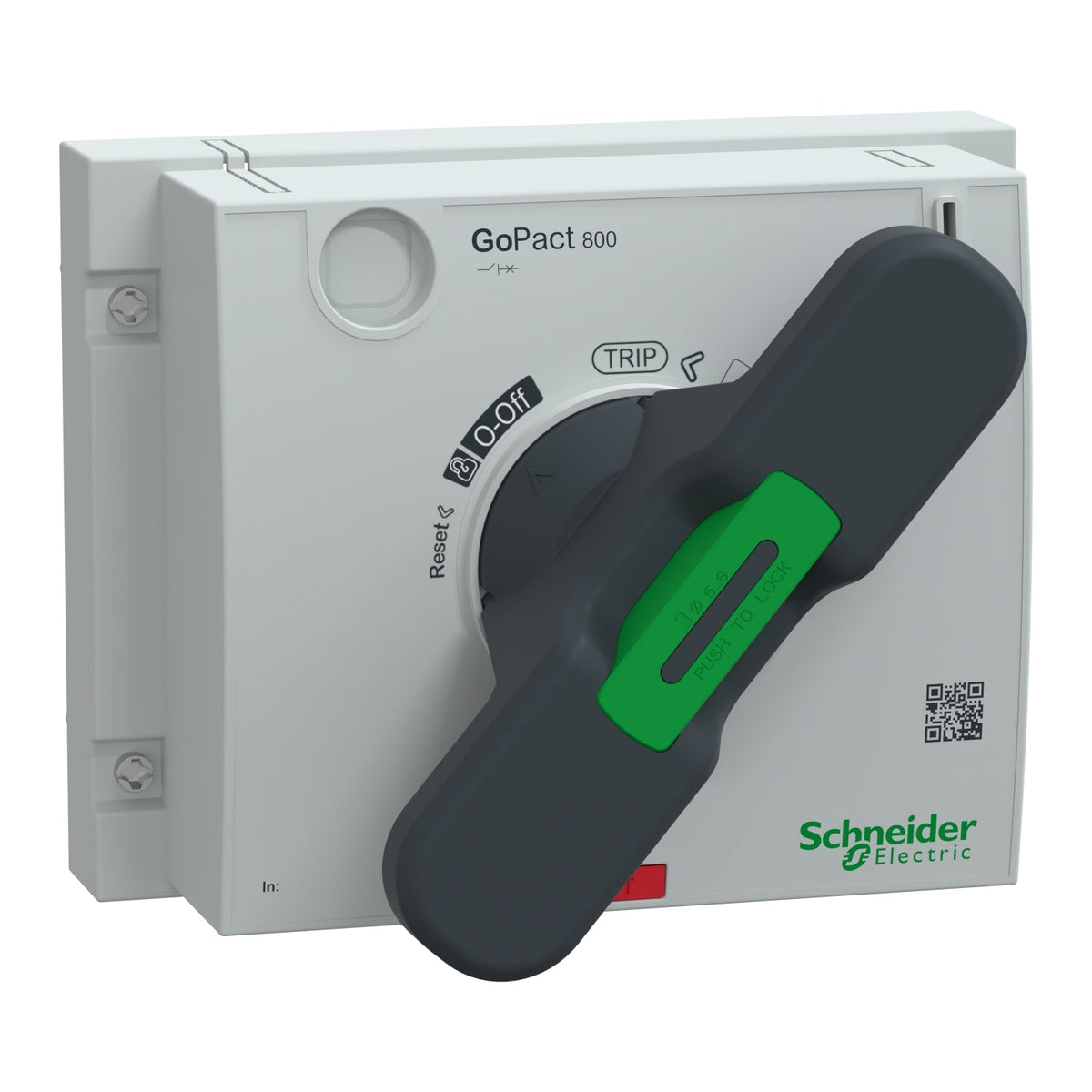

The Schneider Electric G80ROTDS is a direct rotary handle for the GoPact MCCB 800 moulded case circuit breaker, mounted on the device's own front face. It gives the assembly IP20 protection and can be padlocked in the OFF position with one to three padlocks (5-8 mm shackle, not supplied). The body is grey (RAL 7035) with a dark grey (RAL 7016) handle.
The direct handle mounts straight on the breaker's own front face, so it only suits breakers installed at the panel front - the extended rotary handle is the alternative where the 800 breaker sits behind the switchboard door. IP20 is adequate for a front panel inside a closed enclosure but does not add the sealing at the operator interface that the extended handle's IP54 rating provides.
| Range of product | GoPact MCCB |
|---|---|
| Product or component type | Rotary handle |
| Device application | Control |
| Range compatibility | GoPact MCCB 800 |
| Rotary handle mounting style | Direct |
| Rotary handle mounting location | Front |
| Handle colour | Grey |
| Rotary handle padlocking | Padlock in OFF position, 1 to 3 padlocks |
| IP degree of protection | IP20 |
|---|
| Warranty (in months) | 18 |
|---|
| Part number | G80ROTDS |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 14.5 cm |
| Package 1 Width | 14.8 cm |
| Package 1 Length | 18.5 cm |
| Package 1 Weight | 960 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 2 |
| Package 2 Height | 15 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 2.235 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 32 |
| Package 3 Height | 60 cm |
| Package 3 Width | 60 cm |
| Package 3 Length | 80 cm |
| Package 3 Weight | 44.26 kg |
| Shipping weight | 0.96 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for G80ROTDS is 853890.
G80ROTDS ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
