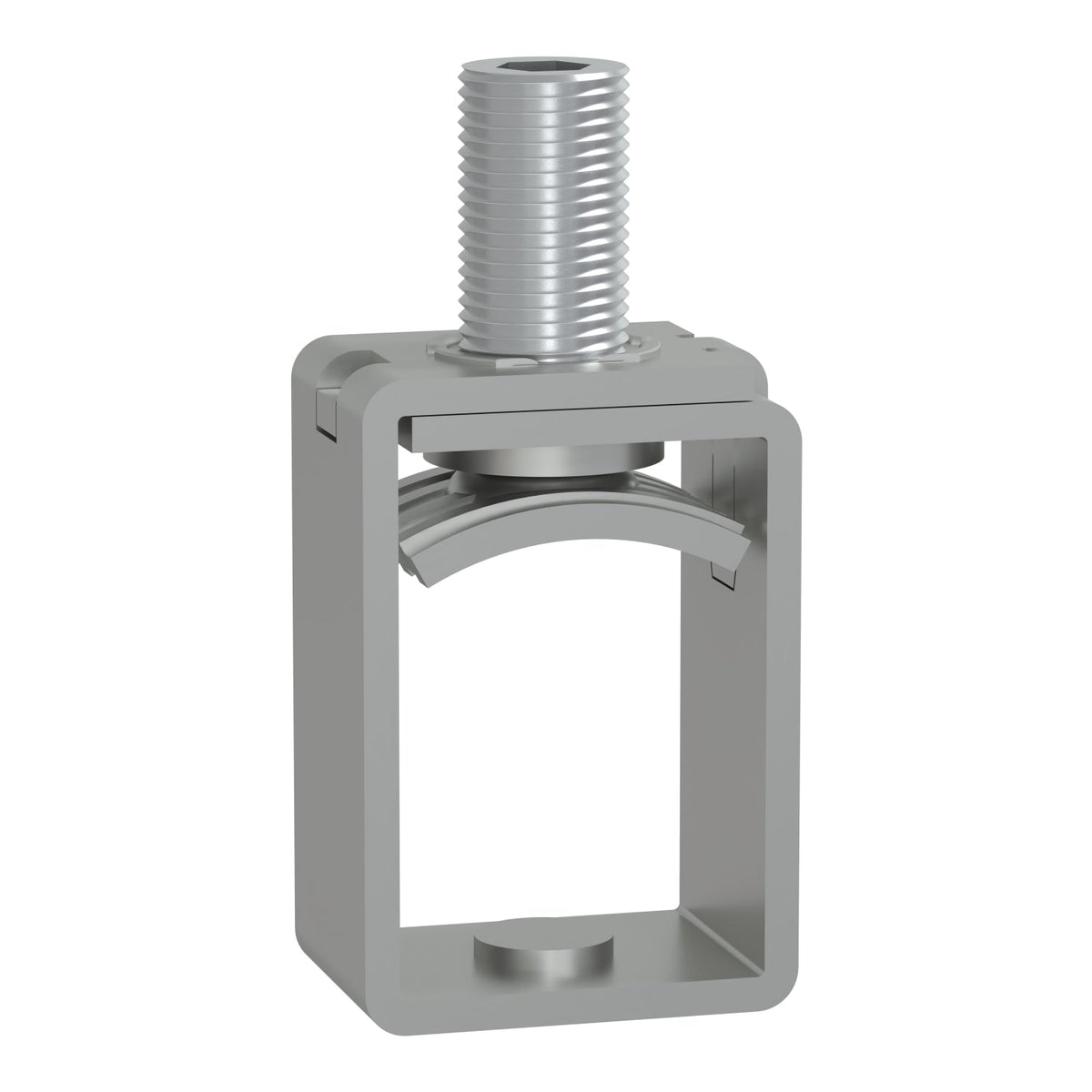

The Schneider Electric G40SBC4P is a 4P set of bare cable connectors (box clamps) for the GoPact MCCB 400 moulded case circuit breaker, rated 400 A. The steel clamps snap directly onto the device terminals and accept flexible copper cable from 120 to 240 mm² or rigid copper cable from 120 to 300 mm², tightened to 20 Nm at the MCCB termination.
Choose this connector where the installation terminates in bare copper cable rather than a lug or busbar - it snaps straight onto the terminal, so no separate lug crimping step is needed. The 120-300 mm² rigid / 120-240 mm² flexible range covers the conductor sizes typical of a 400 A circuit; stay within the 20 Nm tightening torque at the MCCB termination to avoid under- or over-torquing the clamp.
| Range of product | GoPact MCCB |
|---|---|
| Product or component type | Bare cable connector |
| Device application | Connection |
| Range compatibility | GoPact MCCB 400 |
| Poles description | 4P |
| Quantity | 8 |
| Localisation on device | Upstream, Downstream |
|---|---|
| [In] rated current | 400 A |
| Conductor material | Steel |
| Connections - terminals | Clamp cage (cable) 120…240 mm² flexible, Clamp cage (cable) 120…300 mm² rigid |
| Warranty (in months) | 18 |
|---|
| Part number | G40SBC4P |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 12 cm |
| Package 1 Width | 5.5 cm |
| Package 1 Length | 15 cm |
| Package 1 Weight | 806 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 5 |
| Package 2 Height | 15 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 4.345 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 80 |
| Package 3 Height | 60 cm |
| Package 3 Width | 60 cm |
| Package 3 Length | 80 cm |
| Package 3 Weight | 78.020 kg |
| Shipping weight | 0.806 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for G40SBC4P is 853890.
G40SBC4P ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
