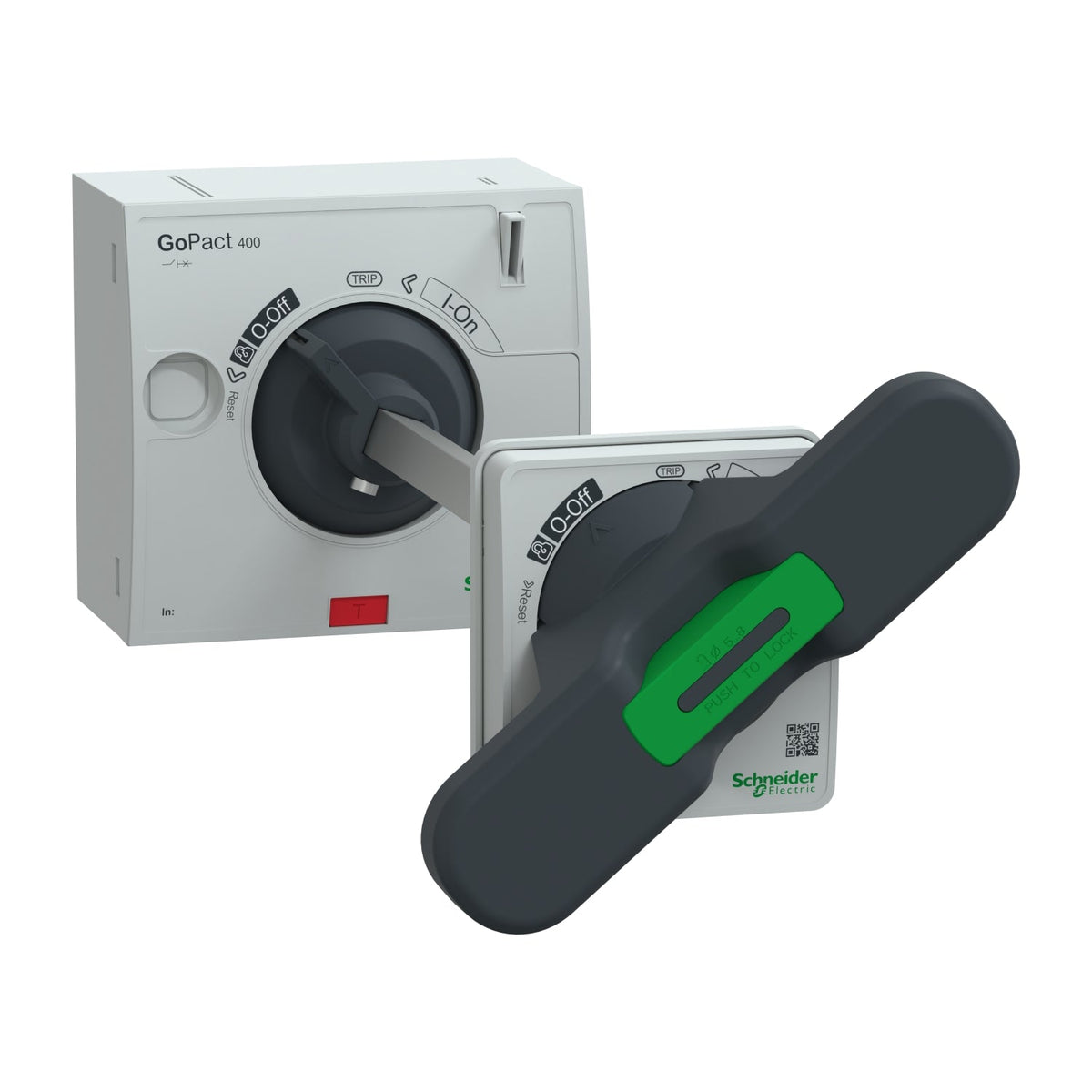

The Schneider Electric G40ROTE is an extended rotary handle for the GoPact MCCB 400 moulded case circuit breaker, with a 250 mm shaft that brings operation to the switchboard front panel when the breaker is mounted at the back. The assembly reaches IP54 and can be padlocked in the OFF position with one to three padlocks (5-8 mm shackle, not supplied).
The 250 mm shaft is fixed, so it only fits enclosures where the breaker-to-door depth matches that reach - check panel depth before ordering rather than assuming it suits every 400 installation. IP54 at the front panel is a step up from the direct handle's IP20, which matters where the switchboard front is exposed to dust or splashing rather than sealed inside a clean enclosure.
| Range of product | GoPact MCCB |
|---|---|
| Product or component type | Rotary handle |
| Device application | Control |
| Range compatibility | GoPact MCCB 400 |
| Rotary handle mounting style | Extended |
| Rotary handle mounting location | Front |
| Shaft length | 250 mm |
| Handle colour | Grey |
| Rotary handle padlocking | Padlock in OFF position, 1 to 3 padlocks |
| IP degree of protection | IP54 |
|---|
| Warranty (in months) | 18 |
|---|
| Part number | G40ROTE |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 12 cm |
| Package 1 Width | 12 cm |
| Package 1 Length | 28.5 cm |
| Package 1 Weight | 1.19 kg |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 30 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 7.581 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 72 |
| Package 3 Height | 60 cm |
| Package 3 Width | 60 cm |
| Package 3 Length | 80 cm |
| Package 3 Weight | 99.472 kg |
| Shipping weight | 1.19 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for G40ROTE is 853890.
G40ROTE ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
