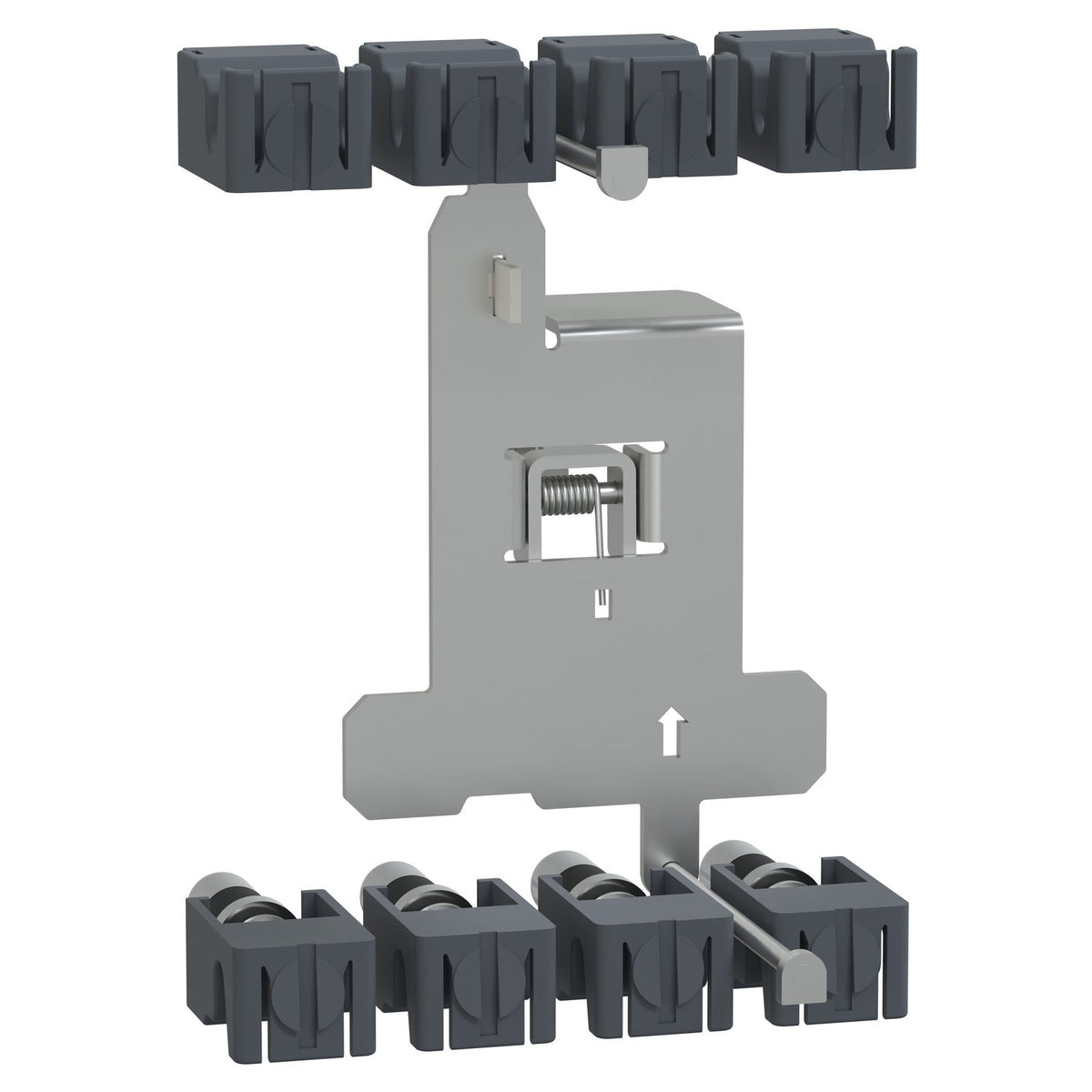

The Schneider Electric G40PLUGKIT4P is a 4P plug-in conversion kit for the GoPact MCCB 400 moulded case circuit breaker, rated 400 A. It converts a fixed breaker to plug-in operation, combining a safety trip interlock assembly, a gripper and plug contacts, and mounts the breaker on a backplate, rail or front panel once paired with the matching plug-in base.
This kit fits onto the breaker itself and only functions once mated with the matching 4P 400 plug-in base - order the two together for a working plug-in installation. The safety trip interlock in the kit prevents the breaker being withdrawn while still closed, which is the main reason to choose the plug-in conversion over a fixed mount on circuits that need frequent breaker swaps.
| Range of product | GoPact MCCB |
|---|---|
| Product or component type | Plug-in kit |
| Device application | Mounting |
| Range compatibility | GoPact MCCB 400 |
| Poles description | 4P |
| Mounting mode | Plug-in |
|---|---|
| [In] rated current | 400 A |
| Kit composition | Safety trip interlock, Plug, Adaptation kit |
| Warranty (in months) | 18 |
|---|
| Part number | G40PLUGKIT4P |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.5 cm |
| Package 1 Width | 16.5 cm |
| Package 1 Length | 27.5 cm |
| Package 1 Weight | 1300 g |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 32 |
| Package 2 Height | 60 cm |
| Package 2 Width | 60 cm |
| Package 2 Length | 80 cm |
| Package 2 Weight | 55.140 kg |
| Shipping weight | 1.3 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for G40PLUGKIT4P is 853890.
G40PLUGKIT4P ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
