Part number
G40-80UVR240AC
Model no
MN
$48.32 On request Dispatch — · From TürkiyeGet a Quote
Schneider GoPact

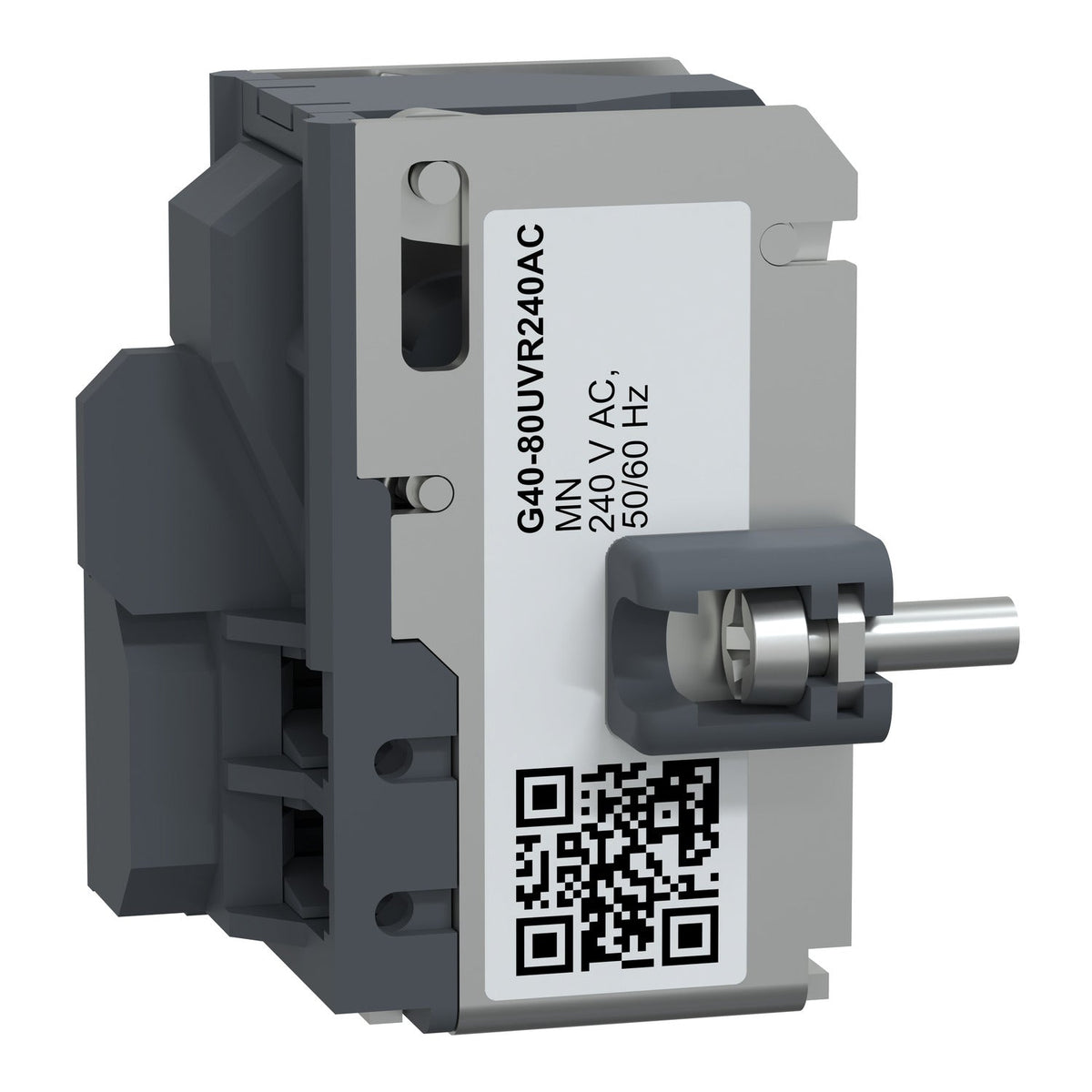

Schneider Electric G40-80UVR240AC GoPact MCCB 400/800 Undervoltage Release 240 V AC Circuit Breaker Accessory

MN undervoltage release for GoPact MCCB 400/800, 240 V AC 50/60 Hz, opens breaker on loss of control voltage.

Rated operational voltage
240 V AC
Description

About the MN

The Schneider Electric G40-80UVR240AC is an MN undervoltage release for GoPact MCCB 400 and 800 moulded case circuit breakers, with a 240 V AC 50/60 Hz control circuit voltage. It opens the breaker once the supply voltage falls below 35% of Un and only permits closing again once the supply recovers above 85% of Un.

Selection Notes

Unlike the MX shunt trip, the MN release trips automatically on loss of control voltage, so it is the right choice where a dropped control supply must itself open the breaker (safety circuits, fire interlocks) rather than relying on a separate command. Between 0.35 and 0.7 x Un the opening behaviour is not guaranteed, so treat that band as unreliable for protection studies and size the control supply to stay above 0.7 x Un in normal operation. Confirm the 240 V AC coil matches the switchboard control voltage - GoPact MCCB also offers this release at the alternate AC rating.

Specification

Full specification

35 values · Last verified 30 Oct 2026

Main 7

Range of product GoPact MCCB
Product or component type Voltage release
Device short name MN
Device application Control
Range compatibility GoPact MCCB 400, GoPact MCCB 800, EasyPact Solar MCCB 400, EasyPact Solar MCCB 800
Voltage release type Undervoltage release
[Uc] control circuit voltage 240 V AC 50/60 Hz

Complementary 4

Threshold tripping voltage 0.35...0.7 Un opening, 0.85...1.1 Un closing
Max supply holding power consumption 3.5 VA
Max supply pick-up power consumption 5 VA
Response time 25 ms

Contractual warranty 1

Warranty (in months) 18
Show all 35 specifications ↓ Show less ↑23 more values in Identification, Logistics.

Identification 7

Part number G40-80UVR240AC
Type designation MN
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Logistics 16

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 6.500 cm
Package 1 Width 8.500 cm
Package 1 Length 4.800 cm
Package 1 Weight 110.000 g
Unit Type of Package 2 S02
Number of Units in Package 2 20
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 2.515 kg
Shipping weight 0.11 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for G40-80UVR240AC

No documents are on file for this part yet.

Ask us for the datasheet
Quick answers

Questions about the MN

Which supply voltage is MN rated for?

The rated operational voltage of MN is 240 V AC.

What is the HS code of MN for customs?

The tariff (HS) code on file for MN is 853890.

Where does MN ship from, and how fast?

MN ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
