Schneider Electric G40-80SHT415AC GoPact MCCB 400/800 MX Shunt Trip Release 415 V AC Circuit Breaker Accessory

% $-44.00

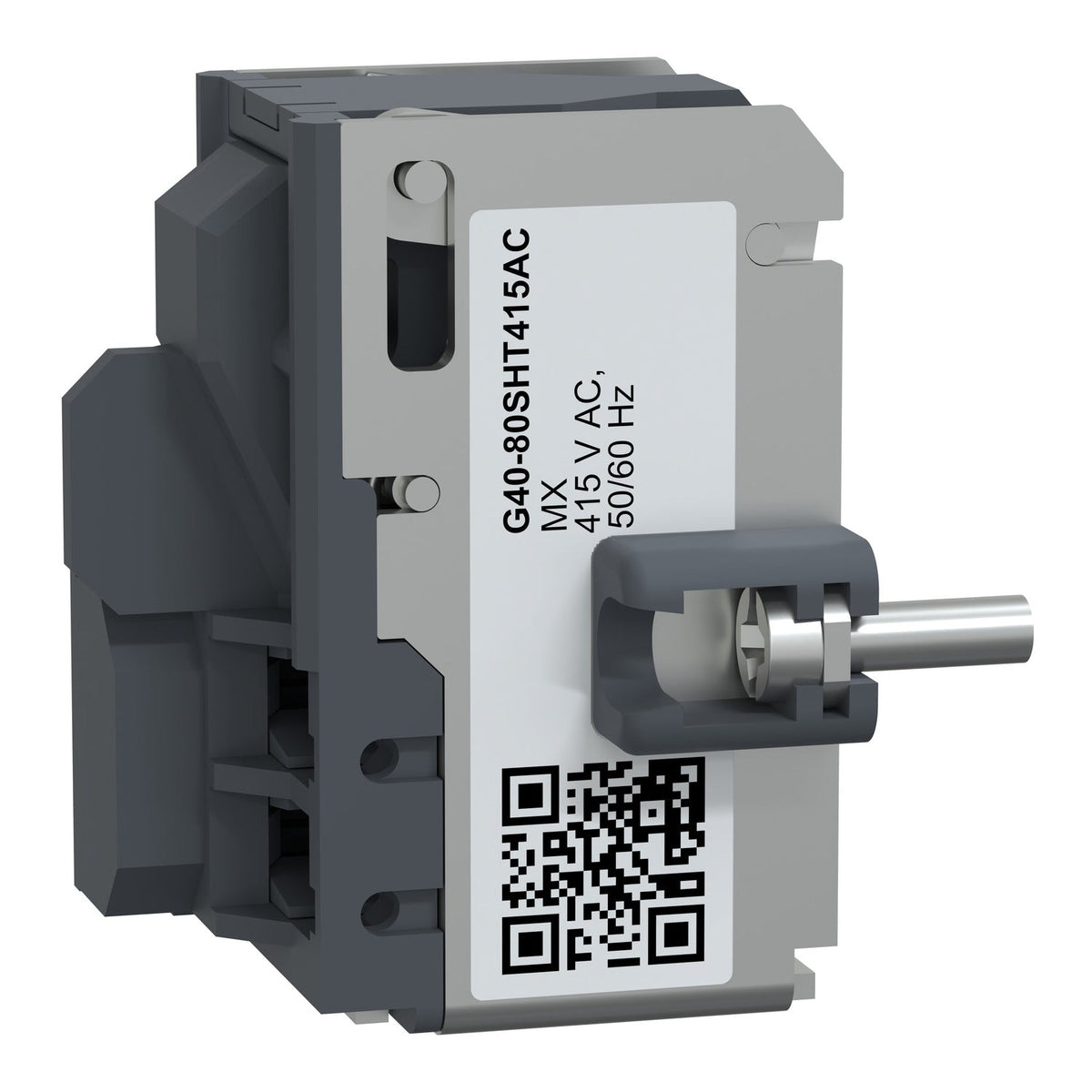

Schneider Electric G40-80SHT415AC GoPact MCCB MX shunt trip release 415 V AC
Schneider Electric G40-80SHT415AC GoPact MCCB MX shunt trip release 415 V AC

Schneider Electric G40-80SHT415AC GoPact MCCB 400/800 MX Shunt Trip Release 415 V AC Circuit Breaker Accessory

Brand: Schneider Electric
Reference No: G40-80SHT415AC
Catalog No: G40-80SHT415AC
Series: GoPact MCCB
Tariff Code (HS): 853890
Rated Voltage: 415 V AC 50/60 Hz
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$44.00

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric G40-80SHT415AC is an MX shunt trip release for GoPact MCCB 400 and 800 moulded case circuit breakers, with a 415 V AC 50/60 Hz control circuit voltage. Energising the coil above 70% of its rated voltage opens the breaker on remote command, with a maximum response time of 17 ms.

Technical Specifications

Reference G40-80SHT415AC
Brand Schneider Electric
Range GoPact MCCB
Device short name MX
Product type Voltage release - shunt trip
Device application Control
Range compatibility GoPact MCCB 400, GoPact MCCB 800, EasyPact Solar MCCB 400, EasyPact Solar MCCB 800
Voltage release type Shunt trip
[Uc] control circuit voltage 415 V AC 50/60 Hz
Threshold tripping voltage 0.7...1.1 Un opening
Max supply pick-up power consumption 5 VA
Response time 25 ms

Selection Notes

The MX release only opens the breaker when commanded - it does not hold the breaker closed, so loss of control supply does not trip it (an MN undervoltage release is the right choice where a dropped control supply must itself open the breaker). Match the 415 V AC coil to the control circuit before wiring; GoPact MCCB also offers this release at the alternate AC voltage, so confirm 415 V AC against the switchboard's control supply before ordering. A 17 ms response time is fast enough for remote emergency-stop or fire-interlock tripping circuits.

Technical Details

Short Description
MX shunt trip release for GoPact MCCB 400/800, 415 V AC 50/60 Hz, remote-trip control accessory, 25 ms response.
Rated Voltage (VAC)
415 V AC 50/60 Hz
Catalog No
G40-80SHT415AC
Delivery Date (Days)
30 days
Model Number
MX Shunt Trip Release
Tariff Code
853890
