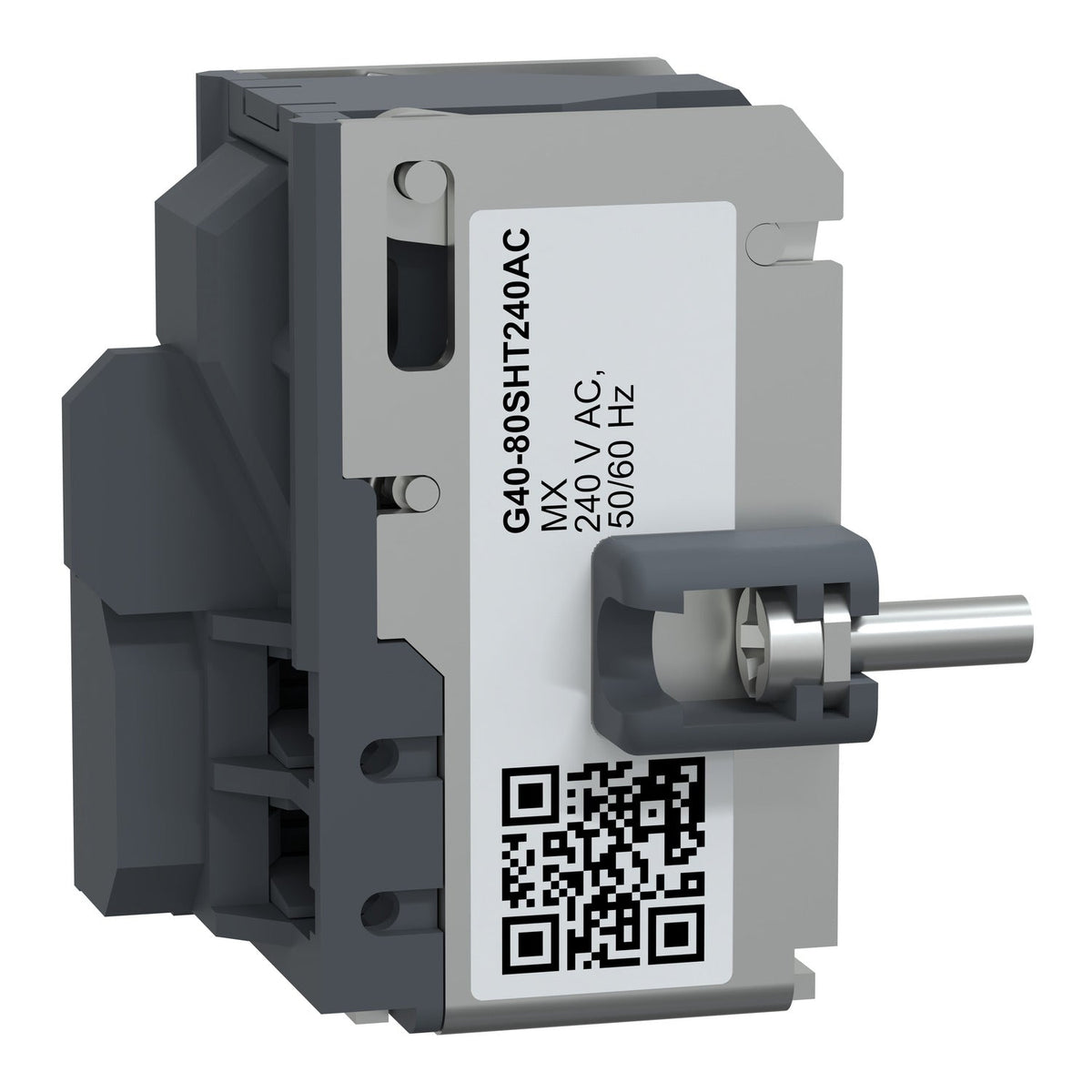

The Schneider Electric G40-80SHT240AC is an MX shunt trip release for GoPact MCCB 400 and 800 moulded case circuit breakers, with a 240 V AC 50/60 Hz control circuit voltage. Energising the coil above 70% of its rated voltage opens the breaker on remote command, with a maximum response time of 23 ms.
The MX release only opens the breaker when commanded - it does not hold the breaker closed, so loss of control supply does not trip it (an MN undervoltage release is the right choice where a dropped control supply must itself open the breaker). Match the 240 V AC coil to the control circuit before wiring; GoPact MCCB also offers this release at the alternate AC voltage, so confirm 240 V AC against the switchboard's control supply before ordering. A 23 ms response time is fast enough for remote emergency-stop or fire-interlock tripping circuits.
| Range of product | GoPact MCCB |
|---|---|
| Product or component type | Voltage release |
| Device short name | MX |
| Device application | Control |
| Range compatibility | GoPact MCCB 400, GoPact MCCB 800, EasyPact Solar MCCB 400, EasyPact Solar MCCB 800 |
| Voltage release type | Shunt trip |
| [Uc] control circuit voltage | 240 V AC 50/60 Hz |
| Threshold tripping voltage | 0.7...1.1 Un opening |
|---|---|
| Max supply pick-up power consumption | 5 VA |
| Response time | 25 ms |
| Warranty (in months) | 18 |
|---|
| Part number | G40-80SHT240AC |
|---|---|
| Type designation | MX |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.500 cm |
| Package 1 Width | 8.500 cm |
| Package 1 Length | 4.800 cm |
| Package 1 Weight | 109.900 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 20 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 2.515 kg |
| Shipping weight | 0.11 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
