Schneider Electric G40-80AUX240 GoPact MCCB 400/800 Auxiliary Contact 240 V AC Circuit Breaker Accessory

% $-24.43

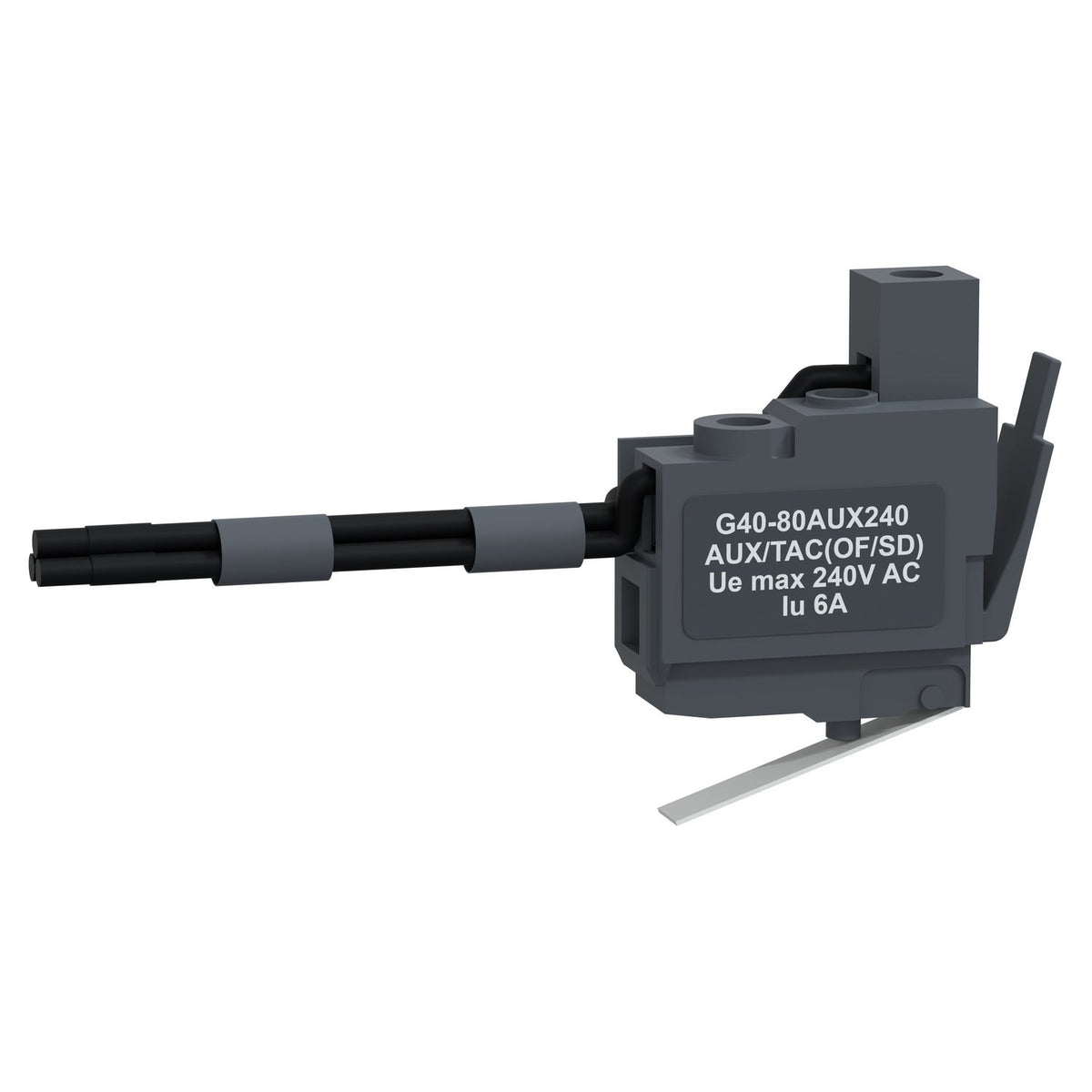

Schneider Electric G40-80AUX240 GoPact MCCB auxiliary contact - 1 NO/NC 240 V AC
Schneider Electric G40-80AUX240 GoPact MCCB auxiliary contact - 1 NO/NC 240 V AC

Schneider Electric G40-80AUX240 GoPact MCCB 400/800 Auxiliary Contact 240 V AC Circuit Breaker Accessory

Brand: Schneider Electric
Reference No: G40-80AUX240
Catalog No: G40-80AUX240
Series: GoPact MCCB
Tariff Code (HS): 853890
Rated Voltage: 240 V AC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$24.43

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric G40-80AUX240 is a clip-on auxiliary contact for GoPact MCCB 400 and 800 moulded case circuit breakers, rated 240 V AC. It carries a single common-point changeover (1 NO/NC) contact that reports the breaker's open/closed position (OF) and fault-trip condition (SD) for remote indication, interlocking or relay control.

Technical Specifications

Reference G40-80AUX240
Brand Schneider Electric
Range GoPact MCCB
Product type Auxiliary contact (OF/SD)
Device application Breaker status monitoring
Range compatibility GoPact MCCB 400, GoPact MCCB 800, EasyPact Solar MCCB 400, EasyPact Solar MCCB 800
Signal contacts composition 1 NO/NC common-point changeover
Local signalling ON/OFF indication (OF) + trip indication for voltage release / electrical fault (SD)
Mounting mode Clip-on
[Ith] conventional free air thermal current 10 A
[Ue] rated operational voltage 240 V AC
Connection Pre-wired, 0.5 mm² cable, 500 mm length

Selection Notes

OF signals the breaker's mechanical contact position while SD signals that it tripped on an electrical fault, a shunt-trip command or an undervoltage condition - wiring both into a PLC or panel annunciator distinguishes a planned open from a protective trip without a site visit. The 10 A thermal current at 240 V AC drives a relay coil or indicator lamp directly. It clips inside the breaker and arrives pre-wired with a 500 mm, 0.5 mm² cable, so no separate wiring kit is needed at installation.

Technical Details

Short Description
Clip-on 1 NO/NC auxiliary contact for GoPact MCCB 400/800, 240 V AC, reports breaker OF/SD status for remote indication and interlocking.
Rated Voltage (VAC)
240 V AC
Mounting Type
Clip-on
Catalog No
G40-80AUX240
Delivery Date (Days)
30 days
Model Number
Auxiliary Contact
Tariff Code
853890
