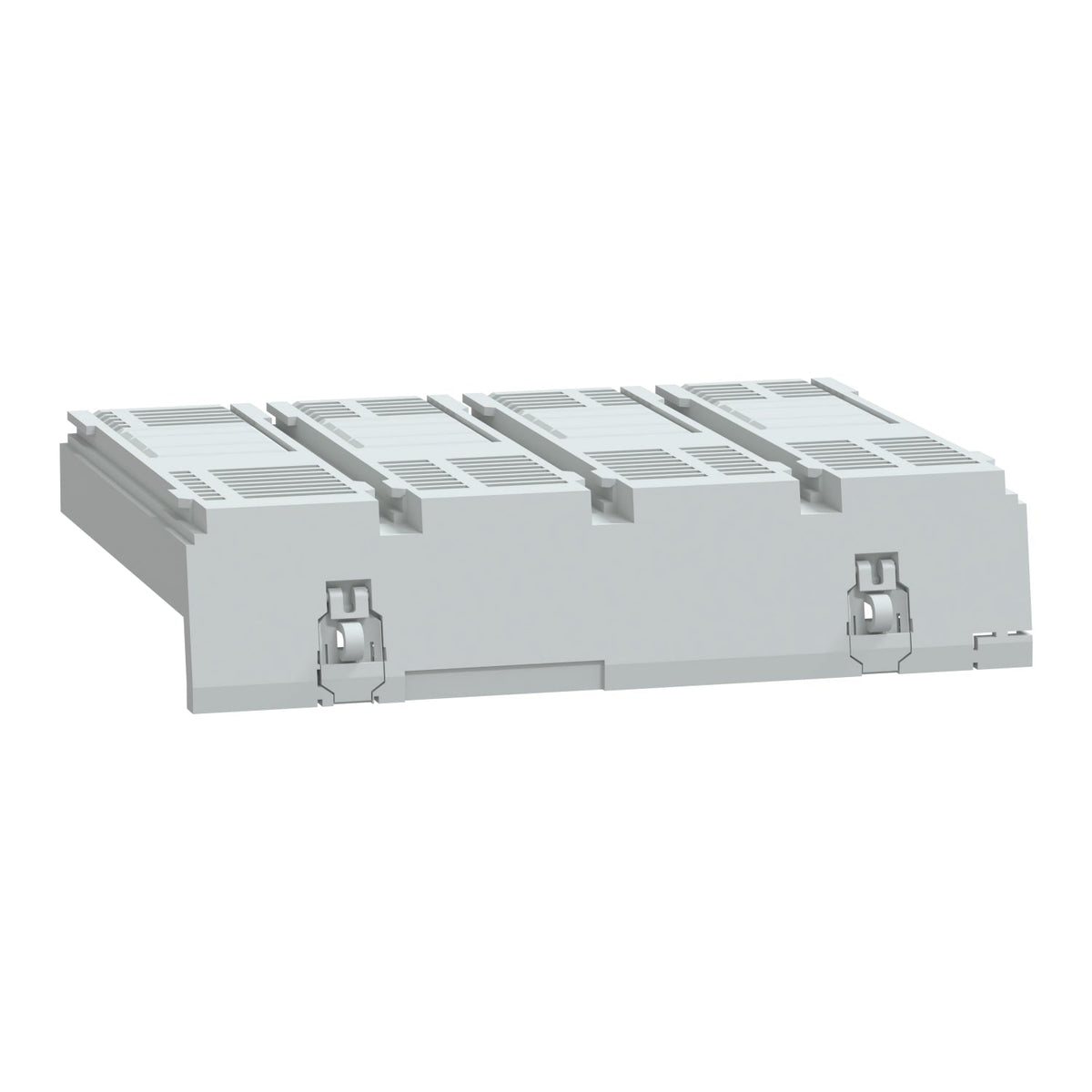

The Schneider Electric G25STSHD4P is a 4-pole short terminal shield for the GoPact MCCB 250, used on fixed or plug-in versions fitted with rear connectors. It covers the shorter terminal depth those connectors leave exposed, protecting against direct contact with the power circuit and giving IP40 degree of protection to IEC 60529, and can be mounted upstream or downstream of the breaker.
Fit the G25STSHD4P rather than the long terminal shield when the 4-pole GoPact MCCB 250 is wired with rear connectors, since the shorter shield length matches that connector's reduced terminal reach - the long shield is sized for spreaders or bare cable connectors instead. It is specific to the 4P configuration on the 250 frame; a 3P GoPact MCCB 250 needs the matching 3P shield.
| Range of product | GoPact MCCB |
|---|---|
| Product or component type | Short terminal shield |
| Device application | Insulation |
| Range compatibility | GoPact MCCB 250 |
| Poles description | 4P |
| Quantity | 2 |
| Localisation on device | Upstream, Downstream |
|---|---|
| IP degree of protection | IP40 conforming to IEC 60529 |
| Warranty (in months) | 18 |
|---|
| Part number | G25STSHD4P |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.1 cm |
| Package 1 Width | 12.1 cm |
| Package 1 Length | 16.1 cm |
| Package 1 Weight | 86 g |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 80 |
| Package 2 Height | 60 cm |
| Package 2 Width | 60 cm |
| Package 2 Length | 80 cm |
| Package 2 Weight | 20.420 kg |
| Shipping weight | 0.086 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for G25STSHD4P is 853890.
G25STSHD4P ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
