Schneider Electric G25STSHD3P GoPact MCCB 250 Short Terminal Shield 3P IP40 Circuit Breaker Accessory

% $-13.33

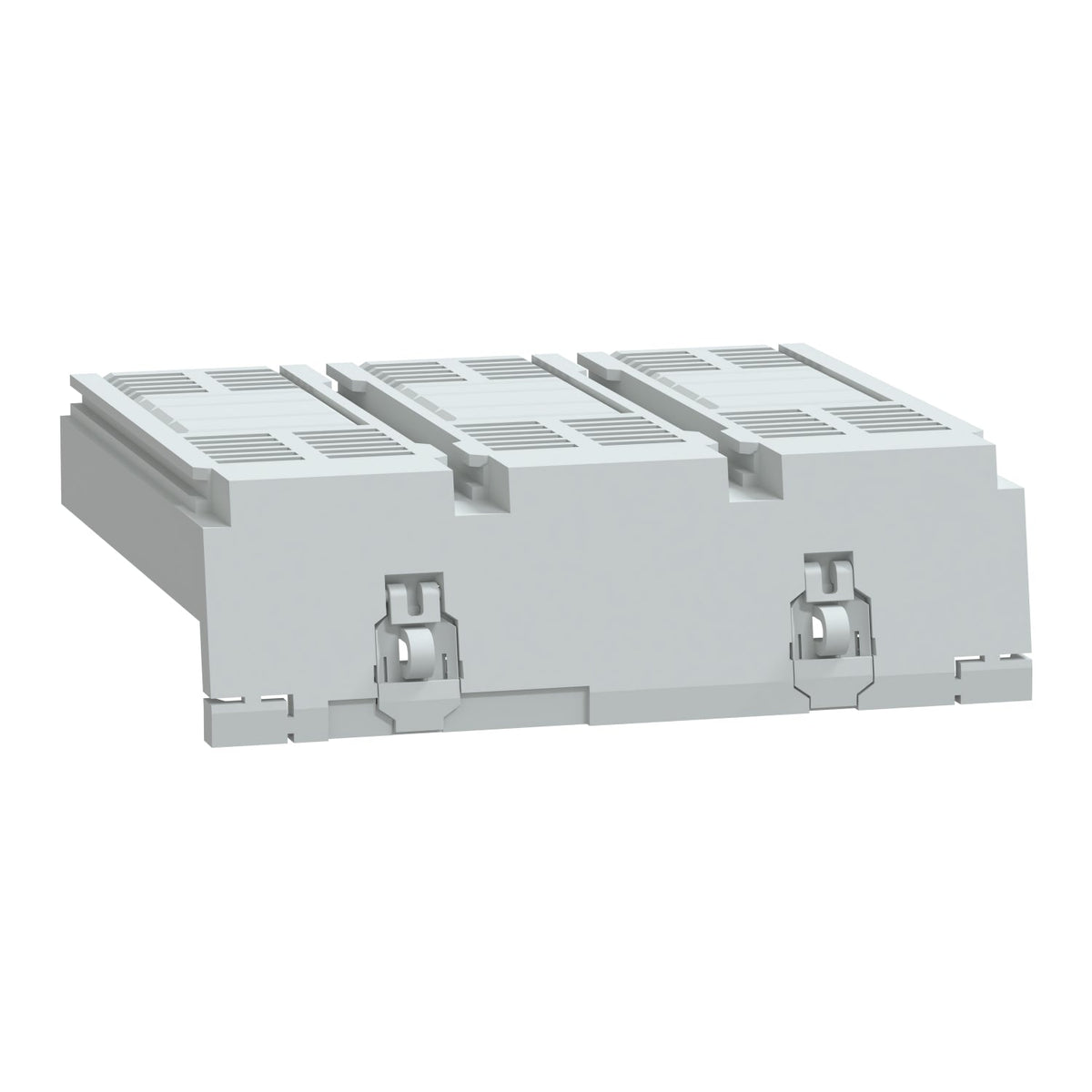

Schneider Electric G25STSHD3P GoPact MCCB 250 short terminal shield 3P
Schneider Electric G25STSHD3P GoPact MCCB 250 short terminal shield 3P

Schneider Electric G25STSHD3P GoPact MCCB 250 Short Terminal Shield 3P IP40 Circuit Breaker Accessory

Brand: Schneider Electric
Reference No: G25STSHD3P
Catalog No: G25STSHD3P
Series: GoPact MCCB
Tariff Code (HS): 853890
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$13.33

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric G25STSHD3P is a 3-pole short terminal shield for the GoPact MCCB 250, used on fixed or plug-in versions fitted with rear connectors. It covers the shorter terminal depth those connectors leave exposed, protecting against direct contact with the power circuit and giving IP40 degree of protection to IEC 60529, and can be mounted upstream or downstream of the breaker.

Technical Specifications

Reference G25STSHD3P
Brand Schneider Electric
Range GoPact MCCB
Product / Component Type Short terminal shield
Device Application Insulation
Compatible Breaker GoPact MCCB 250
Poles 3P
Quantity 2
Localisation on Device Upstream, downstream
IP Degree of Protection IP40, conforming to IEC 60529
Compatible Connections Rear connectors

Selection Notes

Fit the G25STSHD3P rather than the long terminal shield when the 3-pole GoPact MCCB 250 is wired with rear connectors, since the shorter shield length matches that connector's reduced terminal reach - the long shield is sized for spreaders or bare cable connectors instead. It is specific to the 3P configuration on the 250 frame; a 4P GoPact MCCB 250 needs the matching 4P shield.

Technical Details

Short Description
Schneider Electric G25STSHD3P short terminal shield for GoPact MCCB 250, 3P, IP40 degree of protection.
Mounting Type
Clip-on
Protection Type
IP40
Catalog No
G25STSHD3P
Delivery Date (Days)
30 days
Model Number
Short Terminal Shield
Tariff Code
853890
