Schneider Electric G25SPDR4P GoPact MCCB 250 Terminal Extension 4P 250 A 61 mm Pitch Circuit Breaker Accessory

% $-31.41
Schneider Electric G25SPDR4P GoPact MCCB 250 terminal extension 4P
Schneider Electric G25SPDR4P GoPact MCCB 250 terminal extension 4P

Schneider Electric G25SPDR4P GoPact MCCB 250 Terminal Extension 4P 250 A 61 mm Pitch Circuit Breaker Accessory

Brand: Schneider Electric
Reference No: G25SPDR4P
Catalog No: G25SPDR4P
Series: GoPact MCCB
Tariff Code (HS): 853890
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$31.41

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

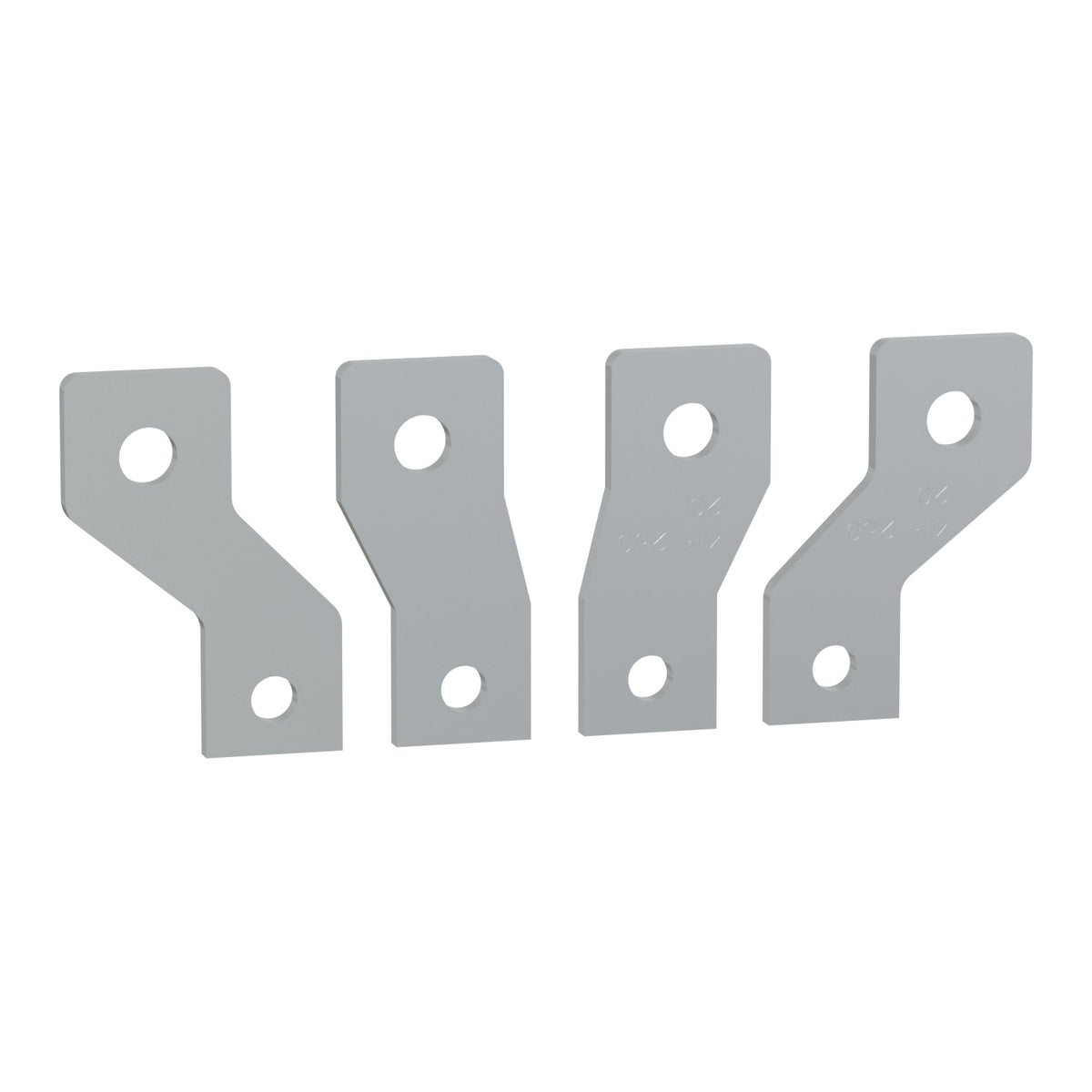

The Schneider Electric G25SPDR4P is a set of 4-pole terminal extensions, or spreaders, for the GoPact MCCB 250, rated for 250 A continuous current. Attached to the breaker's standard terminals, they increase the connection pitch from 35 mm to 61 mm to match wider busbar or cable spacing, and are made from ETP-grade copper.

Technical Specifications

Reference G25SPDR4P
Brand Schneider Electric
Range GoPact MCCB
Product / Component Type Terminal extension
Device Application Connection
Compatible Breaker GoPact MCCB 250
Poles 4P
[In] Rated Current 250 A
Quantity per Set 8
Mounting Position Straight
Localisation on Device Upstream, downstream
Connection Pitch 61 mm (from 35 mm standard)
Conductor Material ETP grade copper

Selection Notes

Fit the G25SPDR4P when the GoPact MCCB 250 must connect to busbar or cable work spaced wider than the breaker's standard 35 mm terminal pitch - the extension bridges that gap without a custom busbar bend. The 61 mm pitch and 250 A rating are specific to this breaker frame and pole count; a 3P GoPact MCCB 250 needs the 3P version instead.

Technical Details

Short Description
Schneider Electric G25SPDR4P terminal extensions for GoPact MCCB 250, 4P, In 250 A, copper, 61 mm pitch.
Mounting Type
Straight terminal extension
Catalog No
G25SPDR4P
Delivery Date (Days)
30 days
Model Number
Terminal Extension
Tariff Code
853890
