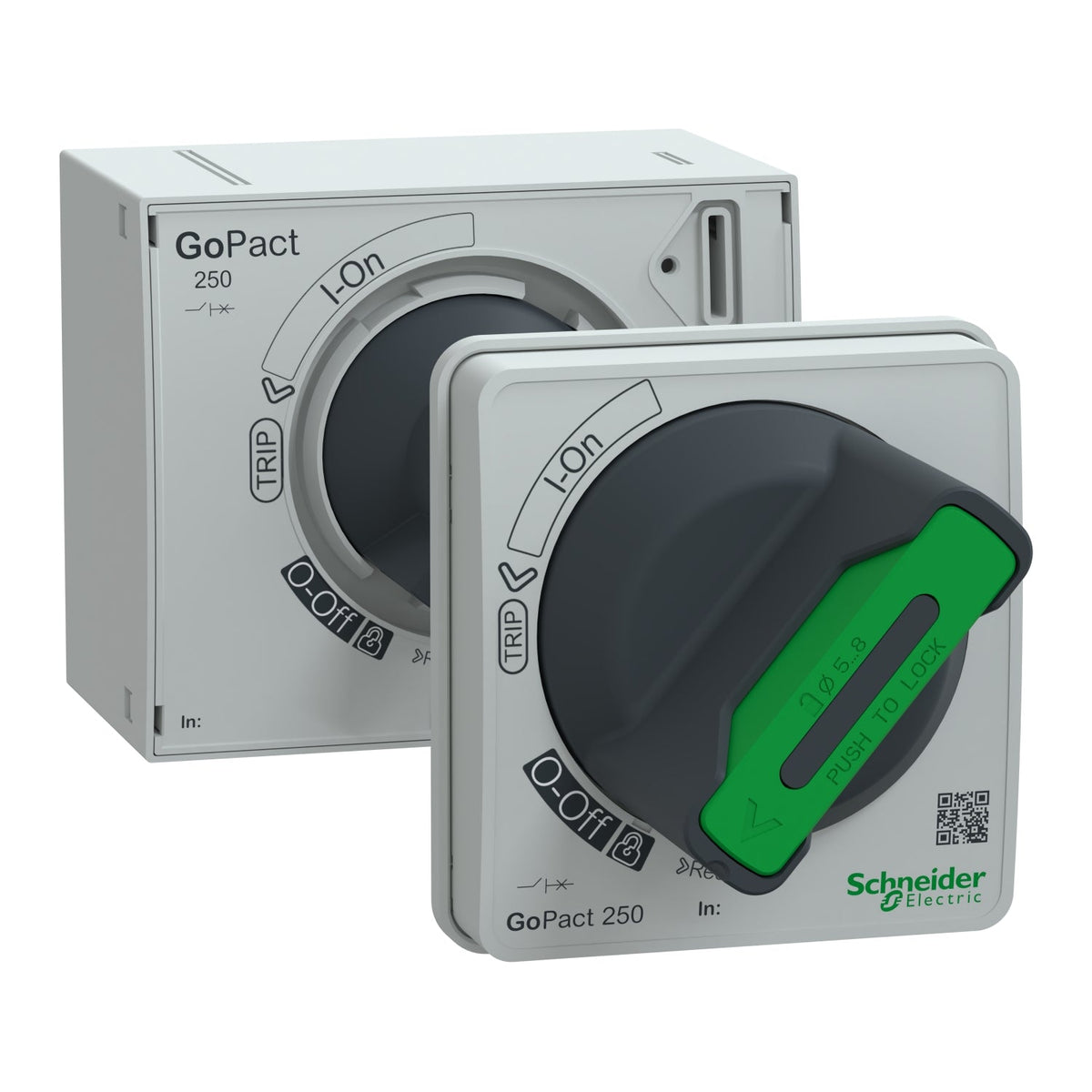

Schneider Electric G25ROTE GoPact MCCB 250 Extended Rotary Handle Circuit Breaker Accessory

The Schneider Electric G25ROTE is an extended rotary handle for the GoPact MCCB 250, with a 250 mm shaft that lets the breaker be operated from the switchboard front panel while mounted further back in the enclosure. A breaker fitted with this handle carries IP54 degree of protection, and the handle can be padlocked in the OFF position with 1 to 3 padlocks (not supplied, 5-8 mm shackle diameter). The body is grey (RAL 7035) and the handle itself dark grey (RAL 7016).

Technical Specifications

Selection Notes

Specify the G25ROTE when the GoPact MCCB 250 is mounted behind a switchboard door rather than at the panel face - the 250 mm shaft carries the operating spindle through to the door while keeping the breaker itself enclosed. Its IP54 rating, higher than the IP20 of the direct-mount handle, reflects the door-seal interface this extended version creates; use the direct handle instead if the breaker already sits at the panel front.
