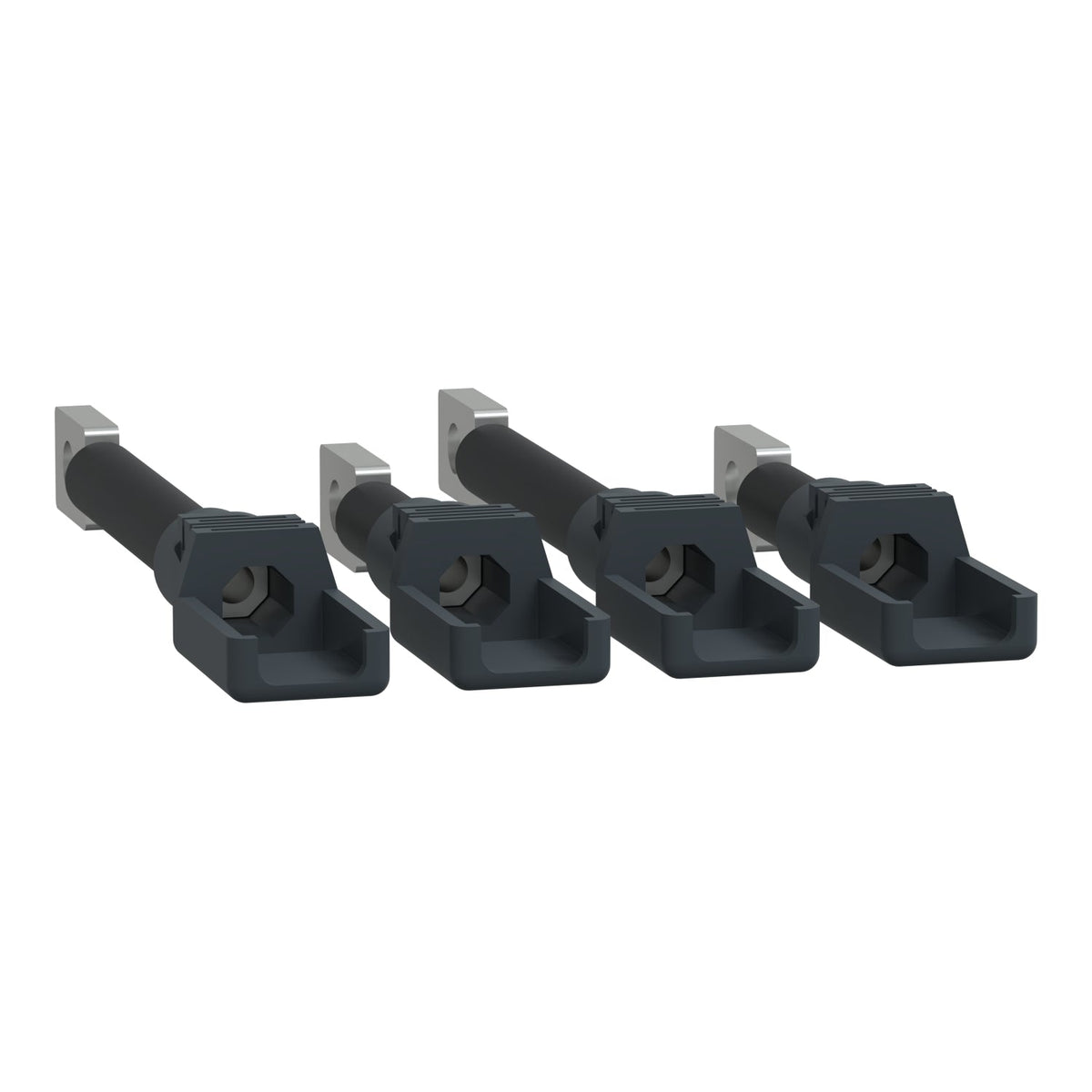

The Schneider Electric G25RC4P is a set of 4-pole rear connectors for the GoPact MCCB 250, rated for 250 A continuous current. The connectors fit directly onto the breaker's rear connection terminals, with a length of 55.6 mm on the outer phases and 105.6 mm on the centre phase to route cabling from behind the panel rather than from the front.
Fit the G25RC4P when the GoPact MCCB 250 switchboard is wired from behind the panel rather than the front, since rear connectors route the busbar or cable entry to the back of the breaker instead of the front terminals. They are specific to the 4P frame of this breaker - a 3P GoPact MCCB 250 needs the 3P version with its own quantity and length set.
| Range of product | GoPact MCCB |
|---|---|
| Product or component type | Rear connection |
| Device application | Connection |
| Range compatibility | GoPact MCCB 250 |
| Poles description | 4P |
| [In] rated current | 250 A |
| Quantity | 8 |
| Localisation on device | Upstream, Downstream |
|---|---|
| Connection position | Rear connection |
| Length | 105.6 mm, 55.6 mm |
| Warranty (in months) | 18 |
|---|
| Part number | G25RC4P |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.5 cm |
| Package 1 Width | 10.3 cm |
| Package 1 Length | 32.5 cm |
| Package 1 Weight | 1900 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 5 |
| Package 2 Height | 15 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 9.815 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 80 |
| Package 3 Height | 60 cm |
| Package 3 Width | 60 cm |
| Package 3 Length | 80 cm |
| Package 3 Weight | 165.540 kg |
| Shipping weight | 1.9 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for G25RC4P is 853890.
G25RC4P ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
