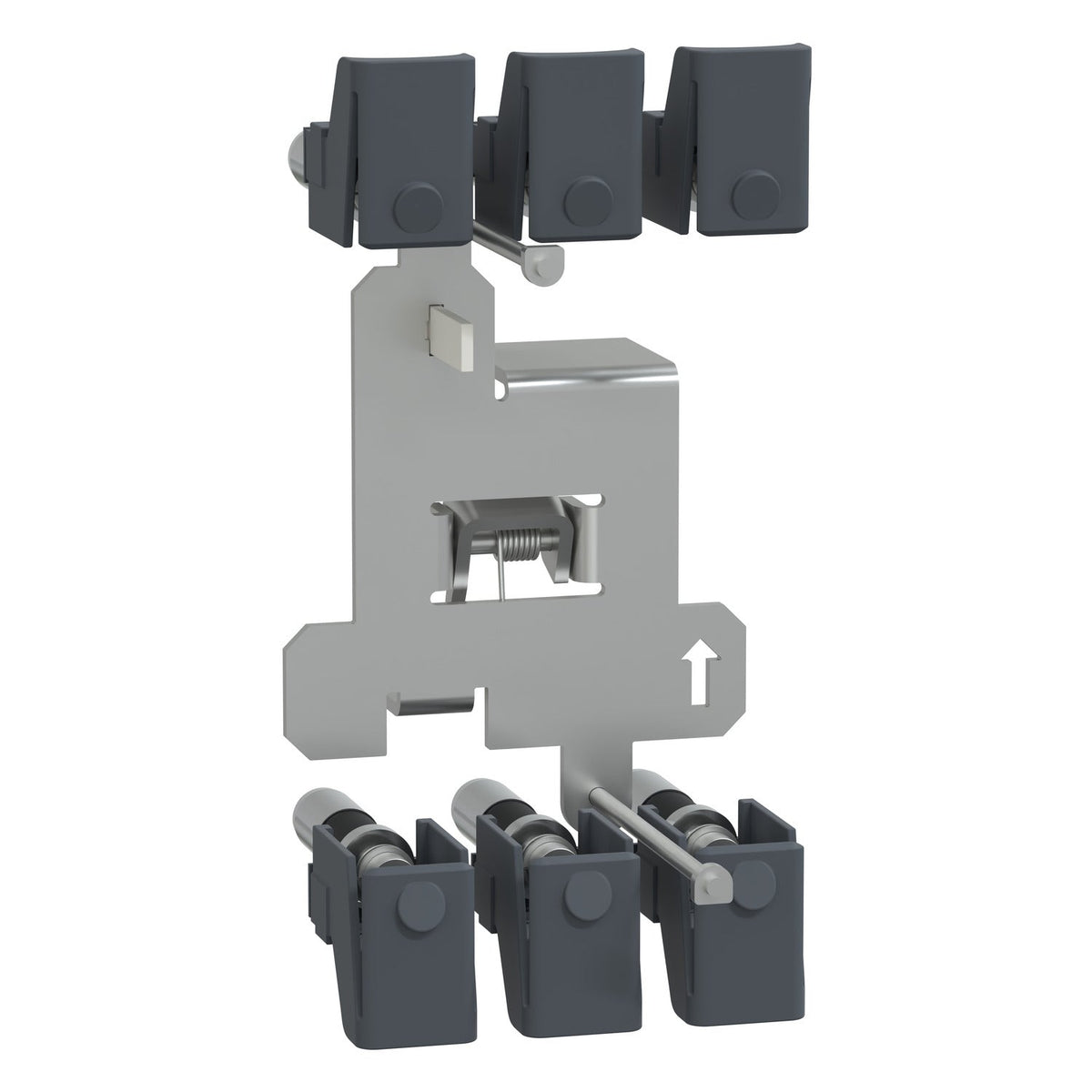

The Schneider Electric G25PLUGKIT3P is a 3-pole plug-in conversion kit for the GoPact MCCB 250, rated for 250 A continuous current. The kit is composed of a safety trip interlock assembly, a gripper and plug contacts, and must be paired with the matching plug-in base to turn a fixed-mount breaker into a withdrawable, plug-in installation. A breaker fitted with this kit can be mounted on a backplate, on rails, or through a front panel.
The G25PLUGKIT3P is the conversion kit, not the base - it fits onto the breaker itself and still needs the matching 3P plug-in base installed in the panel for a complete withdrawable configuration. Its safety trip interlock prevents the breaker being withdrawn while it is closed on load, which matters on a 250 A circuit where unintentional disconnection under load could damage the plug contacts; order the 4P kit instead for a 4-pole GoPact MCCB 250.
| Range of product | GoPact MCCB |
|---|---|
| Product or component type | Plug-in kit |
| Device application | Mounting |
| Range compatibility | GoPact MCCB 250 |
| Poles description | 3P |
| Mounting mode | Plug-in |
|---|---|
| [In] rated current | 250 A |
| Kit composition | Safety trip interlock, Plug, Adaptation kit |
| Warranty (in months) | 18 |
|---|
| Part number | G25PLUGKIT3P |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 9.7 cm |
| Package 1 Width | 17.1 cm |
| Package 1 Length | 28.4 cm |
| Package 1 Weight | 910 g |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 32 |
| Package 2 Height | 60 cm |
| Package 2 Width | 60 cm |
| Package 2 Length | 80 cm |
| Package 2 Weight | 42.660 kg |
| Shipping weight | 0.91 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for G25PLUGKIT3P is 853890.
G25PLUGKIT3P ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
