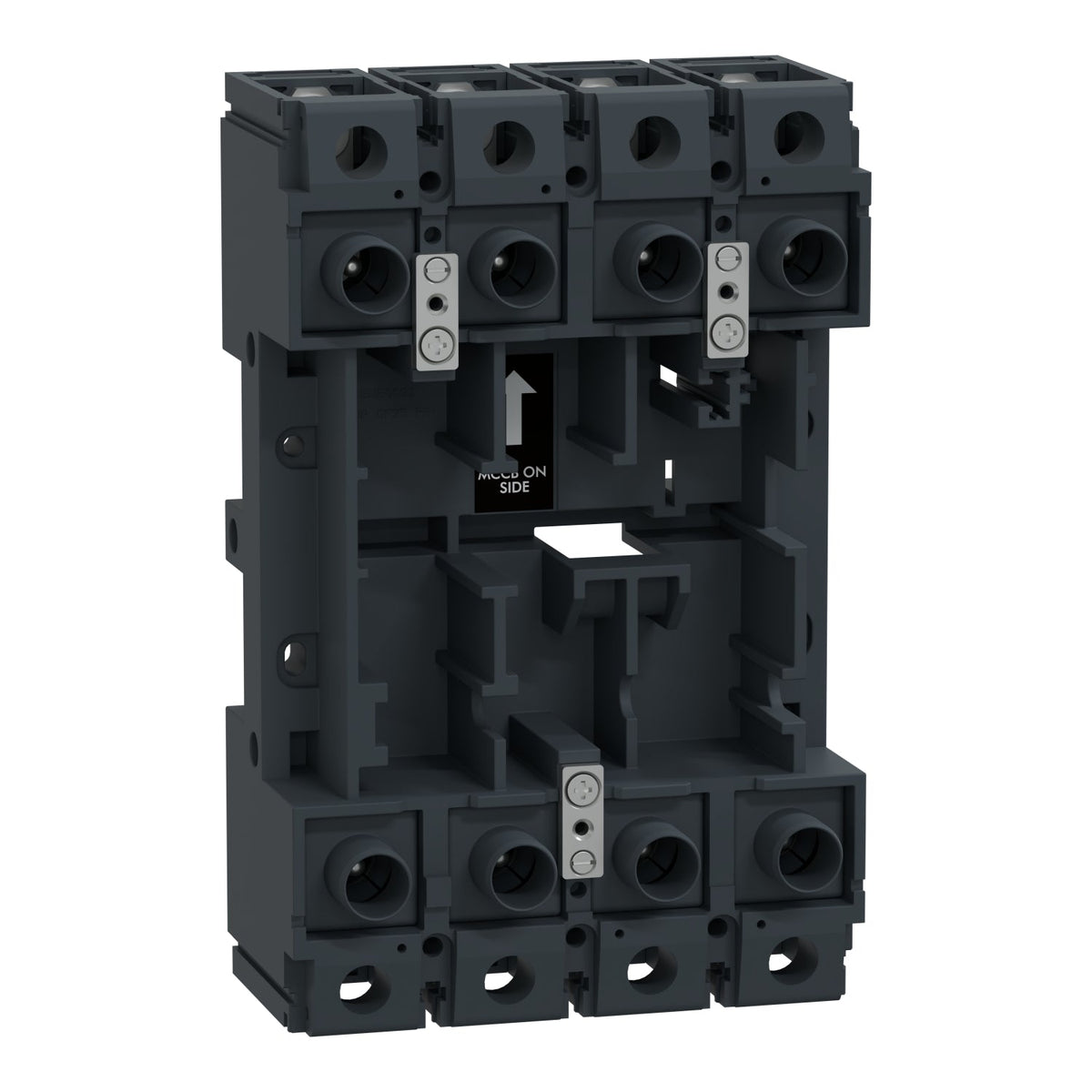

The Schneider Electric G25PBASE4P is a 4-pole plug-in base for the GoPact MCCB 250, rated for 250 A continuous current. It lets the breaker be extracted or rapidly replaced without disturbing the connections on the base, and lets future circuits be prepared by installing a base ahead of the breaker that will occupy it. The base can be mounted on a backplate, on rails, or through a front panel.
The G25PBASE4P base must be paired with the matching 4P plug-in conversion kit to form a complete plug-in configuration - the base alone does not make the breaker withdrawable. Specify it over a fixed-mount installation when the GoPact MCCB 250 is likely to need extraction for maintenance or swap-out without re-wiring the incoming and outgoing conductors; a 3P GoPact MCCB 250 needs the 3P base instead.
| Range of product | GoPact MCCB |
|---|---|
| Product or component type | Plug-in base |
| Device application | Mounting |
| Range compatibility | GoPact MCCB 250 |
| Poles description | 4P |
| Mounting mode | Plug-in |
|---|---|
| [In] rated current | 250 A |
| Warranty (in months) | 18 |
|---|
| Part number | G25PBASE4P |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 15.2 cm |
| Package 1 Width | 17.8 cm |
| Package 1 Length | 29.2 cm |
| Package 1 Weight | 2740 g |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 60 cm |
| Package 2 Width | 60 cm |
| Package 2 Length | 80 cm |
| Package 2 Weight | 46.672 kg |
| Shipping weight | 2.74 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for G25PBASE4P is 853890.
G25PBASE4P ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
