Schneider Electric G20STSHD4P GoPact MCCB 200 Short Terminal Shield 4P IP40 Circuit Breaker Accessory

% $-16.54

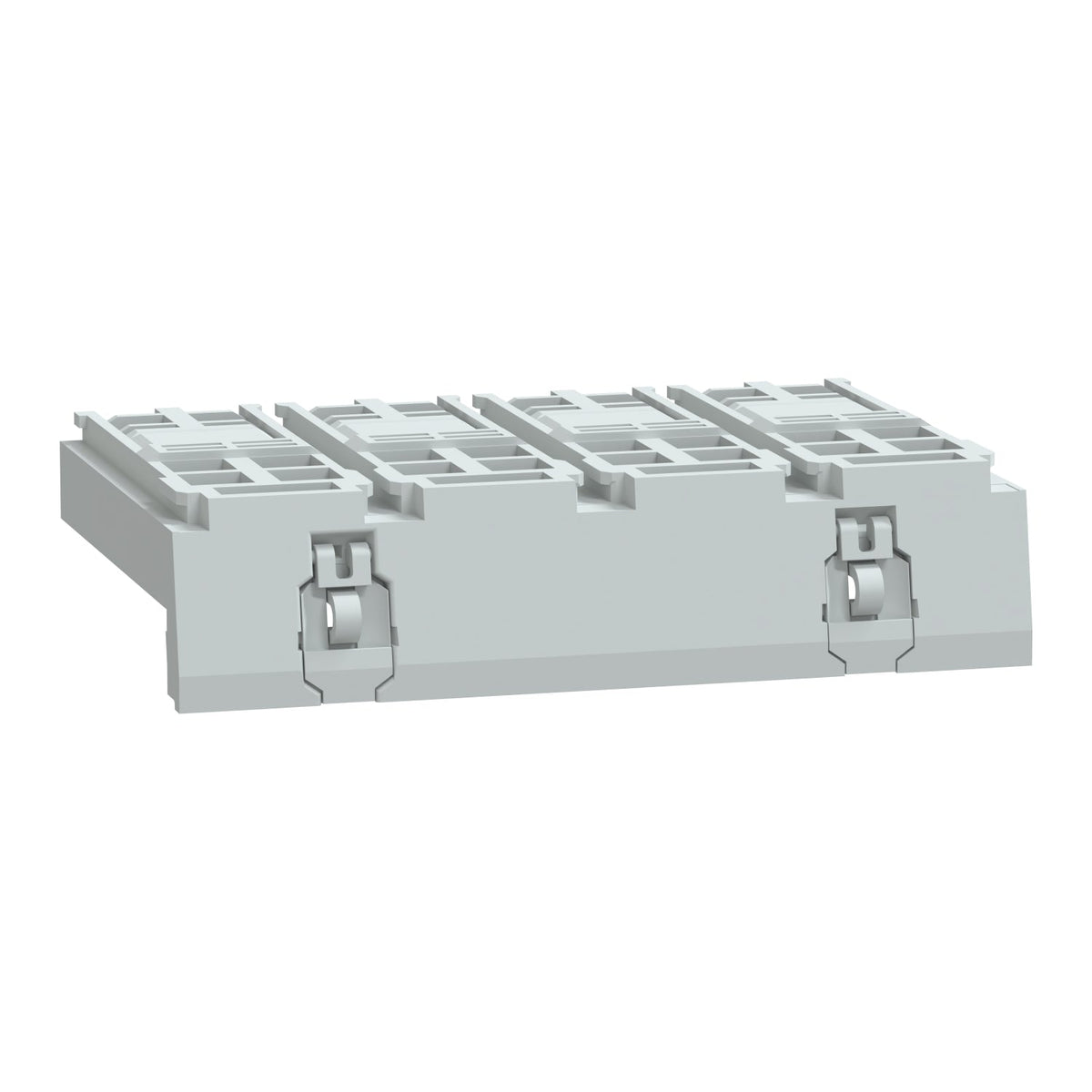

Schneider Electric G20STSHD4P GoPact MCCB 200 short terminal shield 4P
Schneider Electric G20STSHD4P GoPact MCCB 200 short terminal shield 4P

Schneider Electric G20STSHD4P GoPact MCCB 200 Short Terminal Shield 4P IP40 Circuit Breaker Accessory

Brand: Schneider Electric
Reference No: G20STSHD4P
Catalog No: G20STSHD4P
Series: GoPact MCCB
Tariff Code (HS): 853890
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$16.54

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric G20STSHD4P is a 4-pole short terminal shield for the GoPact MCCB 200, used on fixed or plug-in versions fitted with rear connectors. It covers the shorter terminal depth those connectors leave exposed, protecting against direct contact with the power circuit and giving IP40 degree of protection to IEC 60529, and can be mounted upstream or downstream of the breaker.

Technical Specifications

Reference G20STSHD4P
Brand Schneider Electric
Range GoPact MCCB
Product / Component Type Short terminal shield
Device Application Insulation
Compatible Breaker GoPact MCCB 200
Poles 4P
Quantity 2
Localisation on Device Upstream, downstream
IP Degree of Protection IP40, conforming to IEC 60529
Compatible Connections Rear connectors

Selection Notes

Fit the G20STSHD4P rather than the long terminal shield when the 4-pole GoPact MCCB 200 is wired with rear connectors, since the shorter shield length matches that connector's reduced terminal reach - the long shield is sized for spreaders or bare cable connectors instead. It is specific to the 4P configuration on the 200 frame; a 3P GoPact MCCB 200 needs the matching 3P shield.

Technical Details

Short Description
Schneider Electric G20STSHD4P short terminal shield for GoPact MCCB 200, 4P, IP40 degree of protection.
Mounting Type
Clip-on
Protection Type
IP40
Catalog No
G20STSHD4P
Delivery Date (Days)
30 days
Model Number
Short Terminal Shield
Tariff Code
853890
